HP DESIGNJET T120
Microsoft Windows 10 (64-bit)

Good morning

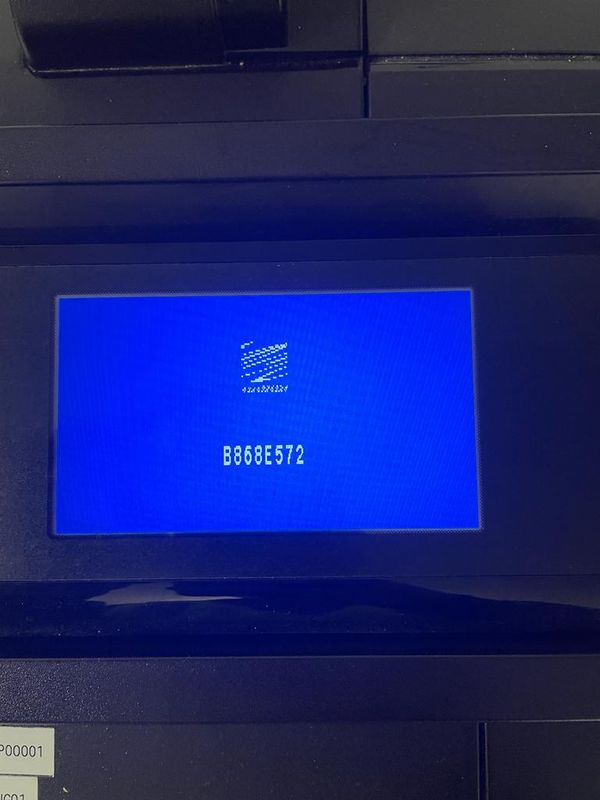

Our T120 plotter is displaying a blue screen with a code: B868E572. It was working perfectly the day before, we turned it off and the next day when attempting to turn it on this message appeared in the display.






1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

This is caused by either a failed USB firmware stick (common) or a failed formatter (not so common)



Always best to replace the firmware first as it is the least expensive part. CQ890-67105



If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



View solution in original post

2 REPLIES 2
HP Recommended

This is caused by either a failed USB firmware stick (common) or a failed formatter (not so common)



Always best to replace the firmware first as it is the least expensive part. CQ890-67105



If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



HP Recommended

Thank you, I will try to get an usb firmware stick from the HP Store from my country, or in worst case I will have to create it myself.
