Front panel audio connector - what plug type to use for headphone and microphone

HP Recommended
HP EliteDesk 800 G2 Small Form
Microsoft Windows 7 (64-bit)

Hi

I am trying to determine which type of 3.5mm audio plug to put into the front panel connector for using headphone with a microphone to do video communications.



could be - sleeve, ring and tip (mono sound and microphone)

or

could be - sleeve, ring, ring, and tip (stereo sound and microphone)



Have read through the manuals and nothing is said about which type audio connectors.pdfto use.

6 REPLIES 6
banhien
Level 19
Level 19
90,587 90,464 11,638 24,935
Message 2 of 7
Flag Post
HP Recommended

Hi,

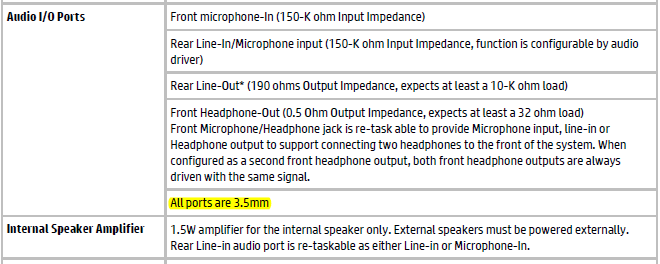

I can't see your image but probably you can see mine









(a) All standard 3.5mm (stereo) headphones will fit and work.

(b) For the second port on the right, all standard 3.5mm headsets will fit and work. Its default is for microphone, all standard 3.5mm mono microphones will fit and work.



Note: probably around 95% of 3.5mm headphones and microphones on the market now are normal/standard.



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.



0 Kudos
Wires
Author
Level 1
4 3 1 0
Message 3 of 7
Flag Post
HP Recommended

Hi BH

So it looks like you are saying the the plug needs to be sleeve - ring and tip to be mono earphones and microphone and not sleeve - ring - ring and tip as most cell (mobile - Australia) phones are.

Three contact instead of four contact - Yes?????

Wires



0 Kudos
banhien
Level 19
Level 19
90,587 90,464 11,638 24,935
Message 4 of 7
Flag Post
HP Recommended

Hi,



You can go to JB HiFi and ask them or look at these



1. Headphones:



            Stereo 3.5mm Gold Jack Socket to 6.35mm Plug Headphone Earphone Adaptor



2. Headsets :



    Evolve Jackstick



3. Probably you already know the mono plug



Regards.









BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.



0 Kudos
Wires
Author
Level 1
4 3 1 0
Message 5 of 7
Flag Post
HP Recommended

front panel connectors.png

Is the #5 connector a 3.5mm three or four pole???

0 Kudos
banhien
Level 19
Level 19
90,587 90,464 11,638 24,935
Message 6 of 7
Flag Post
HP Recommended

Hi,



Your image is not the same as mine. Anyway, port #5 is for Microphone and headphones and it will ask you which one to plug in (stereo line-in/microphone or headphones). They use normal stereo 3.5mm which is



                 Stereo 3.5mm Gold Jack Socket to 6.35mm Plug Headphone Earphone Adaptor



Or 3 pole.



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.



0 Kudos
Wires
Author
Level 1
4 3 1 0
Message 7 of 7
Flag Post
HP Recommended

Hi Everyone



Just plugged in the 4 pole connector on my combination microphone/headphones for my mobile (cell) phone and the pop-up box wanted me to select either headphone or microphone - no selection for both.

Looks like the right socket is for headphone only and the left one is for either headphone or microphone - user selectable and not for both on the one plug.

All explained by doing - but not by the paperwork in the manuals.



#5 is for either microphone or headphones - pop-up menu appears after a 3.5 mm plug is inserted to select which one but not both at the same time.  (So I cannot use my phone headset)
