Issue booting from Samsung 870EVO Sata SSD on HP 510-p030

HP Recommended
HP Pavilion Desktop - 510-p030
Microsoft Windows 10 (64-bit)

EDITED: Note of clarification, I want to hook up the ssd to the motherboard, I don't want to boot and run from the USB port!



I wanted to upgrade my hard drive on my 510-p030 from a sata platter to a sata SSD. I bought the Samsung 870EVO and attached it to an external hard drive adapter and plugged it in via USB. I downloaded and ran the Samsung Data Migration Software and it saw my hard drive and the new 870EVO just fine. When it was done I hooked the connectors from the old drive to the 870 and when I power on I instantly get a black screen with processor type, speed, memory info, bios 81B4 vF.38. It says press the ESC key for the Startup Menu. When you do that, Startup Menu text appears on the bottom right but then NOTHING happens no matter what you press.



It black screens with just the 870 ssd installed and when both old and new drives are installed via motherboard (Hamar) cables. If I connect the 870 back up to the external reader, it boots on the old drive fine and I can use windows browser to see the new drive an all my data is there.



Why can't I boot off the 870EVO !!??



Thanks, Joe.

1 ACCEPTED SOLUTION

Accepted Solutions
Prométhée
Level 16
11,361 11,211 1,157 3,655
Message 14 of 15
Flag Post
HP Recommended

@Prométhée wrote:

hi

I had run into a problem like this..
See if it helps, I didn't re-read the whole thread.
There seems to be a problem with the bios update.

https://h30434.www3.hp.com/t5/Desktop-Boot-and-Lockup/HP-blocking-SSD-upgrades-with-newer-systems-an...

Several months ago, I swapped a customer's HP 260-p121nd harddrive with a Samsung 850 EVO 250GB SSD which was working great with Windows 10.

A week ago, the customer returned; the computer had performed a biosupdate (F.34) and since then, would not start Windows anymore and got stuck displaying the HP logo at boot.

https://support.hp.com/hr-en/document/c05348560

Hamar motherboard specifications.

https://support.hp.com/us-en/product/hp-pavilion-510-p000-desktop-pc-series/10734566/model/11715774/...

From memory, I don't know if in the links here, but users have mentioned models that work without problems
So to see, but it may be the only solution








@colsar  if nothing work , you can't even restart from a new windows installation:
try microsoft media

https://www.microsoft.com/fr-fr/software-download/windows10


I invite you to re-read the topics given, and the links included in the topics
I quickly read again and it seems that there is a problem with this motherboard, bios version, and certain SSD models

I could not read everything, and not see if a solution exists for this specific model, but it works perfectly with other models!



FrankInSF

Please see the thread in this forum called

Pavilion 510-p020 won't POST or boot with BIOS 81B4 F.37 and Samsung or Crucial SSD

for more about this and that a Kingston A400 SSD worked for me.

https://h30434.www3.hp.com/t5/Desktop-Boot-and-Lockup/Pavilion-510-p020-won-t-POST-or-boot-with-BIOS...



--------------------------------------------- Signature ---------------------------------------------
Please remember to mark the answers this can help other users
please click on the accept as solution button if message provided an answer to the problem

was this reply helpful , or just say "thank you " ? Click on the yes button
Attention
A bios update is not without risk!
Be aware that if you are offered to do so, it will be at your own risk, the computer may become unusable, think about it



Desktop-Knowledge-Base
------------------------------------------------------------------------------------------------------------

View solution in original post

Was this reply helpful? Yes No
14 REPLIES 14
NonSequitur777
Level 9
2,314 2,305 281 742
Message 2 of 15
Flag Post
HP Recommended

@colsar,



Welcome to our HP User Forum!



This appears to be a BIOS boot sequence issue.



Please see this link: https://support.hp.com/us-en/document/c04346420#:~:text=Press%20F9%20to%20open%20the,enable%20Legacy....



Hope this was helpful.



Kind Regards,



NonSequitur777

Dear fellow Forum member, I sincerely hope my response is helpful. If it is, please consider to click "YES" on the: "Was this reply helpful?" button. If my response answered your question, please indicate below as an "Accepted Solution".
Was this reply helpful? Yes No
NonSequitur777
Level 9
2,314 2,305 281 742
Message 3 of 15
Flag Post
HP Recommended

@colsar,



This is what I would suggest you do.  Power off your HP Pavilion Desktop - 510-p030 desktop. Unplug your Samsung USB connection. Then push the power button on and immediately tap F10 repeatedly. Follow on-screen key navigation guide and go into advanced, then down to change the boot order. make sure USB is the first one on top. Save and exit, plug in your Samsung USB and it should detect it and boot from it.



Here are more detailed instructions/guide if needed: https://support.hp.com/us-en/document/c00364979.



Kind Regards,



NonSequitur777

Dear fellow Forum member, I sincerely hope my response is helpful. If it is, please consider to click "YES" on the: "Was this reply helpful?" button. If my response answered your question, please indicate below as an "Accepted Solution".
Was this reply helpful? Yes No
Prométhée
Level 16
11,361 11,211 1,157 3,655
Message 4 of 15
Flag Post
HP Recommended

hi

I had run into a problem like this..
See if it helps, I didn't re-read the whole thread.
There seems to be a problem with the bios update.

https://h30434.www3.hp.com/t5/Desktop-Boot-and-Lockup/HP-blocking-SSD-upgrades-with-newer-systems-an...

Several months ago, I swapped a customer's HP 260-p121nd harddrive with a Samsung 850 EVO 250GB SSD which was working great with Windows 10.

A week ago, the customer returned; the computer had performed a biosupdate (F.34) and since then, would not start Windows anymore and got stuck displaying the HP logo at boot.

https://support.hp.com/hr-en/document/c05348560

Hamar motherboard specifications.

https://support.hp.com/us-en/product/hp-pavilion-510-p000-desktop-pc-series/10734566/model/11715774/...

From memory, I don't know if in the links here, but users have mentioned models that work without problems
So to see, but it may be the only solution







--------------------------------------------- Signature ---------------------------------------------
Please remember to mark the answers this can help other users
please click on the accept as solution button if message provided an answer to the problem

was this reply helpful , or just say "thank you " ? Click on the yes button
Attention
A bios update is not without risk!
Be aware that if you are offered to do so, it will be at your own risk, the computer may become unusable, think about it



Desktop-Knowledge-Base
------------------------------------------------------------------------------------------------------------
Was this reply helpful? Yes No
colsar
Author
Level 1
8 6 0 0
Message 5 of 15
Flag Post
HP Recommended

NonSequitur777 - Hi, those are windows 8 instructions. Are they the same for W10?

Was this reply helpful? Yes No
NonSequitur777
Level 9
2,314 2,305 281 742
Message 6 of 15
Flag Post
HP Recommended

@colsar,



Thank you for the clarification in your original message -that helps a lot.



All right, may I assume that you 'cloned' your original boot drive using either Samsung's Magician or the freeware Macrium Reflect software?



Because if this is the case, all you should do is remove the 'old' drive, and install your new drive -easy peasy.



Should run/boot A-OK from the get-go.



Are you saying the new drive doesn't work?



Kind Regards,



NonSequitur777

Dear fellow Forum member, I sincerely hope my response is helpful. If it is, please consider to click "YES" on the: "Was this reply helpful?" button. If my response answered your question, please indicate below as an "Accepted Solution".
Was this reply helpful? Yes No
NonSequitur777
Level 9
2,314 2,305 281 742
Message 7 of 15
Flag Post
HP Recommended

@colsar,



In order to clone your original drive to a new (SSD) drive, you'll need this temporary tool:

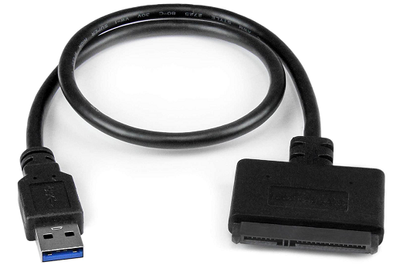

This is a USB to SATA adapter.



You hook the USB 3.x into your PC, and the new drive at the data/15-pin SATA end of the adapter.



You bought a quality Samsung SSD, and the Magician or Macrium Reflect Free software should 'see' the attached drive, and you should be able to proceed to clone it.



Upon successful completion of the cloning, power off your PC, remove the USB to SATA adapter, take out the new drive, remove the old drive, and install the newly cloned drive.



Kind Regards,



NonSequitur777

Dear fellow Forum member, I sincerely hope my response is helpful. If it is, please consider to click "YES" on the: "Was this reply helpful?" button. If my response answered your question, please indicate below as an "Accepted Solution".
Was this reply helpful? Yes No
NonSequitur777
Level 9
2,314 2,305 281 742
Message 8 of 15
Flag Post
HP Recommended

@colsar,



And yes, there is not much difference between W8 and W10 instructions.



Kind Regards,



NonSequitur777

Dear fellow Forum member, I sincerely hope my response is helpful. If it is, please consider to click "YES" on the: "Was this reply helpful?" button. If my response answered your question, please indicate below as an "Accepted Solution".
Was this reply helpful? Yes No
colsar
Author
Level 1
8 6 0 0
Message 9 of 15
Flag Post
HP Recommended

NonSequitur777 - Hi, yes that is exactly how I cloned it. When I power on the computer though with it attached to the motherboard instead of the usb adapter, I get a black screen and can't go further.

Was this reply helpful? Yes No
colsar
Author
Level 1
8 6 0 0
Message 10 of 15
Flag Post
HP Recommended

NonSequitur777 - I used the Samsung Magician Data Migration Software. When I power on with the new drive attached to the mother board cable, I get a black screen and can't go any further. If I put the new drive back on to the usb adapter it boots fine off the original drive and I can see the new drive and all the data just fine.

Was this reply helpful? Yes No
