PCI and unknown device driver update

HP Recommended
Pavilion x360
Microsoft Windows 10 (64-bit)

Hi,



I have a laptop HP Pavilion x360. On device manager under other devices the PCI's and unknown devices shows that drivers are missing, when i try to update them it says drivers are not installed.

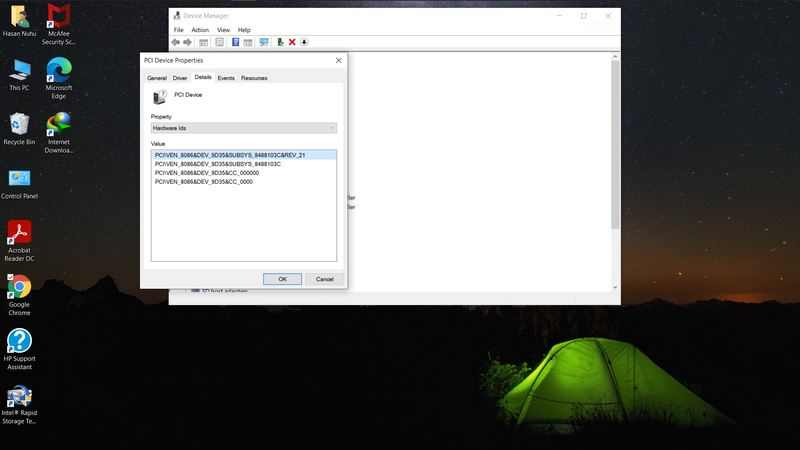

Attached are some screen shots that i hope will be useful.



I have a Windows 10 Home 64 bit.



Please can someone help me find the right drivers for these devices?



Thank youScreenshot (2).pngScreenshot (3).pngScreenshot (4).png

1 ACCEPTED SOLUTION

Accepted Solutions
Paul_Tikkanen
Level 21
Level 21
143,851 67,415 22,590 34,692
Message 4 of 15
Flag Post
HP Recommended

Hi:



Here are the links to most of the drivers you need for your HP Pavilion x360 - 15-cr0037wm.



First install the Intel chipset driver and restart the PC.  That should install one of the PCI Acquisition and ... and one of the unknown devices.



https://ftp.hp.com/pub/softpaq/sp101001-101500/sp101171.exe



Then this driver will install the other PCI Acquisition...and another unknown driver...



Intel Dynamic Platform and Thermal Framework Driver



https://ftp.hp.com/pub/softpaq/sp95001-95500/sp95216.exe



This driver should install the PCI device...



Realtek Card Reader Driver



https://ftp.hp.com/pub/softpaq/sp111001-111500/sp111336.exe



After you install the above drivers, there will probably be some left.



For those, please post the hardware ID's for the remaining devices that need drivers.



Use this guide for how to find the hardware ID for a device...



How to Find Drivers for Unknown Devices in the Device Manager (howtogeek.com)

View solution in original post

Was this reply helpful? Yes No
14 REPLIES 14
Paul_Tikkanen
Level 21
Level 21
143,851 67,415 22,590 34,692
Message 2 of 15
Flag Post
HP Recommended

Hi:



What is the product number of your notebook?



Use this guide to find that information...please do not post the serial number.



HP Notebook PCs - How Do I Find My Product Name or Number? | HP® Customer Support

Was this reply helpful? Yes No
h_0n3
Author
Level 1
7 6 0 2
Message 3 of 15
Flag Post
HP Recommended

Hello!



This is the product number 4ND14UA#ABA.

Was this reply helpful? Yes No
Paul_Tikkanen
Level 21
Level 21
143,851 67,415 22,590 34,692
Message 4 of 15
Flag Post
HP Recommended

Hi:



Here are the links to most of the drivers you need for your HP Pavilion x360 - 15-cr0037wm.



First install the Intel chipset driver and restart the PC.  That should install one of the PCI Acquisition and ... and one of the unknown devices.



https://ftp.hp.com/pub/softpaq/sp101001-101500/sp101171.exe



Then this driver will install the other PCI Acquisition...and another unknown driver...



Intel Dynamic Platform and Thermal Framework Driver



https://ftp.hp.com/pub/softpaq/sp95001-95500/sp95216.exe



This driver should install the PCI device...



Realtek Card Reader Driver



https://ftp.hp.com/pub/softpaq/sp111001-111500/sp111336.exe



After you install the above drivers, there will probably be some left.



For those, please post the hardware ID's for the remaining devices that need drivers.



Use this guide for how to find the hardware ID for a device...



How to Find Drivers for Unknown Devices in the Device Manager (howtogeek.com)

Was this reply helpful? Yes No
h_0n3
Author
Level 1
7 6 0 2
Message 5 of 15
Flag Post
HP Recommended

Hello!



I really appreciate your response and assistance. Here are the remaining ones.



Thanks PCI  Data Acquisition and Signal Processing ControllerPCI Data Acquisition and Signal Processing ControllerPCI DevicePCI DevicePCI Simple Communications ControllerPCI Simple Communications ControllerUnknown DevicesUnknown Devices

Was this reply helpful? Yes No
Paul_Tikkanen
Level 21
Level 21
143,851 67,415 22,590 34,692
Message 6 of 15
Flag Post
HP Recommended

You're very welcome.



Here are the links to the rest of the drivers you need...



PCI Data Acquisition and Signal Processing Controller:  Though I'm not sure why the driver I gave you yesterday didn't work...



https://ftp.hp.com/pub/softpaq/sp100001-100500/sp100093.exe



PCI Device



https://ftp.hp.com/pub/softpaq/sp100001-100500/sp100139.exe



PCI Simple Communications Controller



https://ftp.hp.com/pub/softpaq/sp110001-110500/sp110054.exe



Unknown Device:



https://ftp.hp.com/pub/softpaq/sp92501-93000/sp92971.exe

Was this reply helpful? Yes No
h_0n3
Author
Level 1
7 6 0 2
Message 7 of 15
Flag Post
HP Recommended

As regard to the PCI's there was an error after each of them finished installing.Error for PCI DevicesError for PCI Devices

Was this reply helpful? Yes No
Paul_Tikkanen
Level 21
Level 21
143,851 67,415 22,590 34,692
Message 8 of 15
Flag Post
HP Recommended

Hi:



Try this driver for the 9D27 (the first screenshot...



https://ftp.hp.com/pub/softpaq/sp100001-100500/sp100187.exe



For the PCI device try manually installing the driver as follows...



Go to the device manager.  Click on the PCI device needing the driver.



Click on the driver tab.  Click on Update driver.



Select the 'Browse my computer for drivers' option, and browse to the driver folder that was created when you ran the file.



That folder will be located in C:\SWSetup\sp100139.



Make sure the Include  subfolders box is checked and see if the driver installs that way.



Here is a partial copy and paste of the driver setup information file which shows driver support for that hardware ID...



[Intel.NTamd64.6.1]
; DisplayName Section DeviceId
%TEE_DeviceDesc%=TEE_DDI, PCI\VEN_8086&DEV_9D35 ;SKL, KBL U/Y/R; AML
%TEE_DeviceDesc%=TEE_DDI, PCI\VEN_8086&DEV_A135 ;SKL, KBL H



Then do the same thing for the PCI Simple Comms Controller but browse to C:\SWSetup\sp110054.



Here is a partial copy and paste of the driver setup information file which shows driver support for that hardware ID...



[Intel.NTamd64.10.0...16299]
; DisplayName Section DeviceId
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_9CBA ;ME10.x - BDW/WPT-LP
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_9D3A ;ME11.x - SKL/SPT-LP, KBL/SPT-LP
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_A13A ;ME11.0 - SKL/SPT-H
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_A2BA ;ME11.6 - KBL/KBP-S
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_A1BA ;ME11.x - Purley WS SKL/LBG - Production
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_A23A ;ME11.x - Purley WS SKL/LBG - PreProduction
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_9DE0 ;ME12.0 - CNL/CNP-LP
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_A360 ;ME12.0 - CNL-H
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_3DE0 ;ME13.0 - ICL-H
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_34E0 ;ME13.0 - ICL-LP
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_38E0 ;ME13.0 - ICL-LP
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_4DE0 ;ME13.50 - JSP
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_18D3 ;ME13.0 - CDF
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_02E0 ;ME14.0 - CML
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_06E0 ;ME14.0 - CML
%TEE_DeviceDesc%=TEE_DDI_x64, PCI\VEN_8086&DEV_A3BA ;ME14.x - CML-V

Was this reply helpful? Yes No
h_0n3
Author
Level 1
7 6 0 2
Message 9 of 15
Flag Post
HP Recommended

Hi

Thank you so much for everything.

The only device left is the PCI Data Acquisition, it's proven stubborn 😁HP System InformationHP System InformationPCI Data Acquisition folderPCI Data Acquisition folder anyway i think you forgot to include the manual installation folder for me, because the manual install was what resolved the other two.

Also if you can help me on this other one ''HP System Information'' won't install.

Any idea about it?



Thanks

Was this reply helpful? Yes No
Paul_Tikkanen
Level 21
Level 21
143,851 67,415 22,590 34,692
Message 10 of 15
Flag Post
HP Recommended

You're most welcome.



If you want to try manually installing the driver for the very stubborn PCI Data Acquisition device, you browse to C:\SWsetup\sp100093.



As far as the HP System Information software, unfortunately, I wouldn't be able to help you with that.



What you could try as an alternative, is to see if you can install the HP System Event Utility, which is basically the same thing.



This package contains the HP System Event Utility, which enables special function keys on supported notebook models to be programmed. For example, HP System Event Utility enables users to press the Fn+ESC keys to view system information. This package is provided for the supported computer models running a supported operating system.



https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101543.exe

Was this reply helpful? Yes No
