Power Connector on Slim DVDRW

Pavilion 550-130
Microsoft Windows 10 (64-bit)

I changed my power supply with a New Rosewill, I am having one problem, The power supply did not come with one of the connectors that I need, I need to buy an adapter, but do not know the name of this connector, it is the connector that provides power to the DVDRW drive, it looks like a regular SATA connector, but is much smaller, looks to only have 7 pins, ang it has the L shape like a SATA connector, anybody know what this is called?

I need to buy an adapter that can connect this to Molex



Thanks in Advance

11 REPLIES 11
Distinguished Professor
Distinguished Professor
2360 2354 469 750
Message 2 of 12
6,009
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

Reply
0 Kudos
orlenz Tutor
Tutor
8 6 1 6
Message 3 of 12
6,007
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

Thats the one, Thanks for the help, now I can order one

orlenz Tutor
Tutor
8 6 1 6
Message 4 of 12
5,996
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

Oh, loking at it closer, thats not the one, very close, but the small connector on that one it wider and looks like it has 2 sets of pins, Power and Data? mine is only the power I guess, not as wide

Reply
0 Kudos
orlenz Tutor
Tutor
8 6 1 6
Message 5 of 12
5,992
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

I shouldnt have poosted without a picture, I will take one tonight when I get home and upload it here

Distinguished Professor
Distinguished Professor
2360 2354 469 750
Message 6 of 12
5,984
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

 OK




Reply
0 Kudos
orlenz Tutor
Tutor
8 6 1 6
Message 7 of 12
5,973
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

Thats close but still not it, I uploaded a photo, but it needs to be aproved, the power supply I bought is one of those rosewill modular ones, and I have an extra cable left over, I wont use the old one so I'm thinking I might just solder the original connector onto the extra cord, just need to figure out the wire configuration

Reply
0 Kudos
orlenz Tutor
Tutor
8 6 1 6
Message 8 of 12
5,964
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

The one on the left is the one I am trying to identify, it is next to a regular 15 pin Sata connector for size reference




Distinguished Professor
Distinguished Professor
2360 2354 469 750
Message 9 of 12
5,962
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

Reply
0 Kudos
orlenz Tutor
Tutor
8 6 1 6
Message 10 of 12
5,958
Flag Post
HP Recommended

Solved!

Power Connector on Slim DVDRW

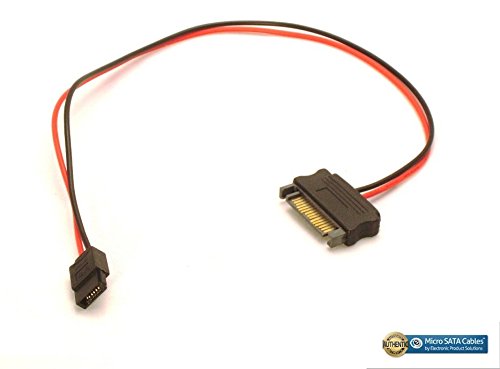

I found one on amazon its called 6 Pin Slimline SATA 15 Pin SATA Power Cable,
