Z210 Workstation will not boot from USB

My Z210 Workstation will not boot from a USB thumb drive. I know the drive is properly formatted and bootable, because I've booted another PC from it. I have the following relevant BIOS settings:



  • Removeable Media Boot: Enable
  • EFI Boot Order:
  •   USB Hard Drive
  •   USB Floppy/CD
  •   ATAPI CD-ROM Drive
  •   Other
  • Legacy Boot Order:
  •   USB Floppy/CD
  •   Hard Drive
  •   ATAPI CD-ROM Drive
  • Lock Legacy Resources: Disable
  • All USB Ports are enabled

When I boot up with the USB thumb drive in a USB port (and I've tried all of them), none of the USB choices (either EFI or Legacy) show up in the boot menu; however if I enter BIOS setup the device is there, so it is being detected. Any ideas?

15 REPLIES 15
Highlighted
Level 17
Level 17
47,068 41,321 4,510 11,805
Message 2 of 16
18,817
Flag Post
HP Recommended

Z210 Workstation will not boot from USB

Is this at work?



It may be disabled in group policies if it is on a network.




I am not an HP Employee.
You can click on Accept as Solution if my post or reply was the information you were looking for that helped you resolve your issue.
You can say thanks by giving me a Kudo if my reply helped. To give a Kudo just click on the


#HelpStopTheSpread #PracticeSocialDistancing distancing
0 Kudos
Highlighted
New member
6 5 0 0
Message 3 of 16
18,813
Flag Post
HP Recommended

Z210 Workstation will not boot from USB


@erico wrote:

Is this at work?



It may be disabled in group policies if it is on a network.


It is at work, but how can Windows group policies apply when Windows isn't running (i.e. when I'm cold booting the workstation)? In addition, I have full admin rights on the workstation. I can install anything, the BIOS setup isn't locked down, etc.

0 Kudos
Highlighted
Level 17
Level 17
47,068 41,321 4,510 11,805
Message 4 of 16
18,809
Flag Post
HP Recommended

Z210 Workstation will not boot from USB

Check to see if there is a secure boot option in BIOS. Disable it.



I am not an HP Employee.
You can click on Accept as Solution if my post or reply was the information you were looking for that helped you resolve your issue.
You can say thanks by giving me a Kudo if my reply helped. To give a Kudo just click on the


#HelpStopTheSpread #PracticeSocialDistancing distancing
0 Kudos
Highlighted
New member
6 5 0 0
Message 5 of 16
18,805
Flag Post
HP Recommended

Z210 Workstation will not boot from USB


@erico wrote:
Check to see if there is a secure boot option in BIOS. Disable it.

The only options even remotely resembling that are:



  • Removeable Media Boot: Enabled
  • Activate Embedded Security on Next Boot: Disabled
  • OS Management of Embedded Security Device: Disabled



0 Kudos
Highlighted
Level 17
Level 17
47,068 41,321 4,510 11,805
Message 6 of 16
18,791
Flag Post
HP Recommended

Z210 Workstation will not boot from USB

Are you trying to boot an OS like Ubuntu?



Have you tried a different usb flash disk?



Some PCs are just not compatible with some usb media.

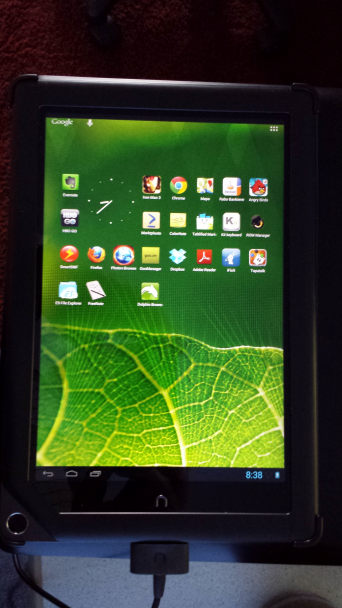

I have experienced the same issue with my Nook HD+. In order to be able to boot android CM10 in  a dual boot configuration with the Nook OS, amongst my collection of microSDHC cards, only a Samsung 8GB card will work. I tried with 16Gb and 32 GB class 6  and 10 cards of varying manufacturers, but so far it has been futile.







I am not an HP Employee.
You can click on Accept as Solution if my post or reply was the information you were looking for that helped you resolve your issue.
You can say thanks by giving me a Kudo if my reply helped. To give a Kudo just click on the


#HelpStopTheSpread #PracticeSocialDistancing distancing
0 Kudos
Highlighted
New member
6 5 0 0
Message 7 of 16
18,779
Flag Post
HP Recommended

Z210 Workstation will not boot from USB


@erico wrote:

Are you trying to boot an OS like Ubuntu?



Have you tried a different usb flash disk?



Some PCs are just not compatible with some usb media.



I have experienced the same issue with my Nook HD+. In order to be able to boot android CM10 in  a dual boot configuration with the Nook OS, amongst my collection of microSDHC cards, only a Samsung 8GB card will work. I tried with 16Gb and 32 GB class 6  and 10 cards of varying manufacturers, but so far it has been futile.




I've tried multiple thumb drives of multiple sizes and various speeds, with no success. I can't believe nobody else has encountered this problem.

0 Kudos
Highlighted
Level 17
Level 17
47,068 41,321 4,510 11,805
Message 8 of 16
18,765
Flag Post
HP Recommended

Z210 Workstation will not boot from USB

You seem to want answers, but don't seem to be willing to answer pertinent questions.

The support forum works well if information flows two ways.



I am not an HP Employee.
You can click on Accept as Solution if my post or reply was the information you were looking for that helped you resolve your issue.
You can say thanks by giving me a Kudo if my reply helped. To give a Kudo just click on the


#HelpStopTheSpread #PracticeSocialDistancing distancing
Highlighted
New member
6 5 0 0
Message 9 of 16
18,747
Flag Post
HP Recommended

Z210 Workstation will not boot from USB


@erico wrote:
You seem to want answers, but don't seem to be willing to answer pertinent questions.

The support forum works well if information flows two ways.

Excuse me? I have answered every question you have asked. In response, you gave me some completely unrelated information about booting a Nook tablet, which has nothing to do with an HP workstation.

0 Kudos
Highlighted
New member
1 1 0 0
Message 10 of 16
18,461
Flag Post
HP Recommended

Z210 Workstation will not boot from USB

You’re not the only one. Same problem here. I’ve also tried different sizes and brands of USB sticks. I suppose it’s possible that all of them just happen to be ones that won’t boot with this system, but I don’t have problems booting other systems with the same sticks.
0 Kudos
