Prométhée
Views : 730
No ratings

Hello
here my old hp from 2013 unfortunately Hp removed the product page

https://support.hp.com/us-en/product/hp-pavilion-hpe-h9-1200-phoenix-desktop-pc-series/5258492/model...

 from the series, only a few models still referenced here (hp seems to be ahead of its ten-year policy)

https://support.hp.com/us-en/product/hp-pavilion-hpe-h9-1200-phoenix-desktop-pc-series/5258492/produ...

it seems that the motherboard page is only here 🤔

IPMMB-FM (Formosa)

Socket Type: LGA 1155 (Socket-H2)
The motherboard supports the following processor upgrades:

Intel Core i3-3xxxT (Ivy Bridge) Dual Core 35 W
Intel Core i3-3xxx (Ivy Bridge) Dual Core 55 W
Intel Core i5-3xxxK (Ivy Bridge) Quad Core 75w
Intel Core i5-3xxxT (Ivy Bridge) Dual Core 35w
Intel Core i5-3xxxT (Ivy Bridge) Quad Core 45w
Intel Core i5-3xxxS (Ivy Bridge) Quad Core 65w
Intel Core i5-3xxxP (Ivy Bridge) Quad Core (Onboard Graphics) 69w
Intel Core i5-3xxx (Ivy Bridge) Quad Core 77w
Intel Core i7-3xxx (Ivy Bridge) Quad Core 77w
Intel Core i7-3xxxK (Ivy Bridge) Quad Core 77w
Intel Core i3-2xxx (Sandy Bridge) Dual Core 65w
Intel Core i3-2xxxT (Sandy Bridge) Dual Core 35w
Intel Core i5-2xxx (Sandy Bridge) Quad Core 95w
Intel Core i7-2xxx (Sandy Bridge) Quad Core 95w
Intel Pentium G6xx (Sandy Bridge) Dual Core 65w
Intel Pentium G6xxT (Sandy Bridge) Dual Core 35w
Intel Pentium G8xx (Sandy Bridge) Dual Core 65w



Dual-channel memory architecture

Four 240-pin DDR3 DIMM sockets

Do the following:

PC3-10600 (DDR3-1333)

PC3-12800 (DDR3-1600)

Non-ECC memory only, no cache

1 GB, 2 GB, 4 GB and 8 GB DIMMs

supported On 32-bit systems, up to 4 GB is supported

NOTE: 32-bit systems cannot address 4.0 GB of memory.

Up to 32 GB on 64-bit systems



original configuration

Intel® Core™ i7-3770

hdd 1 To SATA  6Gb/s

amd radeon 7950

ram 4 Go

etc

windows 7



the first modification was to add the memory modules of my old hp, but different
so 3 modules :
Samsung 2GB DDR3-1333MHz PC3-10600
the computer worked well so with 10gb clamped to 1333mhz

updated to the arrival of windows 10 free
no worries, except for the audio driver
recovered with

https://ftp.hp.com/pub/softpaq/sp71501-72000/sp71717.exe
https://ftp.ext.hp.com/pub/softpaq/sp71501-72000/sp71717.html

next, replacing the amd 7950 3gb graphics card (I had already looked, and the first time it was over $900 for the card alone!!)

http://www.tspire.com/2013838/hp-677431_001-radeon-hd-7950-3gb-384-bit-gddr5-pci-express-3-0-x16-hdc...

, by an nvidia gtx 1070 8gb



  • Form Factor: ATX (full height) PCB with ATX dual slot bracket
  • Dimensions: 11.2 cm x 26.7 cm (4.4 x 10.5 in)
  • Rear I/O connectors: Dual Link DVI-D + HDMI + 3 DisplayPort

sometimes it gets a little hotter (the case is quite small, not much space for the graphics card, not much better with the original one though)

I'm going to a quick passage, because I hadn't been able to make photos videos..
then therefore, adding a crucial SSD mx500 500 GB sata  (then replaced by that of 1 to, Christmas present)
slightly less efficient than the wd blue disc..
but the price was way more in my budget with a special offer at that time
fairly easy replacement, clone of the original hdd with the software provided by Acronis, no problem!

as we say at home day and night, speed of execution, startup, nothing to do with the hdd

Even if you don't buy the most efficient SSD, I strongly recommend compared to a 7200rpm or 5400rpm hdd

_______________________________________________________________________________________________

The time has come to add memory , I skip the details of the cause , too long !
I therefore went to the simplest, use that is often recommended here, crucial scan!


but he did not offer me the same reference .. ddr3l  / ddr3  1.35/ 1.5v

spécifi produit.JPG
choice being made, I chose an 8gb module (budget problem, mainly)
If it does not work with the original 4 gb , we will see later if it works alone , to buy the same one !
And how great this computer, motherboard sound...
I therefore install the 8gb module alone, to check!
no problem the computer, restart
So I place the 4 gb module, but with difficulty, because of the graphics card, which is a bit annoying..
But failure, no beep, the computer starts but seems blocked!
I remove it, but I do the test with a 2 gb module in case, although it is more different, no problem, it restarts
verification 10 gb
I therefore replace the 4 gb, which I may not have plugged in very well
it restarts, and we now have 14 gb
so , I replace another 2 gb, no problem, now 16 gb
So I was quite surprised, because we often have problems here, just with a single different model.
certainly, the speed is reduced, but it is enough for the moment to have the 16 gb
as far as possible, I still plan to buy the same 8gb module later

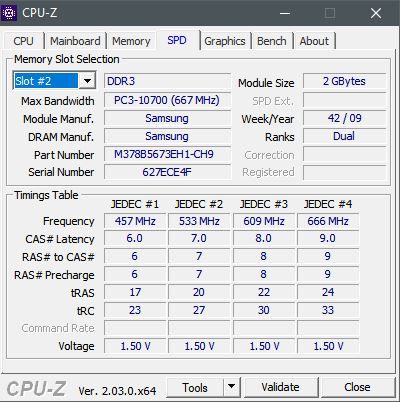

slot 1.JPGslot 2.JPG

slot 3.JPGslot 4.JPG

gestionaire mémoire.JPG

note, no bios update has been made !!
