IDE ATA/ATAPI CONTROLLERS MISSING!

Product Name: HP Pav HPE h8-1300z
Operating System: Microsoft Windows 7 (64-bit)

I recently had to reformat my HDD using my HP OEM Recovery Disks. Now when I go into Device Manager there is no listing for the IDE ATA/ATAPI Controller. There are no UNKNOWN devices and there are no OTHER devices listed eliminating that question. I have a feeling that I may need to re-flash my BIOS but there are no listings for that software installer in the support for my PC it only shows a BIOS for another MoBo. I was hoping the Recovery Disks would have an option to re-install drivers but it seems that it will only do a comeplete OS Re-Install.



Is there a way I can install the IDE ATA/ATAPI Controllers without having to do a complete OS re-install????

0 Kudos
Accepted Solution

Re: IDE ATA/ATAPI CONTROLLERS MISSING!

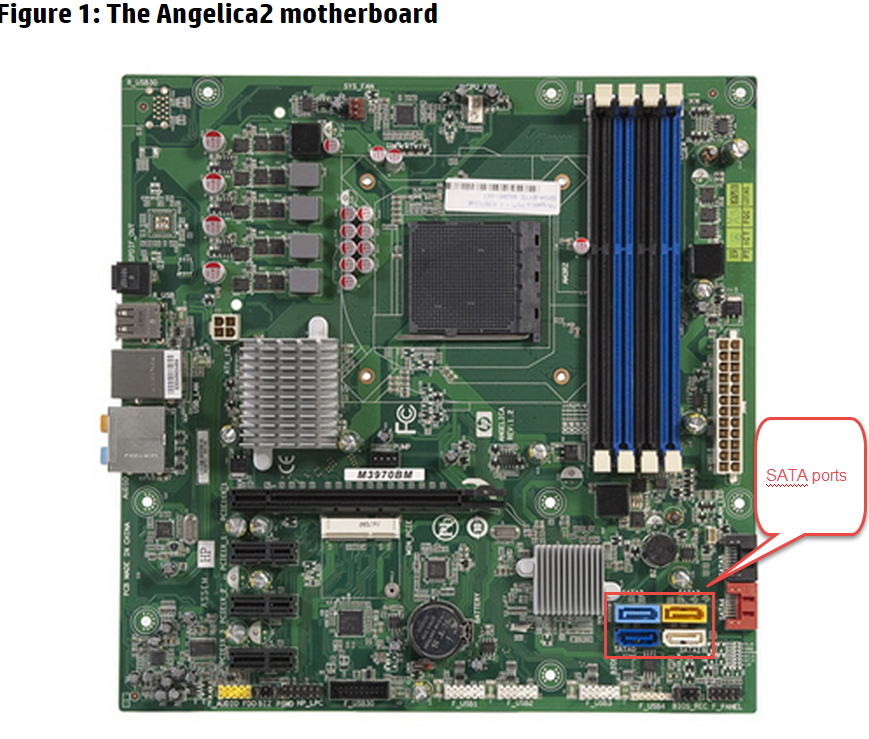

Your motherboard has a SATA controller and connectors. There are no IDE connectors on the Angelica2 motherboard.

Specs for your PC

http://support.hp.com/us-en/product/HP-Pavilion-HPE-h8-Desktop-PC-series/5258496/model/5261714/product-info




View solution in context
Provost
Posts: 44,274
Member Since: ‎01-07-2009
Message 2 of 6 (5,181 Views)

Re: IDE ATA/ATAPI CONTROLLERS MISSING!

[ Edited ]

Your motherboard has a SATA controller and connectors. There are no IDE connectors on the Angelica2 motherboard.

Specs for your PC

http://support.hp.com/us-en/product/HP-Pavilion-HPE-h8-Desktop-PC-series/5258496/model/5261714/produ...




If you find that my posts help you, you can say thanks by clicking on the Thumbs up + in the purple box next to the Reply button .

If your problem is solved or your question answered by a particular post, please click the Accepted Solution button in that post.

I am not an HP Employee, I am a volunteer posting here on my own time
Intern
Posts: 60
Member Since: ‎01-27-2011
Message 3 of 6 (5,156 Views)

Re: IDE ATA/ATAPI CONTROLLERS MISSING!

[ Edited ]

Thanks Erico for your photo. What I was referring to was the fact that it was not listed in Device Manager and I found the reason was I was booted into RAID mode in BIOS by default;  by changing the boot to AHCI (after I changed the registry files to correspond) I now see the IDE ATA/ATAPI controllers listed in Device Manager just under the Human interface Device listing and above Keyboards. When in RAID mode the corresponding controllers are listed as Storage Controllers just below Sound and above Storage Volume and when in AHCI mode they're listed as shown above.



I found by booting in RAID that a Windows7 OS would not take the install and it shows IDE ATA/ATAPI drivers missing which have to be present to continue the install when you want just a clean install of windows from an .ISO or disk. The HP Recovery Disks on the other hand  will. I have an out of warranty desktop and wanted to forgo the bloatware.



BTW your photo that highlights the SATA connectors are showing pci-e slots for other controllers the SATA port/connectors are on the opposite side in light blue, darker blue, yellow and white with two more (reddish brown and black) just to the right of the four. So whoever said your post was a solution might need to take a closer look. Nice try though.  : ` }

Provost
Posts: 44,274
Member Since: ‎01-07-2009
Message 4 of 6 (5,143 Views)

Re: IDE ATA/ATAPI CONTROLLERS MISSING!

Is that the motherboard that is in your system?



Ahh. Ok. you meant the controller devices section in the device manager. If you had stated it that way I would have gotten what you meant.



I am pleased to see that you have it sorted.

If you find that my posts help you, you can say thanks by clicking on the Thumbs up + in the purple box next to the Reply button .

If your problem is solved or your question answered by a particular post, please click the Accepted Solution button in that post.

I am not an HP Employee, I am a volunteer posting here on my own time
Intern
Posts: 60
Member Since: ‎01-27-2011
Message 5 of 6 (5,138 Views)

Re: IDE ATA/ATAPI CONTROLLERS MISSING!

Now when I go into Device Manager there is no listing for the IDE ATA/ATAPI Controller. There are no UNKNOWN devices and there are no OTHER devices listed eliminating that question.



again thanks erico  the line above is how it was stated sorry for the confusion, I asked that it was missing not where is it. and yes that is the correct MoBo and what you have highlighted are the mini-Pci-e slots for your future reference.

Provost
Posts: 44,274
Member Since: ‎01-07-2009
Message 6 of 6 (5,134 Views)

Re: IDE ATA/ATAPI CONTROLLERS MISSING!

[ Edited ]

Yikes! I sure did highlight the wrong slots. :smileyembarrassed: Thanks for catching it.



The SATA connectors are to the right side.



I will correct the image for others viewing this thread. Image replaced.
