Upgrading PSU

HP Recommended
Pavilion Gaming TG01-0005na
Microsoft Windows 10 (64-bit)

Hello, could anyone help me in finding a suitable PSU



I have a Pavilion TG01-0005na gaming PC and want to upgrade the GPU from a GTX 1650 to a GTX 1660 Ti. Now I see that HP also do a PC with the exact same spec but with the 1660 Ti GPU (TG01-0011na), but it has a 400W PSU instead of the 310W PSU I have in my PC.



I have already found out that HP PSU’s aren’t the same as regular ones so can anyone recommend a PSU that will work or even where I can get the PSU which is in the TG01-0011na



Thanks

1 ACCEPTED SOLUTION

Accepted Solutions
wb2001
Level 15
Level 15
12,842 12,635 1,773 5,013
Message 5 of 7
Flag Post
HP Recommended

@RandomDan,

The series models are listed. Your computer belongs to the TG01 series.

Any series can have multiple models.  Just because I did not add your exact model (yet) does not mean it does not belong to the indicated series.  I have to wild-card to search for model numbers.

All these PSU have the two 2x2 and a inline 7 pin (only using 3 wires) to the motherboard. Each PSU model works with any of the listed series models.

The added features known, so far:

1) 500W - L05757-800 has 6+2 PCIe power plug.

2) 400W - 942332-001 has the 6+2 PCIe power cable.  It also has 5 wires on the 7 pin inline.

3) 400W -  L04618-800 has 6+2 PCIe power plug.



You have a 310W PSU, the L63964-004, and you stated it has an unused 6+2 plug.

BTW, it is on the first page, HP 690-0028b.  Only used 1 time in the spreadsheet, so far.  OK?

Look here, is it a 6+2 PCIe.   To 2 pin should be molded to "create"  an 8 pin.

If this is true, you have filled in an unknown and I will include it in the next update, also adding your unit.

The 2 unused plugs in the last picture resemble SATA power and the 2pin of the 6+2 .  Once you verify that plug, I will have to create a whole new column for page 2 to be accurate.



PS<> I like you challenging me.  I created that database without any help from HP.  I get a model number, and  use HP PartSurfer to obtain the PSU number. In several cases, HP used 3  PSU numbers in the same unit. That is why you will notice the X's for different PSU numbers, like the 590-p0028ng, 595-p0039c,690-067c. What help I get is from generous users that tell me the unknowns, and like you, provided pictures.

This system is feedback driven thru Solution and Kudo flags. It's the only means of knowing if you have been served. Please click Accept as Solution, if your problem is solved. To say THANK YOU, press the "thumbs up symbol" to render a KUDO. You can render both Solution and KUDO..

HP Envy 8 5010 Tablet
(2) HP DV7t i7 3160QM 2.3Ghz 8GB
Printer -- HP OfficeJet Pro 8620 Legal
Custom Asus Z97D, I7-4790k, 16GB RAM, WIN10 Pro 64bit, ZOTAC GTX1080 AMP Extreme 3 fan 8GB RAM, 500GB SSD, Asus PB287 4k monitor, Rosewill Blackhawk case and 750W OCZ PSU.

View solution in original post

0 Kudos
6 REPLIES 6
wb2001
Level 15
Level 15
12,842 12,635 1,773 5,013
Message 2 of 7
Flag Post
HP Recommended

@RandomDan,

Thank you for the defined inquiry.  This a spreadsheet that will explain the various PSU units. There are 2 models of the 400W, but re-stock is varied by seller.  The GTX 1650 comes in 2 configurations, with or without the need for a 6 pin PCIe power plug. The GTX 1660 series requires an 8 pin PCIe power plug.

Can you answer a question, so I can update the spreadsheet.

1)  You are supposed to have anL64961-800 PSU and does it have a PCIe 6 pin power plug?

      (The L63964-004 just got confirmed with 6 pin, which will be updated soon).

This system is feedback driven thru Solution and Kudo flags. It's the only means of knowing if you have been served. Please click Accept as Solution, if your problem is solved. To say THANK YOU, press the "thumbs up symbol" to render a KUDO. You can render both Solution and KUDO..

HP Envy 8 5010 Tablet
(2) HP DV7t i7 3160QM 2.3Ghz 8GB
Printer -- HP OfficeJet Pro 8620 Legal
Custom Asus Z97D, I7-4790k, 16GB RAM, WIN10 Pro 64bit, ZOTAC GTX1080 AMP Extreme 3 fan 8GB RAM, 500GB SSD, Asus PB287 4k monitor, Rosewill Blackhawk case and 750W OCZ PSU.
0 Kudos
RandomDan
Author
New member
4 3 0 0
Message 3 of 7
Flag Post
HP Recommended

My PC has a PSU labelled as part number L63964-004


My model isn’t shown on that spreadsheet

0 Kudos
RandomDan
Author
New member
4 3 0 0
Message 4 of 7
Flag Post
HP Recommended

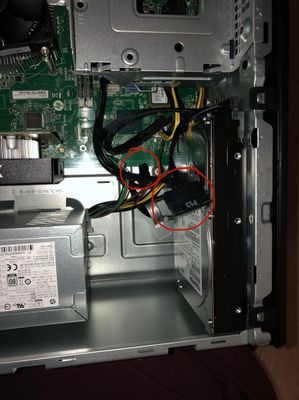

I’ve attached pictures of my PSU’s setup. It has the two 2x2 pin connectors and a small 7 pin connector to the motherboard and theres a long flat connector, a 2 pin connector and a 6 pin connector which aren’t being used by anything.





0 Kudos
wb2001
Level 15
Level 15
12,842 12,635 1,773 5,013
Message 5 of 7
Flag Post
HP Recommended

@RandomDan,

The series models are listed. Your computer belongs to the TG01 series.

Any series can have multiple models.  Just because I did not add your exact model (yet) does not mean it does not belong to the indicated series.  I have to wild-card to search for model numbers.

All these PSU have the two 2x2 and a inline 7 pin (only using 3 wires) to the motherboard. Each PSU model works with any of the listed series models.

The added features known, so far:

1) 500W - L05757-800 has 6+2 PCIe power plug.

2) 400W - 942332-001 has the 6+2 PCIe power cable.  It also has 5 wires on the 7 pin inline.

3) 400W -  L04618-800 has 6+2 PCIe power plug.



You have a 310W PSU, the L63964-004, and you stated it has an unused 6+2 plug.

BTW, it is on the first page, HP 690-0028b.  Only used 1 time in the spreadsheet, so far.  OK?

Look here, is it a 6+2 PCIe.   To 2 pin should be molded to "create"  an 8 pin.

If this is true, you have filled in an unknown and I will include it in the next update, also adding your unit.

The 2 unused plugs in the last picture resemble SATA power and the 2pin of the 6+2 .  Once you verify that plug, I will have to create a whole new column for page 2 to be accurate.



PS<> I like you challenging me.  I created that database without any help from HP.  I get a model number, and  use HP PartSurfer to obtain the PSU number. In several cases, HP used 3  PSU numbers in the same unit. That is why you will notice the X's for different PSU numbers, like the 590-p0028ng, 595-p0039c,690-067c. What help I get is from generous users that tell me the unknowns, and like you, provided pictures.

This system is feedback driven thru Solution and Kudo flags. It's the only means of knowing if you have been served. Please click Accept as Solution, if your problem is solved. To say THANK YOU, press the "thumbs up symbol" to render a KUDO. You can render both Solution and KUDO..

HP Envy 8 5010 Tablet
(2) HP DV7t i7 3160QM 2.3Ghz 8GB
Printer -- HP OfficeJet Pro 8620 Legal
Custom Asus Z97D, I7-4790k, 16GB RAM, WIN10 Pro 64bit, ZOTAC GTX1080 AMP Extreme 3 fan 8GB RAM, 500GB SSD, Asus PB287 4k monitor, Rosewill Blackhawk case and 750W OCZ PSU.

View solution in original post

0 Kudos
RandomDan
Author
New member
4 3 0 0
Message 6 of 7
Flag Post
HP Recommended

I can confirm that the unused connectors are indeed a SATA connector and the PCIe 6+2 connector.



i’ve decided to go for the L04618-800 400w PSU as it is the PSU which comes with the TG01-0011na which has the exact same specs as mine apart from a 1660 ti graphics card.



The 1660 Ti requires 125W as apposed to 75W for the 1650, so 90W extra should be plenty for my needs.



Thanks for your help

0 Kudos
vt018-75
New member
1 1 0 0
Message 7 of 7
Flag Post
HP Recommended
    • Thank you for your Cross Reference chart, I upgraded my HP 590-P0053 W with 400 Watts HP original part 942332-001 (now has new part number L04618). Note: The PS fan does not run at start up but it will spin as needed. I monitored the temperature with free  temperature monitor software.
    • BTW,  on
    • my brand new 400 Watts PS (Platinum) is was labeled both  942332  and L04618 so you may want to combined into one column on your Cross Reference chart.
