Keys |\ and <> are inverted

[peppens1]

Hi,

i use a macbook to control a remote workstation with windows.

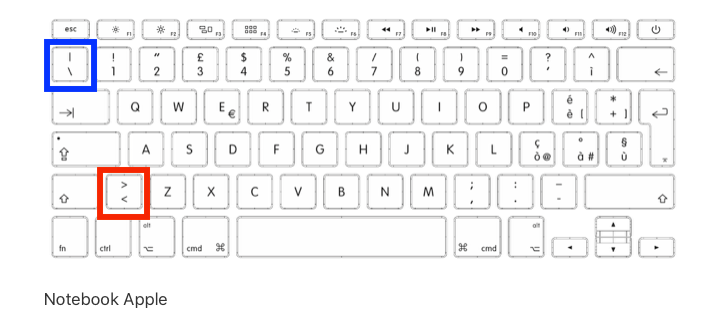

The two keys that you see in the photo attached, are inverted.

I tried to write on Notepad on the workstation from my macbook and when i press |\ button, on the monitor appears \ and when i press <> button on the monitor appears \.

I use these keys as shortcuts in Avid, so it's important when i press it on macbook, it will execute the same command on windows in remote.

How can i solve the problem?

Thanks

[Lizzy_G]

Hi Peppens1,

What version of RGS are you using?

Another user had a similar problem on RGS  7.x and upgrading to the latest Remote Boost version solved their problem.

You can download the latest version here: https://www8.hp.com/us/en/workstations/zcentral-remote-boost.html

Meanwhile, assuming that both your sender and receiver have the same language and keyboard layout set, one thing that you could try is adding a property on your config file that makes RGS use a legacy keyboard mapping mode:

Rgreceiver.KeyboardMapMode=1

[peppens1]

I use this

ZCentral_RB_2020.0_MacOS_Receiver

Yes, same language (sender and receiver).

Where can i set the string?

Config file, ok, but on the receiver or sender?

Where is (in the receiver) on macOS?

[Lizzy_G]

Hi there.

Your receiver config file should be located at /Library/Application Support/HP/rgreceiverconfig

1.Close the receiver

2.edit the rgreceiverconfig file

3. add the property Rgreceiver.KeyboardMapMode=1

4. Save it, and restart the Receiver

[tiltx]

Hi!

I have the same keyboard issue. It's exactly those two keys that are swapped. It's a German keyboard on a Macbook Air running MacOS 10.14 connected to a Centos 7 Linux box though.

In addition to this, the curly brackets { } are not transmitted on the same keys. On Mac it's right option + 8 and 9 but when connected to the Linux box I have to press right option + 7 and 0 (which I think is what I would have to press on the German keyboard at the Linux box but can't verify this right now).

The config option has helped at first glance. < and > work. But whenever I press the key to the left of the "1" (^ and ° on this German keyboard) the receiver disconnects after a brief "network warning". This also happens whenever I press the right option key.

I have removed the option and everything "works" again, except for the swapped keys. But I can work with that for now.

Regards

Stefan

[peppens1]

I tried but nothing changed

[Lizzy_G]

Peppens,

Does the picture you shared reflect the exact keyboard layout you have?

Could you tell me:

- What MacBook model/year do you have

- What language is its keyboard, and if it is localized to another language

- Keyboard layout if different from the picture (qwerty / qwertz, azerty, other?)

- Your sender keyboard language / layout

p.s. Tiltx, please let me know the same info about your systems too.

[peppens1]

yes, the image reflect my keyboard.

-Macbook Pro 15" - mid 2010 - OSX High Sierra

-Italian

-no, the same (qwerty)

- sender (italian, qwerty, a classical windows keyboard)

[tiltx]

Hi Lizzy,

my system is:

• Macbook Air 13 inch, 2018
• OSX 10.14 Mojave
• Keyboard is a German qwertz (see screenshot of layout) and input language is set to German (Deutsch) as well
• The sender is on Centos 7, keyboard language is set to "de"

These are a few keys I've noticed that don't translate correctly:

• right option + 7: | on Mac but { shows up on remote desktop
• right option + 8: { on Mac but [ shows up
• right option + 9: } on Mac but ] shows up
• right option + 0: ≠ on Mac (never used that one myself), but on remote it shows up as }

The keys that show up on the remote host are those that would appear on a "normal" non-Mac German keyboard connected to that machine. But they don't match the Mac keyboard.

cheers

[Grand-Danois]

Hi,

I am on a Danish Macbook Pro 2018, and I experience the same issues.

I am also not able to type @
