HP LaserJet 500 Color M551 99.02.20 Download Error

jlt76 · ‎07-02-2019

Our printer is showing a 99.09.67 "not bootable" error message. I've tried reinstalling the latest firmware using both the external and internal USB ports, but when trying to download the firmware from the USB thumb drive, I keep getting a 99.02.20 download error. I'm having trouble finding more information on what this latter error message means and how to resolve it, ideally without having to replace the formatter with a new part.

Repairatrooper · ‎07-02-2019

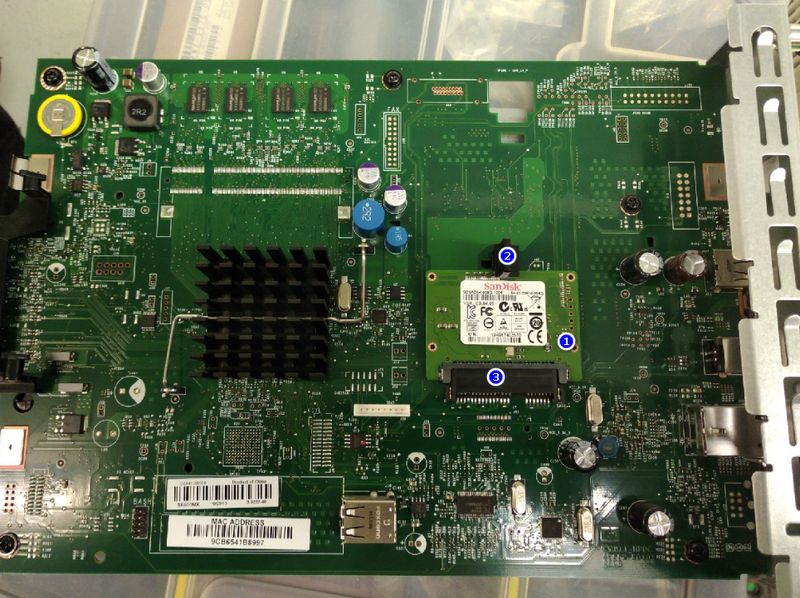

The ssd drive has likely failed. In the picture below, (1) is the harddrive. Release retainer (2) and remove the drive. Connector (3) will mate with a standard SATA drive you just need to jury rig a retainer so it stays in place, double sided tape might be your friend here.

If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.

Alex-TATS · ‎07-02-2019

Hi Jlt76,

Have you tried to do an Erase/Unlock or a Secure Erase and then download the firmware?

Make sure to have a FAT32 formatted USB thumbdrive with the latest firmware in its root directory.

I hope this may help,

Cheers!

ALEX-TATS
Printer Engineer for a HP Platinum Partner
I am not a HP employee
If you found this post helpful, you can let others know by clicking the “Accept as Solution” button. You can also show your appreciation, with a kudos, by clicking the “Thumbs up" button!

jlt76 · ‎07-05-2019

When I try to do a Secure Erase, nothing happens, and the Erase/Unlock feature is grayed out. If I try to do an Erase/Unlock, it says "Selection not Available," and I don't have the admin password (and the option to clear the password is also not available). I've confirmed that the USB thumb drive is formatted as FAT32 and has the latest firmware, and I still keep getting the 99.02.20 error when trying to download the firmware. At this point we've decided to go ahead and replace the printer with a new one, rather than invest more time and money into the current machine.

Alex-TATS · ‎07-05-2019

It must be the HDD/eMMC that is faulty then.

ALEX-TATS
Printer Engineer for a HP Platinum Partner
I am not a HP employee
If you found this post helpful, you can let others know by clicking the “Accept as Solution” button. You can also show your appreciation, with a kudos, by clicking the “Thumbs up" button!

Pablo_SN · ‎12-10-2019

OK, Thanks you. Hdd fails, and it not allow, any process with him involved.
