M477 fdn/fnw
Microsoft Windows 10 (64-bit)

will a M477 Formatter Part# CF377-60001 fdn with the wireless connection J8 /  be able to upgrade to a fnw or do I need to replace the formatter with # CF377-60003 a fdw formatter board??

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

Yea it looks like I'll have tor replace both the formatter and dc controller to to change it from a fdn to a fdw so ill just run a cable under the house to connect it.

View solution in original post

6 REPLIES 6
HP Recommended

Yes, it will.

With a HP Wireless PC Board Assembly Antenna Card (HP PN: 0960-3295) HP M477 fdn will turn to be a M477fdw.

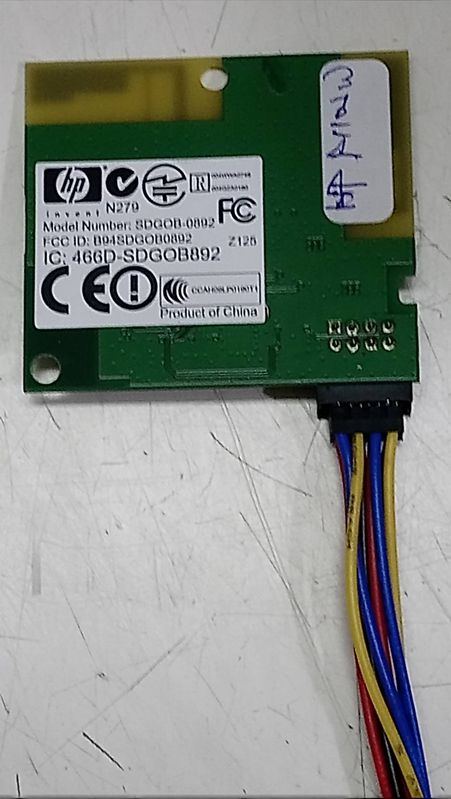

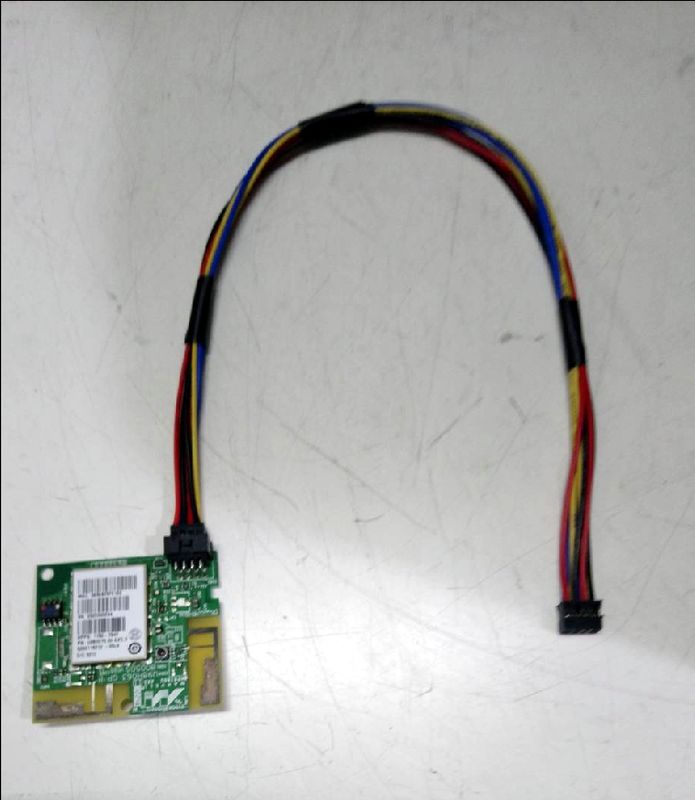

HP M477 M452 - wireless board.jpgHP M477 M452 - wireless board 1.jpg

These two pictures are from eBay.



I'v been using HP P1102w's wireless board onto HP CM1415fn and it works making it become HP CM1415fnw.

Why i'm useing HP P1102w is because P1102w is more easier to be got.




HP Recommended

I installed Wireless PCA (M377, M477fnw/fdw) 1150-7967 / the part you replied with is for the M452 0960-3295 is it the correct pcb? and of course I upgraded the firmware updated the driver but even with the printer not connected to the pc  there is no wireless in the network menu or anywhere else in the menu

HP Recommended

I'm sorry! My bad. I thought they are inter-exchangeable. Good for HP!

I google just now and found the right Part number should be 1150-7967.

Hope that you can return it and get the right one back.







HP Recommended

I have the correct one installed but the printer just wont see it. been looking for a solution but no luck. I'm thinking that either the formatter needs to be replaced  but when I look for the updated board part# CF379-60003 they all say part on board is CF379-60001 and thats what I have. so maybe my wireless board is DOA I just dont know!

HP Recommended

The formatter part number you list in your original post is identified in the service manual as for the M477FNW. It is quite possible that the boards are tattooed at the factory to be either wireless yes or wireless no and not be changeable. As well, configuration data is stored in multiple areas and replacing the formatter may still not result in giving you a wireless printer.

If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



HP Recommended

Yea it looks like I'll have tor replace both the formatter and dc controller to to change it from a fdn to a fdw so ill just run a cable under the house to connect it.
