HP Recommended
Booting or connecting a Polycom RealPresence Group Series to a network switch initiates certain network Protocol’s
NOTE: The below has been tested with a GroupSeries running Software 6.1.2
INITIAL BOOT PROCESS
A Polycom Group Series as a factory default does not support LLDP and this needs to be enabeld via Admin Settings => Network => LAN Properties => Enable LLDP
Initially the GroupSeries sends a => DHCP Discover <=
Within this DHCP Discover message the GroupSeries uses various Sub-Options
- Option 12 Host Name
This can be changed via Admin Settings => Network => LAN Properties => Host Name - Option 55 is actually a List of Sub Options
- Option 60 Identifies the Vendor Class Identifier
The GroupSeries can then receive one or multiple DHCP Offers:
NOTE: The Offer does not mandatorily need to contain all requested options!
The GroupSeries would then Request the IP Address and everything else:

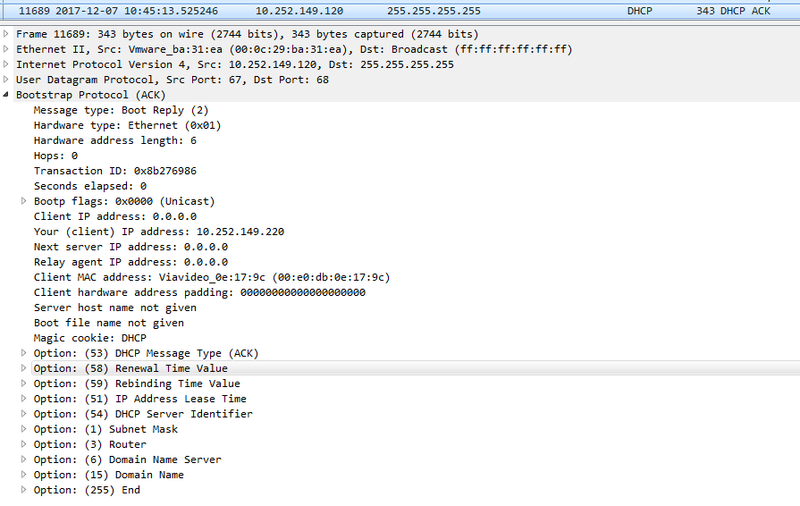

And the Server would ACKNOWLEDGE this exchange
