Solved: Charging Port Replacement / USB-C Charger - HP Support Community

indiemoon360 · ‎09-05-2023

My laptop’s charging port started smoking while plugged in the other day. Part of the black plastic around the charger melted in the charging port so now the port and charger need to be replaced.

Where would I get the charging port replaced and does anyone have a link to the correct part on a site like Amazon/eBay/Walmart? Is this charging port soldered to the motherboard or would I be able to replace it myself?

Alternatively, could I use the USB-C port to charge the laptop instead of replacing the standard port? I can only find USB-C chargers up to 100W. My previous charger was 135W and used the standard circular keyhole port.

erico · ‎09-05-2023

The Maintenance & Service guide for your laptop (for parts reference see the illustrated parts catalog chapter 3)

http://h10032.www1.hp.com/ctg/Manual/c06618425.pdf

The power cable has the port and it is just a matter of removing the old one and plugging in the new unit.

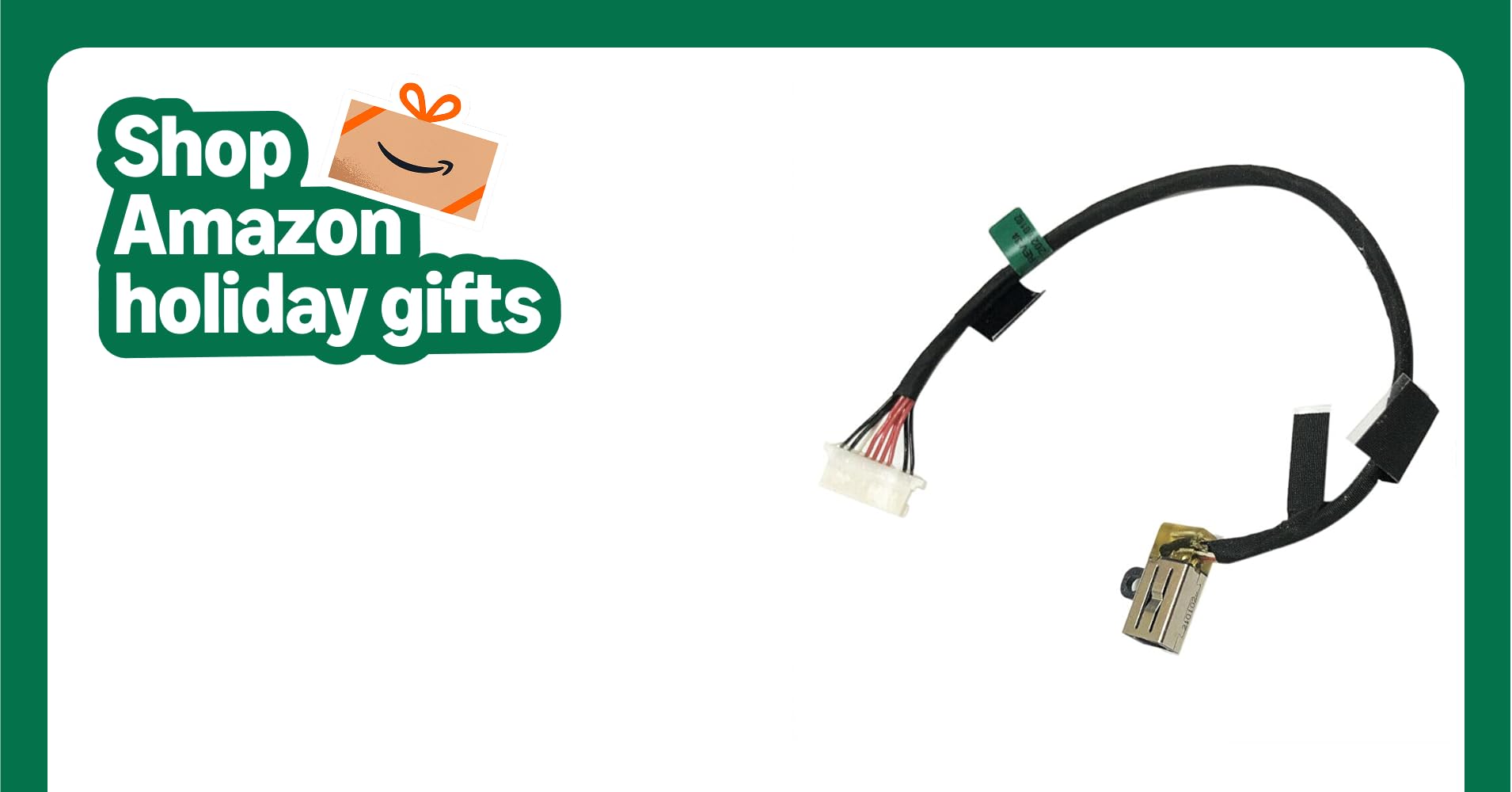

Power connector cable L95627-001

Here it is at Amazon.com for about $30.00.

https://www.amazon.com/L95627-001-M08169-S16-POWER-CABLE-15-EB1043DX/dp/B0B81391TS
That can be done at a laptop/PC shop.

Here is the part description and part number
135 W HP Smart AC adapter (PFC, RC, slim, 4.5 mm) L15534-001

Newegg.com has the power supply at almost half the price that Amazon has it listed for.

https://www.newegg.com/p/1B4-001S-0AE68

On eBay for around $20.

https://www.ebay.com/itm/145173808305?chn=ps&mkevt=1&mkcid=28

About using a USB Type-C port, that is a maybe.

Generally, if a laptop was delivered with a power adapter that has a barrel type connector, that is what should be used.

Here is a search I did for the part

https://www.google.com/search?q=135+W+HP+Smart+AC+adapter+(PFC%2C+RC%2C+slim%2C+4.5+mm)+L15534-001&r...

I am a volunteer forum member. If my suggestion helped you solve your issue, help others by marking that post as the accepted solution. Say thanks by clicking on the Yes button next to the "was this reply helpful?"

View solution in original post

erico · ‎09-05-2023

The Maintenance & Service guide for your laptop (for parts reference see the illustrated parts catalog chapter 3)

http://h10032.www1.hp.com/ctg/Manual/c06618425.pdf

The power cable has the port and it is just a matter of removing the old one and plugging in the new unit.

Power connector cable L95627-001

Here it is at Amazon.com for about $30.00.

https://www.amazon.com/L95627-001-M08169-S16-POWER-CABLE-15-EB1043DX/dp/B0B81391TS
That can be done at a laptop/PC shop.

Here is the part description and part number
135 W HP Smart AC adapter (PFC, RC, slim, 4.5 mm) L15534-001

Newegg.com has the power supply at almost half the price that Amazon has it listed for.

https://www.newegg.com/p/1B4-001S-0AE68

On eBay for around $20.

https://www.ebay.com/itm/145173808305?chn=ps&mkevt=1&mkcid=28

About using a USB Type-C port, that is a maybe.

Generally, if a laptop was delivered with a power adapter that has a barrel type connector, that is what should be used.

Here is a search I did for the part

https://www.google.com/search?q=135+W+HP+Smart+AC+adapter+(PFC%2C+RC%2C+slim%2C+4.5+mm)+L15534-001&r...

I am a volunteer forum member. If my suggestion helped you solve your issue, help others by marking that post as the accepted solution. Say thanks by clicking on the Yes button next to the "was this reply helpful?"

indiemoon360 · ‎09-05-2023

Perfect, thank you very much for your reply!

erico · ‎09-05-2023

You're very welcome!
