HP Notebook - 17-ak014na
Microsoft Windows 10 (64-bit)

HP Notebook - 17-ak014na

Is the there an how to guide?



regards



Peter

1 REPLY 1
HP Recommended

Service Manual:



Manual



Start on p. 39 to remove back cover.

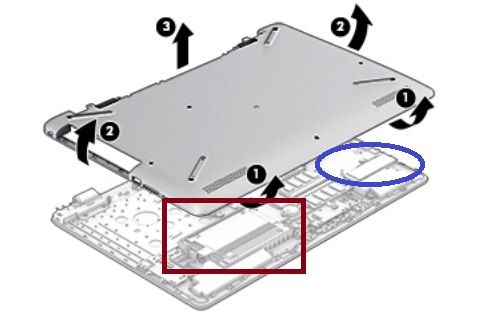

red rectangle = 2.5 inch, blue circle = M.2red rectangle = 2.5 inch, blue circle = M.2



The laptop will only take SATA SSDs. You can either put a 2.5 inch SATA SSD in the place with the red rectangle, in lieu of the hard drive, or a SATA M.2 disk where the blue circle is, in addition to the hard drive.



Good 2.5 inch SATA SSD:



https://www.amazon.com/Samsung-2-5-Inch-Internal-MZ-75E250B-AM/dp/B00OBRE5UE/ref=sr_1_2?ie=UTF8&qid=...



SATA M.2 disk:



https://www.amazon.com/Samsung-850-EVO-Internal-MZ-N5E500BW/dp/B00TGIW1XG/ref=sr_1_3?s=electronics&i...



Post back with any more questions and please accept as solution if this is the answer you needed.
