High GPU Temps After Thermal Maintenance - Seeking Pad Thickness/Layout Info

[GloOmen]

I recently performed thermal maintenance on my laptop. While my CPU temperatures are normal, my graphics card (GPU) temperatures have become abnormally high. I suspect this is because I either used a thermal pad of the wrong thickness for the GPU or missed one entirely.

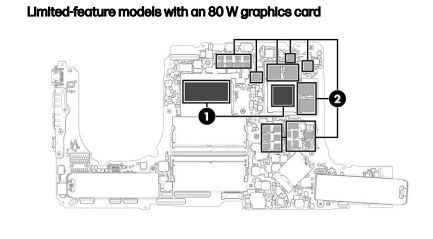

I'm sharing the attached image as a reference to show exactly what I'm looking for. I need a detailed technical diagram just like this one for my own laptop model, showing the locations and thicknesses of the thermal pads.

omen16-xd0000nt Ryzen 7 7840hs Rtx 4060

[zoey7886]

@GloOmen, Welcome to the HP Support Community!

We're here to help you tackle that High GPU Temps After Thermal Maintenance! Don't worry, we've got your back!

To get you the best assistance, we need to take this conversation to a private chat. We're inviting you to a private message to protect your privacy and ensure that any sensitive information remains confidential.

To access your private message, just click the little blue envelope icon on the upper right corner of your HP Community profile, next to your profile name.

We're looking forward to helping you resolve this issue!

Stay tuned, and thanks for your patience!

Regards,
