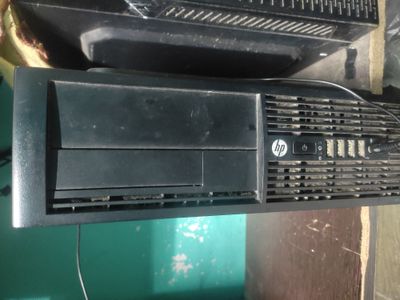

HP Compaq 4000 Pro Base Model Small Form Factor PC

I just installed windows 11 on this and its slow on this HDD so i need dual ports to do that ssd is for windows and hdd for files pls anyone answer me does HP Compaq 4000 Base Model SFF has 2 sata ports??? pls let me know...

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

Yes, you can install the SATA SSD and you will need a SATA data cable and your power supply should have two SATA power connectors--one for the optional DVD drive, and one for the hard drive.



To use the SATA SSD as the boot drive you have to use the DATA cable for the port your current 500 GB mechanical hard drive is plugged into.



Then you use the other port meant for the DVD for your hard drive.



But you will have to figure out a way to mount the 3.5" drive and you will need a 3.5" to 2.5" adapter to mount the 2.5" SSD where your PC's 3.5" drive is now.

View solution in original post

4 REPLIES 4
HP Recommended

Your PC only has support for one 3.5" drive and one optical drive.



compaq_4000_pro_series.pdf (manualslib.com)



There are two SATA ports.  I suppose if you don't need the DVD drive, you could somehow mount the 3.5" drive in there, buy a 3.5" to 2.5" drive caddy and install a 2.5"  SSD where the 3.5" drive is now and use that SATA port.



Here's an eBay listing of a 4000 Pro motherboard which shows the 2 sata ports:



HP Compaq 4000 Pro Motherboard LGA 775 Pentium 3.2GHZ, 2GB DDR3, FREE SHIP! | eBay



It would be a whole lot easier if you just bought a 1 TB SATA SSD and installed that in place of the 3.5" drive.



If you need a 2 TB drive that should work too.

HP Recommended

Thanks but my pc came with no DVD drive then it has 1 or 2 @paul_tikkanen? Pls tell this is like this. And which type is that 22 pin connector type or something




 and I need to put this SSD


HP Recommended

No no, my pc came with core 2 duo E7500 and 4gb ram also 500 gb Seagate hdd

HP Recommended

Yes, you can install the SATA SSD and you will need a SATA data cable and your power supply should have two SATA power connectors--one for the optional DVD drive, and one for the hard drive.



To use the SATA SSD as the boot drive you have to use the DATA cable for the port your current 500 GB mechanical hard drive is plugged into.



Then you use the other port meant for the DVD for your hard drive.



But you will have to figure out a way to mount the 3.5" drive and you will need a 3.5" to 2.5" adapter to mount the 2.5" SSD where your PC's 3.5" drive is now.
