HP Notebook - 15-bw538au
Microsoft Windows 10 (64-bit)

Hello,

I'm using HP Notebook - 15-bw538au laptop and I want add a SSD to my  laptop. Can you plaese say are there any extra spots on my laptop...

3 REPLIES 3
HP Recommended

Maybe. Here's the Service Manual:



Manual

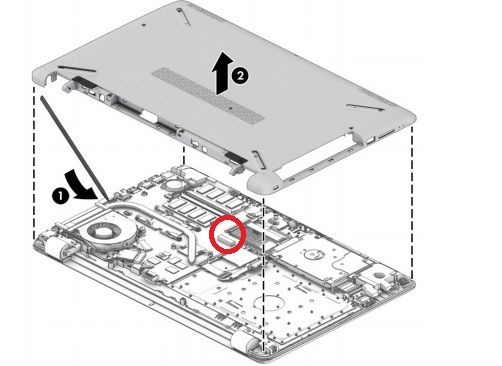

Start on p. 43 to remove the back cover and inside is this:



Red circle is M.2 slotRed circle is M.2 slot



There is SUPPOSED TO be a slot for an M.2 SATA SSD HOWEVER, this is often missing on specific motherboards in models covered by the Manual. Since yours is an AMD A6 processor, I would say no better than 50/50 you have the slot. So open it up before you buy anything. If the slot is there you can install something like this:



https://www.amazon.in/Western-Digital-240GB-Internal-WDS240G2G0B/dp/B078WYS5K6/ref=sr_1_2?keywords=M...



Post back with any more questions and please accept as solution if this is the info you needed.

HP Recommended

This is the inside of my lap. There is no m.2 slot, right?unnamed (1).jpgunnamed.jpg

HP Recommended

Aren't you glad I told you to open it first?
