JHDD1 port for SSD disk

[Elitas]

Hello!

I have an HP Pavilion gaming laptop 15-cx0028nm. Inside is a 250 GB M.2 SSD.

Would it be possible to attach an additional SSD or HDD disk under JHDD1 port, since there is enough space below?

What kind of cable would I need?

What kind of hard drive bracket would I need?

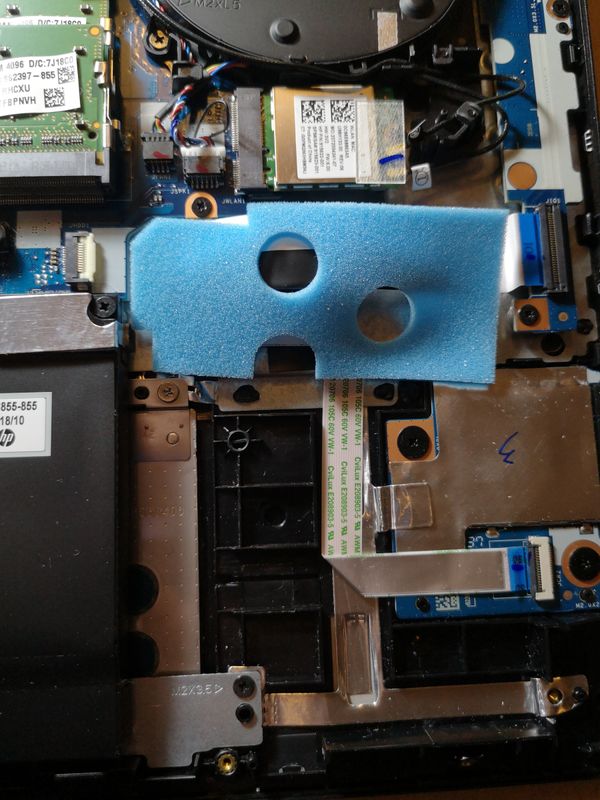

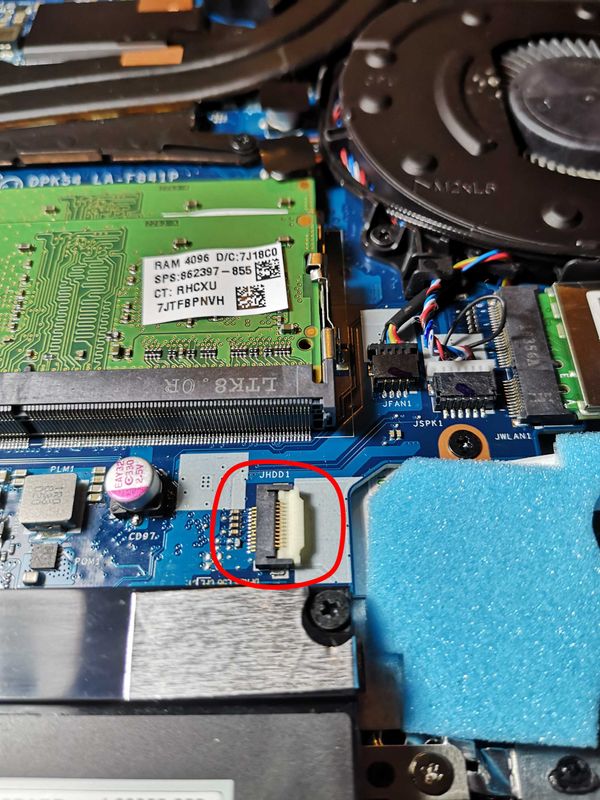

Space for SSD/HDDJHDD1Space for SSD/HDD

[KrazyToad · Accepted solution]

@Elitas

As per the Service Guide, your Notebook can support the following Hard drives

Link: http://h10032.www1.hp.com/ctg/Manual/c05985643

IMPORTANT: The M.2 connector that supports a solid-state drive can also support an Optane memory module. You cannot simultaneously install both an Optane memory module and a solid-state drive in the computer.

You can refer to page 45 - 47 in the Service Guide

If the information I've provided was helpful, give us some reinforcement by clicking the "Solution Accepted" on this Post and it will also help other community members with similar issue.

[Elitas]

Thank you for your help.

So it is only possible to have M.2  and HDD together?

M.2 and SSD SATA 3 is not an option?

[Huffer]

The 2.5 inch bay will support either a mechanical HDD or 2.5 inch SSD in addition to an M.2 SSD.
