Product: Pavilion X360 15-br082wm
Operating System: Microsoft Windows 10 (64-bit)

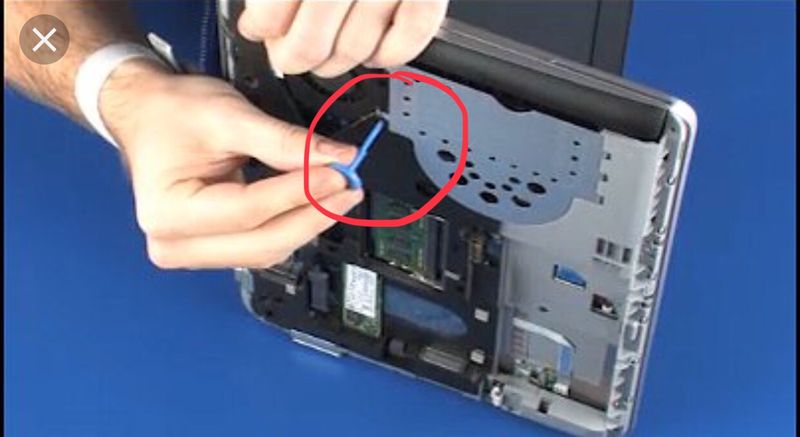

I want to replace my laptop keyboard with a backlight keyboard. So I ordered the new keyboard and have my service manual, I take all the screws out just for it to say use the keyboard release tool to loosen the keyboard??? WHAT?? Anyone have any idea where I can get this keyboard release tool? I found a pic of it online but no part number for it anywhere. Help please!

Keyboard release tool??Keyboard release tool??



4 REPLIES 4

‎10-27-2018 09:44 PM

HP Recommended

@DigitalMom40



Sorry but that picture does not look  like your model???



The keyboard for that model is attached to the Top Cover???



REO

Was this reply helpful? Yes No

‎10-28-2018 12:37 AM - edited ‎10-28-2018 12:59 AM

HP Recommended

@REO51ST

She said that is a picture she found of the Keyboard Release Tool mentioned in the Manual. I checked the manual and it does show using such a tool. I haven't found any place it is available.

@DigitalMom40

I would assume that any similar shaped object could be used-maybe a long wooden skewer,etc.

**Click Accept as Solution on a Reply that solves your issue**
***Click the "YES" button if you think this response was helpful.***
Was this reply helpful? Yes No

‎10-28-2018 04:52 AM

HP Recommended

@DigitalMom40



A wooden skewer should do the job or as we have hundreds at work "Chop Sticks"



REO

1 person found this reply helpful
Was this reply helpful? Yes No

‎04-03-2019 02:00 PM

HP Recommended

You don't need one.  place the laptop on a flat surface, apply pressure to the keyboard, "pulling it down" to create a gap at the top then pry it off.



If you must push it off from the back a spunger "black stick" has done it in the past

1 person found this reply helpful
Was this reply helpful? Yes No
