LITE-ON M.2 SSD Supported Notebooks

[Geigs]

Hi, anyone know which notebooks this M.2 SSD is compatible with ?

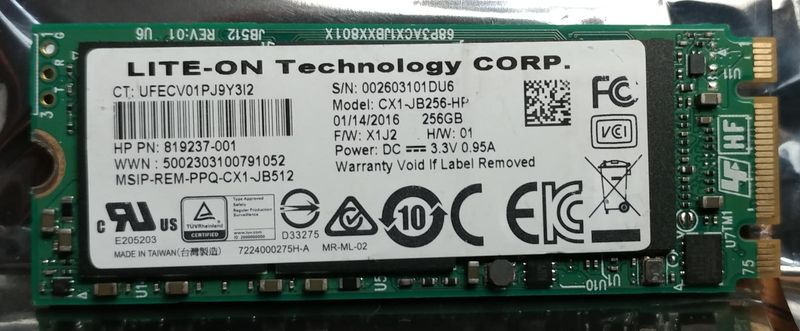

LITE-ON SSD M.2 CX1-JB256-HP
HP PN 819237-001

Tried installing it in my Zbook G2 but does not show up in the boot options menu.

[banhien]

---

@Geigs wrote:

Hi, anyone know which notebooks this M.2 SSD is compatible with ?

LITE-ON SSD M.2 CX1-JB256-HP
HP PN 819237-001

Tried installing it in my Zbook G2 but does not show up in the boot options menu.

---

@Geigs

Millions of them but NOT HP because it is an invalid part:

                https://partsurfer.hp.com/partsurfer?searchtext=819237-001

Regards.

[Geigs]

Ok, why would it have that Part Number printed on the Label of it ?

[banhien · Accepted solution]

@Geigs

OK from Lite-On

             https://www.memory4less.com/lite-on-256gb-pci-express-2-0-x4-ssd-cx1-jb256

It is a short PCIe 2x4 SSD drive I don't know why it has HP P/N. From zBook G2 manual

             http://h10032.www1.hp.com/ctg/Manual/c04493862.pdf

The above SSD is NOT compatible. Page 2 of the manual says the zBook G2 supports mSATA MiniCard solid-state drive not PCIe

In short: they are NOT compatible and won't work.

Regards.

[Geigs]

OK based on information you provided this will not work with HP Notebooks and I will need mSATA SSD for ZBook G2.

I dont know why this HP Part Number is on the label as it is invalid, this SSD came from China.

Thank You
