‎04-27-2019 10:19 PM

HP Recommended
Product: HP 14-bf125tx
Operating System: Microsoft Windows 10 (64-bit)

I wanted to install SSD in my laptop. After contacting Support, they shared me the service manual for the model which states that the M2 SSD type is SATA. (Page #2)

http://h10032.www1.hp.com/ctg/Manual/c05527168

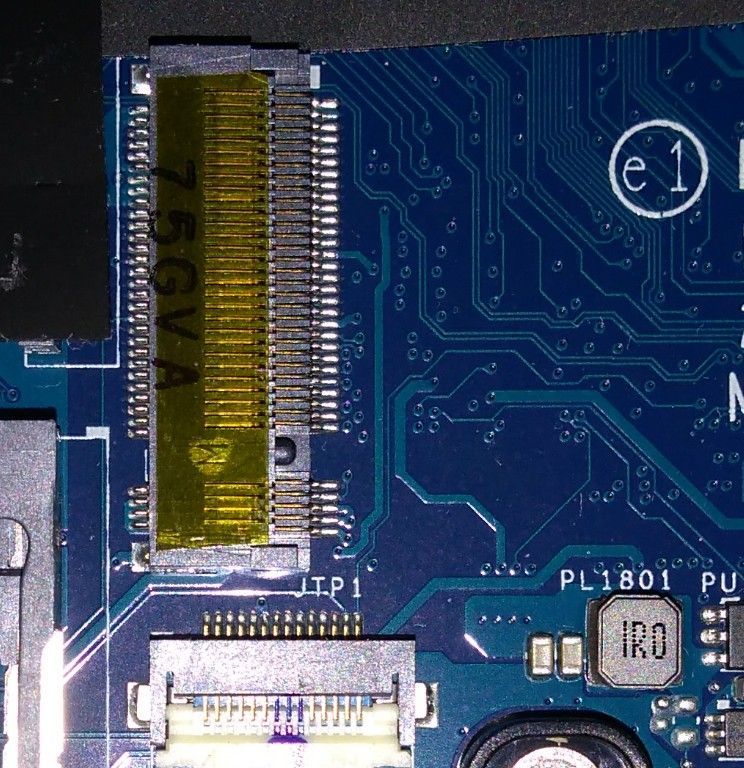

I opened the back panel and saw that the M2 socket had only one notch(M Key).



M2 socketM2 socket



But according to my understanding, SATA sockets should have M+B keys.

How can I verify the SSD type to be used?

2 REPLIES 2

‎04-27-2019 11:46 PM

HP Recommended

@thomsonw86



I believe your machine is an HP Pavilion 14-bf125tx. It does not support NVMe M.2 SSD's. It supports M.2 SATA SSD's and the following products are fully compatible



   https://www.crucial.com/usa/en/pavilion-14-bf125tx/CT11878688

   https://www.crucial.com/usa/en/pavilion-14-bf125tx/CT11878719



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.




Was this reply helpful? Yes No

‎04-28-2019 04:53 AM

HP Recommended

Many thanks for taking your valuable time to answer my query. I visited the link that you shared. The SSDs shown in that link has 2 notches, while the socket in my laptop has only one notch. Can you please clarify why is it so?

Was this reply helpful? Yes No
