RAM Upgrade

[Zarakkhan]

Hello everyone,

So today I attempted to upgrade my notebook RAM from 4GB (Single channel) to 8GB (Dual channel) by adding another 4GB SO-DIMM. I was done with the disassembly and the reassembly process successfully.

When I booted my laptop, in system properties it is showing me only 4.00GB Ram.

I use CPU-Z for further statistics. CPU-Z listed both the Memory slots in use. (Pictures below).

But in Memory tab, CPU-Z is showing 8Gbytes running on Single channel.

There is no difference in performance, still the same as before.

This is the RAM that I got for my upgrade:

http://www.lazada.com.my/samsung-4gb-ddr3-pc3l-12800s-1600mhz-notebook-ram-10441693.html

I did a research before getting the Dimm and I kept the specs in consideration (PC3L-12800S 4GB 1600Mhz).

But the Part Number, Serial Number and Week/Year are different on the new RAM.

Also, the chips on the new RAM are different and double the chips that my original RAM has.

Properties:

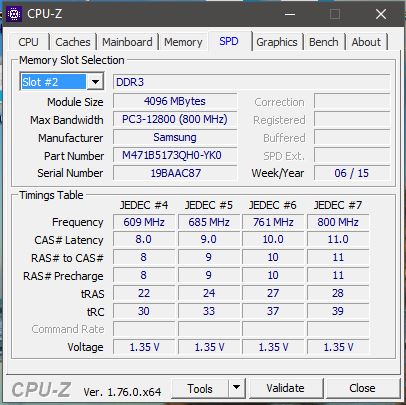

CPU-Z

This is the upgraded Ram.

This is the original Ram my laptop shipped with.

I don't know what seems to be the issue here.

Did I order the wrong RAM? Because I also checked for BIOS update and I already have the latest one.

Can anyone point out what is the issue and guide me accordingly?

Help is highly appreciated.

Regards,

Zarak

[Huffer · Accepted solution]

Yes the issue is that the memory is mismatched. Density (number of chips) is important. This is a good illustration that when we continually say that it is better to install matched modules there is a reason for the advice.

[Zarakkhan]

I tried to find the same exact Part number of my original RAM but I was off to no avail. Can I get some better Ram tips?

[Huffer]

What better RAM tips? Like go ahead and install whatever, it's cool? I don't know what you mean.

[Zarakkhan]

Oops, lack of meaning, apologies for that.

I mean like tips for how to get the matching RAM for your notebook to upgrade.

[Huffer]

What country are you in and what is written on the original module?

[Zarakkhan]

---

@Huffer wrote:

What country are you in and what is written on the original module?

---

I'm in Kuala Lumpur, MY.

This is the original module:

[Huffer]

That is a high density low voltage module.

I don't know if Flipkart ships to Myanmar:

Memory

[Zarakkhan]

---

@Huffer wrote:

That is a high density low voltage module.

I don't know if Flipkart ships to Myanmar:

Memory

---

Kuala Lumpur is in Malaysia, not Myanmar.

And that is not the correct RAM for my system. Thanks for the look around anyways.

[Huffer]

If you don't think that is the right memory then I am not sure what you are looking for. It is the right speed, latency and density. Sorry about the geographic ignorance. You likely have a lot more options in Malaysia than I thought you had in the other place.
