RTC battery holder dimensions

[mfutian]

Hello All,

Based on my previous post ( https://h30434.www3.hp.com/6633620) the RTC battery holder is broken and i am thinking to 3d print it so can anyone help me with the blue prints of it or the dimensions ( any useful information) and if it's possible to remove it from another laptop?

 product Number: G6R97UA#ABA

Thank you

[CF4]

Hi

Sometimes you can get a soldered in type of CMOS/RTC coin cell, even buy the holder if it a standard size.

https://cpc.farnell.com/search?st=coin%20cell

You don't actually mention which coin cell it is or battery it is.

[mfutian]

Thank you for your suggestion

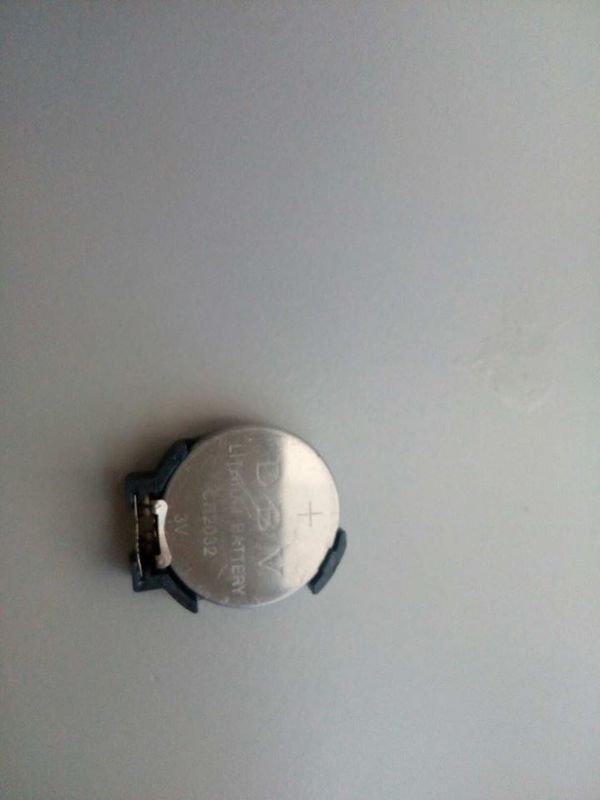

here are the photos of the battery

[CF4]

AND it doesn't have a reference number like 2032?

The pictures take hours to get approved, so maybe tomorrow.....

[mfutian]

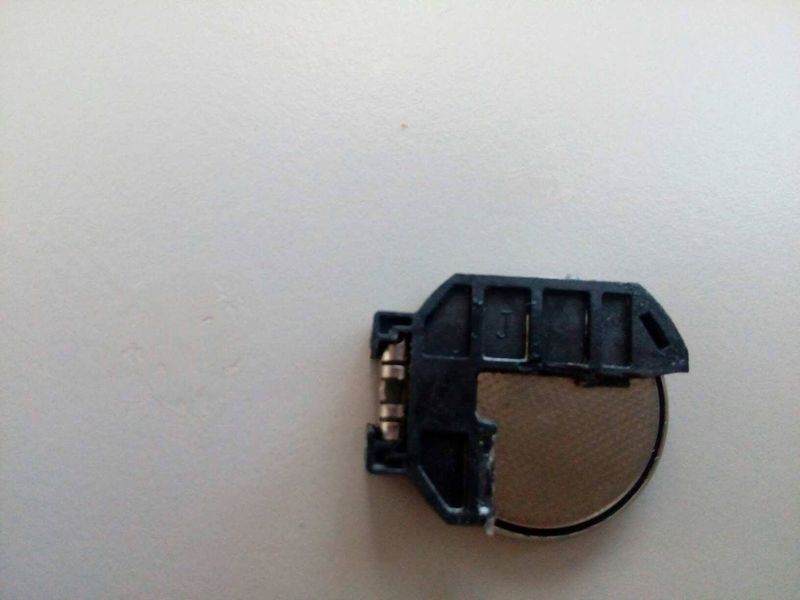

CR2032 And on the bottom i found J letter

[CF4 · Accepted solution]

Hi

So Farnell et al are worldwide, and for a Fiver you get all you need, except the soldering kit.

Options

Non-rechargeable lithium coin cell; applications include memory support, calculators, watches and cameras • Long shelf life

100 in stock Check Stock & Lead Times

Each

1+ £1.77 (£2.12) 10+ £1.59 (£1.91) 100+ £1.43 (£1.72) 500+

Through hole battery holder for 20mm coin cell batteries • Horizontal style holder • Current Rating: 3A AC/DC • Voltage Rating: 500V AC/DC • Contact Resistance: 12mR • Insulation Resistance: 500MR • Temperature Range : -40°C to +105°C • Multicomp products ...

31 in stock Check Stock & Lead Times

Each

1+ £0.42 (£0.50) 5+ £0.37 (£0.44) 25+ £0.34 (£0.41)

Min: 1

Worst case scenario you buy the wrong type of cell holder and use flying leads and a bit of BlueTack.

[mfutian]

i really appreciate your help, i will order it via farnell and replace the broken one.

Have a nice day 🙂

[CF4]

Prego.
