Product: Hp 15t-bs0xx
Operating System: Microsoft Windows 10 (64-bit)


 


 

How can we identify the ssd slot in laptop mother, whether it is m2sata or m2 nvme? I have a picture can you help me identifying?

5 REPLIES 5

‎05-04-2020 09:02 AM

HP Recommended

Your notebook will accept a SATA SSD upgrade, but not an NVMe SSD.



Here are some compatible SSD products from Crucial memory

https://www.crucial.com/compatible-upgrade-for/hp---compaq/hp-15-bs0xx-(intel-6th-7th-gen-core-proce...


I am a volunteer forum member. If my suggestion helped you solve your issue, help others by marking that post as the accepted solution. Say thanks by clicking on the Yes button next to the "was this reply helpful?"



Was this reply helpful? Yes No

‎05-04-2020 09:10 AM

HP Recommended
my question was not that what my model supports actually i wanna know hoe to identify looking the slots?, is there any markings ?
Was this reply helpful? Yes No

‎05-04-2020 01:09 PM

HP Recommended

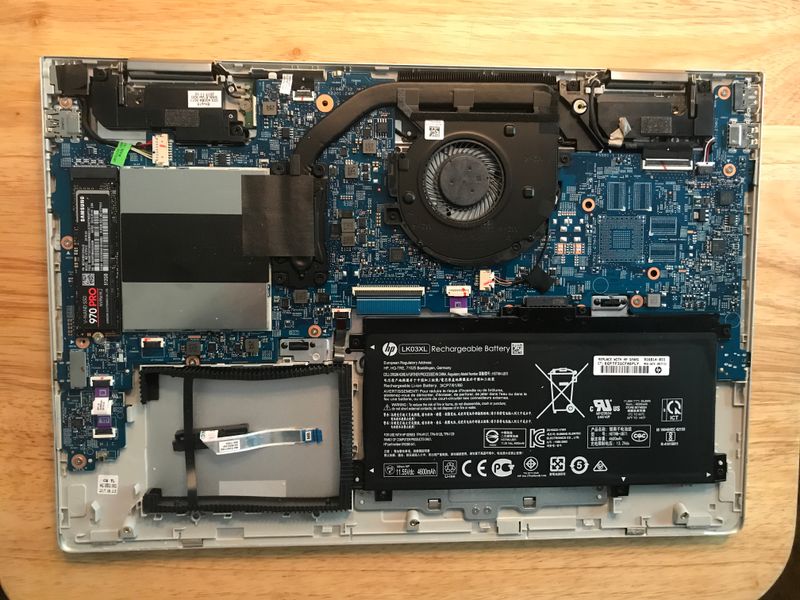

I don't see the required slot in your photos.  Look at the attached internal photo of my HP Envy x360 15m-bp1xx Convertable PC and blow up the left side.  The Samsung 970 Pro is plugged into the required socket (M.2) at the top.




Was this reply helpful? Yes No

‎05-04-2020 01:17 PM

HP Recommended


 

Actually it exist i have marked up

Was this reply helpful? Yes No

‎05-04-2020 02:37 PM - edited ‎05-09-2020 10:11 AM

HP Recommended

The small group of pins is to the left on your PC (M key) and to the right in my PC (B Key).

Was this reply helpful? Yes No
