Product: 15-bs542tu
Operating System: Microsoft Windows 10 (64-bit)

Hi. Sir. I am krishna kanta pal

I used hp 15-bs542tu laptop . I want to upgrade my storage 1tb hdd with 120gb ssd . Is thair present m.2 stot for ssd?

1 REPLY 1

‎03-08-2019 10:58 AM

HP Recommended

Hi,

The service manual does mention support for M2 SATA3 SSD. However, before buying drive you need to check if the slot is present on the motherboard, as sometimes notebooks that did not come with M2 SSD are missing physical slot on the motherboard.

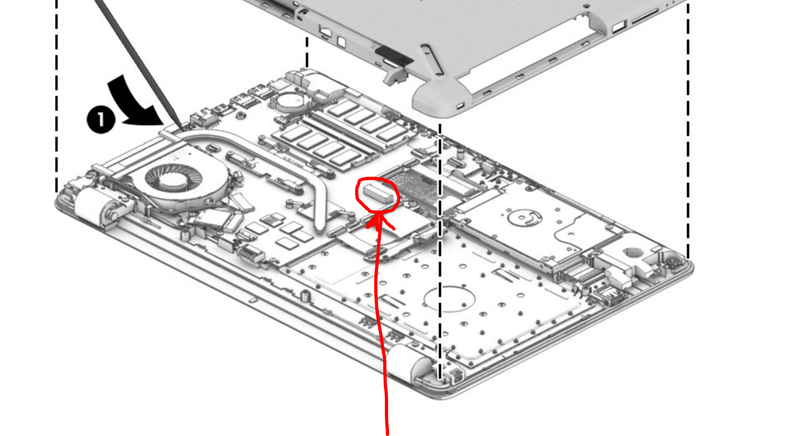

On page 45 of the service manual, you can see the steps to remove the bottom cover and take a look:

http://h10032.www1.hp.com/ctg/Manual/c05493257

M2 slotM2 slot

If the slot is present you can install an M2 SATA3 SSD such as the M2 Samsung 860 Evo or similar of your desired capacity.

You will need to install the OS on the SSD for performance gain.



Hope it helps,

David

Please click on thumbs up for thanks

Please click on accept as solution if answered your question
