Product: HP Pavilion 14-ce0024TU
Operating System: Microsoft Windows 10 (64-bit)

Hi man, I want to upgrade SSD for my Laptop, I do not know if HP Pavillion 14 - CE0024TU supports NVMe or just SATA-III ?

Thanks for your helps!

3 people had the same question
1 ACCEPTED SOLUTION

Accepted Solutions

‎09-11-2018 03:44 AM

HP Recommended

Hi,



It will support either a M2 SATA3 drive or a much faster M2 PCIe NVMe drive.



I would check if the slot is present on the motherboard before buying drive as sometimes HP notebooks which did not come with the M2 SSD are missing the physical slot on motherboard



M2 slotM2 slot

On page 33 of service manual you can see how to remove the bottom cover to take a look. There are two screws under the rubber feet which you need to peel back to remove screw.



If the slot is present you can insert an M2 SSD. You will need to reinstall the OS on the SSD. Best done by removing the mechanical drive. Installing the OS on the SSD and then reinserting the mechanical drive.



Hope it helps,

David

View solution in original post

Was this reply helpful? Yes No
5 REPLIES 5

‎09-10-2018 11:48 PM

HP Recommended

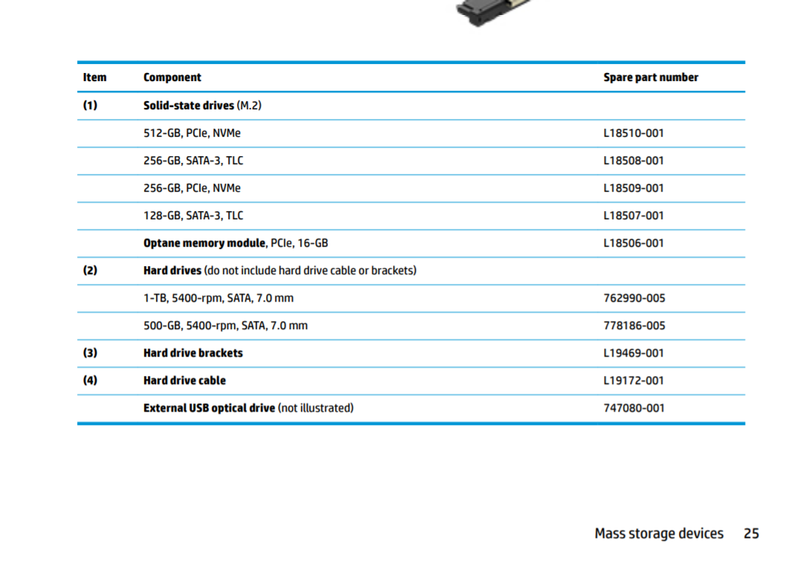

According to the Maintenance and Service Guide it does support NVMe:

https://support.hp.com/us-en/product/hp-pavilion-14-ce0000-laptop-pc/20283999/model/22410240/manuals

**Click Accept as Solution on a Reply that solves your issue**
***Click the "YES" button if you think this response was helpful.***
Was this reply helpful? Yes No

‎09-11-2018 12:49 AM

HP Recommended

You mean this page, bro?


Was this reply helpful? Yes No

‎09-11-2018 12:58 AM - edited ‎09-11-2018 01:05 AM

HP Recommended

And  here.  @Huffer may have opinions on this.




**Click Accept as Solution on a Reply that solves your issue**
***Click the "YES" button if you think this response was helpful.***
Was this reply helpful? Yes No

‎09-11-2018 01:13 AM

HP Recommended

Many thanks for your anwers, but I'm still confused. Hope someone who already upgraded SSD will see this post. :((

Was this reply helpful? Yes No

‎09-11-2018 03:44 AM

HP Recommended

Hi,



It will support either a M2 SATA3 drive or a much faster M2 PCIe NVMe drive.



I would check if the slot is present on the motherboard before buying drive as sometimes HP notebooks which did not come with the M2 SSD are missing the physical slot on motherboard



M2 slotM2 slot

On page 33 of service manual you can see how to remove the bottom cover to take a look. There are two screws under the rubber feet which you need to peel back to remove screw.



If the slot is present you can insert an M2 SSD. You will need to reinstall the OS on the SSD. Best done by removing the mechanical drive. Installing the OS on the SSD and then reinserting the mechanical drive.



Hope it helps,

David

Was this reply helpful? Yes No
