Upgrade SSD on HP 14-dq1033cl

HP 14-dq1033cl
Microsoft Windows 10 (64-bit)

I have HP Laptop 14-dq1033cl with following configuration

Processor : Intel i5-1035G4 CPU 1.10 Ghz 1.5 Ghz

RAM : 4GB SODIUM DDR4 SDRAM

System : 64 Bit Operating System, x64 based processor

Storage : 128GB SSD



Disk Driver : LITEON CV8-8E128-HP

Storage Controller :

  1. Intel Chipset SATA/PCIe RST Premium Controller
  2. Microsoft Storage Spaces Controller



I want to upgrade total storage to 1TB, but want to check if this laptop can support 1TB SSD or not and whats is compatible SSD for this Laptop model.



Any suggestion ?

7 REPLIES 7
Level 11
Level 11
2,453 2,394 294 913
Message 2 of 8
882
Flag Post
HP Recommended

Upgrade SSD on HP 14-dq1033cl

Hello @roydonp,



Yes, you can upgrade your M.2 SSD to a larger capacity M.2 or NVMe PCIe SSD. Samsung EVOs are pretty good although there have been a few reports on the forum of incompatibility.



One SSD that was recommended by an HP Expert, Mr. Huffer, was the Samsung PM961 which is essentially a Samsung EVO 950. You also have some options from Crucial here.



Replacement procedures begin on page 32 of the Maintenance and Service Guide here



Regards,

Eddy

Level 19
Level 19
79,750 79,646 9,861 21,294
Message 3 of 8
878
Flag Post
HP Recommended

Upgrade SSD on HP 14-dq1033cl

@roydonp



Its specs



    https://support.hp.com/au-en/document/c06463284



It has  128 GB M.2 SSD (SATA) now. you can upgrade to 1TB using  (NVMe):



   https://www.crucial.com/usa/en/hp-14-dq1033cl/CT16305113



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.
roydonp
Level 1
9 7 0 0
Message 4 of 8
665
Flag Post
HP Recommended

Upgrade SSD on HP 14-dq1033cl

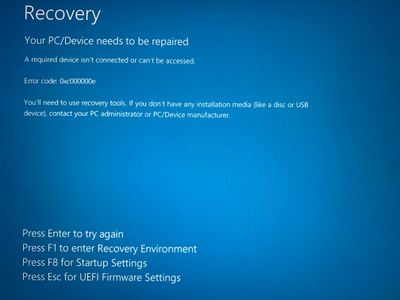

I cloned the original SSD to new one, but laptop failed to boot with following message






Reply
0 Kudos
garylink
New member
2 2 0 0
Message 5 of 8
218
Flag Post
HP Recommended

Upgrade SSD on HP 14-dq1033cl

I have a costco sourced HP 14-dq1033cl with the I5. I have upgraded the memory to 12G with no problem, but when I upgraded the SSD with a 2TB Sabrent Rocket the touchpad and wifi stopped working. I am guessing this has to do with PCI lanes, but would appreciate confirmation and any insights or workarounds anyone might have. When i put the original 125G ssd back in everything works.



Thanks

Gary

Reply
0 Kudos
sherip99
Level 4
78 67 2 6
Message 6 of 8
95
Flag Post
HP Recommended

Upgrade SSD on HP 14-dq1033cl

I have the same laptop but have not replaced the hard drive. Are you sticking with S Mode Windows? You might have better luck if you switch out of S Mode on the original drive, and clone it to the new drive.



There is another thread with info on getting the needed drivers installed on an M2 PCIe drive if using factory reset to put S Mode on the new drive.

Reply
0 Kudos
garylink
New member
2 2 0 0
Message 7 of 8
80
Flag Post
HP Recommended

Upgrade SSD on HP 14-dq1033cl

Hi. Yeah, first thing I did was take it out of S mode …. Also, the new SSD was working fine and I started installing a fresh copy of windows on it, but the absence of a touchpad and internet connection made that a bit challenging as well as purposeless. Something in the presence of the 2TB drive was interfering with other hardware on the computer.



Any thoughts?

Gary

Reply
0 Kudos
sherip99
Level 4
78 67 2 6
Message 8 of 8
70
Flag Post
HP Recommended

Upgrade SSD on HP 14-dq1033cl

Rather than a fresh install, can you get Windows the way you want it on the original drive? Just in case, download all the drivers from the product page to have handy if you need them. You can get there via the HP Support Assistant but might open in your browser behind the HP Support Assistant window. Install Macrium Reflect (free edition) and use it to make a clone to the new drive via a USB enclosure. Then hook up the new drive and see if everything works. If not, reinstall missing drivers from your downloads.



Might have to adjust partitions and such once you get everything working.

Reply
0 Kudos
