Windows 10 32bit Install to NVMe SSD

[MR002]

Hi,

I'm about to add a 256GB Samsung M.2 NVMe SSD to the laptop and use it as boot and system drive, and keep the HDD that came with the machine as a storage drive.

Can you please tell how to configure this setup?

[Echo_Lake]

@MR002
Welcome to HP Forums,

This is a great place to get support, find answers and tips,
Thank you for posting your query, I'll be more than glad to help you out 🙂

I see you need help in upgrading the SSD, on HP Notebook - 15-da0106nf. Don't worry as I have a few suggestions which should help you.

After reading your post, I did go through the Product specifications of your product and found that you have 1 TB 5400 rpm SATA hard drive installed on the PC.

Next thing, I would suggest here is to go through the Maintenance and Service guide of your HP notebook, and found that your PC supports NVMe, M.2 solid-state drives.

Hope this helps! Keep me posted for further assistance.

If I have helped you resolve the issue, feel free to give me a virtual high-five by clicking the 'Thumbs Up' icon below,

Followed by clicking on "Accept as solution" from the drop-down menu on the upper right corner,

Thank you for posting in the HP Support Forum.  Have a great day!

[MR002]

Hi Echo_Lake and thanks for your reply.

Indeed and as you mentioned, the laptop has a 1TB 5400 RPM SATA HDD. It also has a 16GB Intel Optane Memory that I can't use because it doesn't work with the OS version I'm running.

I knew earlier that the machine can support the M.2 NVMe SSD so I bought one. @Banhian helped me to know that here.

I'd like to know how to configure the setup I mentioned above (SSD as boot and system drive and the HDD as a storage one) and any help regarding this will be appreciated.

[Echo_Lake]

@MR002

Thank you for posting back.

Follow the below steps to configure:

1. Turn off the computer and wait five seconds.

2. Turn on the computer.

3. Immediately press the F10 key repeatedly, about once every second, until the Computer Setup program opens.

4. In the BIOS Setup utility, use the Right Arrow key to select the Storage tab.

1. Figure: Storage tab

1.

2. Use the Down Arrow key to select Storage Options, and then press Enter.

3. Next to Sata Emulation, select the controller mode you want, and then press F10 to accept the change.



Hope this helps! Keep me posted for further assistance.

[MR002]

Thanks for the reply Echo_lake.

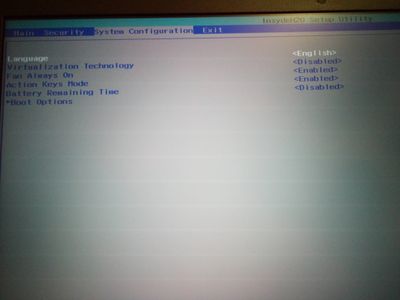

Couldn't do what you suggested because It looks like there's no Storage section in the BIOS. The photos below show all the BIOS tabs.

I did try to install the OS but it didn't work. Placed the SSD, enabled the Legacy Mode in the BIOS and during the installation process, I cleaned the SSD and converted it to MBR using Windows Diskpart tool. When selecting the SSD to install the OS on, Windows Setup says that Windows Can't be installaed on that drive. It also says, this computer's hardware may not support booting to this disk. Ensure that the disk's controller is enabled in the computer's BIOS menu.

.

[Echo_Lake]

@MR002

Thank you for posting back.

I appreciate your efforts to try and resolve the issue. As you've performed relevant troubleshooting steps

and the issue persists, this sounds like hardware related. And to help you out, I'm sending out a Private message to assist you with the next course of action. Please check your Private message icon on the upper right corner of your HP Forums profile Next, to your profile Name, you should see a little blue envelope, please click on it or simply click on this link: https://h30434.www3.hp.com/t5/notes/privatenotespage

[MR002 · Accepted solution]

Hi,

I could find a solution to this. Please see here (reply #8) for the details.

Thanks!

[Echo_Lake]

@MR002

Thank you for posting back.

I am glad to know that you managed to resolve the issue. Please reach out again for any further assistance.

Have a nice day ahead.
