‎02-07-2019 02:44 AM

HP Recommended
Product: HP Pavilion - 15-au114tx
Operating System: Microsoft Windows 10 (64-bit)

hi i want to upgrade my laptop witha 256 ssd m.2 i want to if my  HP Pavilion - 15-au114tx have a m.2 slot for ssd cause i cant find it please help me ...this is my laptop....if it has can u show me a picture ?please

1 ACCEPTED SOLUTION

Accepted Solutions

‎02-07-2019 07:05 AM

HP Recommended

OK. As you can see the M2 slot is missing from motherboard. So you can not install an M2 SSD. You could replace the hard drive with a 2.5" SSD such as the 2.5" Samsung 860 Evo or similar.



M2 missingM2 missing

Hope it helps,

David



View solution in original post

Was this reply helpful? Yes No
3 REPLIES 3

‎02-07-2019 04:08 AM

HP Recommended

Hi,

The service manual does mention M2 slot with support for M2 SATA3 SSD. However, sometimes notebooks that did not come with an M2 SSD are missing the physical slot on the motherboard.

M2 slotM2 slot

If the slot is present you can install an M2 SATA3 SSD such as the M2 Samsung 860 Evo or similar.

If the slot is not present you could replace the 2.5" Hard Drive with a 2.5" SSD.



Hope it helps,

David



Please click on thumbs up for thanks

Please click on accept as solution if answered your question

Was this reply helpful? Yes No

‎02-07-2019 04:38 AM

HP Recommended

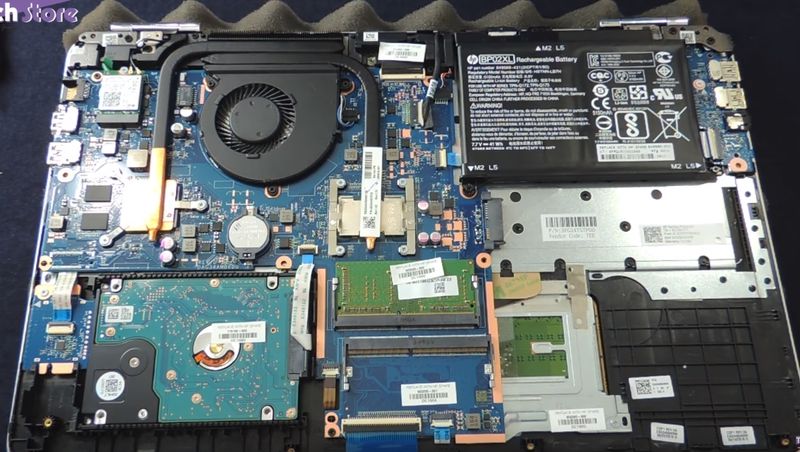

this is how my laptop inside looks like sirthis is how my laptop inside looks likethis is how my laptop inside looks like

Was this reply helpful? Yes No

‎02-07-2019 07:05 AM

HP Recommended

OK. As you can see the M2 slot is missing from motherboard. So you can not install an M2 SSD. You could replace the hard drive with a 2.5" SSD such as the 2.5" Samsung 860 Evo or similar.



M2 missingM2 missing

Hope it helps,

David



Was this reply helpful? Yes No
