‎08-22-2023 02:30 PM

HP Recommended
Product: HP EliteBook 835 G8 Notebook PC IDS Base Model
Operating System: Microsoft Windows 10 (64-bit)

hello Hp.

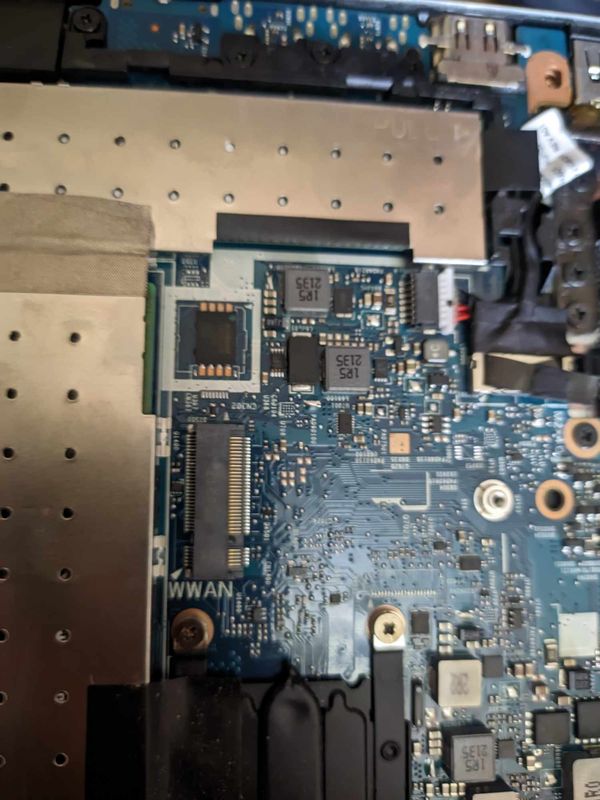

i bought this hp elitebook 835 g8 ryzen 5 5650u gen 3 for a good price deal. sadly it's a 256 GB version, So I wanted to upgrade my storage capacity to 512 GB or add another 512 gb. when i opened my device it looked like it has only 1 nvme m.2 slot but i found another small slot that i dont know if it's related to storage
I attached a picture of the slot, please tell me what is it ? and if it's an ssd slot367596892_7133616560001703_77692222375879929_n.jpg367523617_860293502122159_1650570169774768970_n.jpg

Category:
3 REPLIES 3

‎08-22-2023 03:25 PM

HP Recommended

Hi:



The slot you see is intended for a WWAN card as you can see from the writing below the slot.



The WWAN card is for a mobile broadband Wi-Fi adapter, and it is highly unlikely it will support any other device but one of those.



I don't know of anyone that has gotten a M.2 SSD to work in a WWAN slot and several have tried.

1 person found this reply helpful
Was this reply helpful? Yes No

‎08-23-2023 10:46 AM

HP Recommended

will an WESTERN DIGITAL black sn 770 or ww blue sn 570 work on the only nvme slot since there are no other slots sadly ?

Was this reply helpful? Yes No

‎08-23-2023 11:18 AM

HP Recommended

Yes, either would work, but since the WD Black 770 is PCIe Gen 4.0, it will only run at the speed allowed by your notebook's Gen 3 SSD slot, which would be around 3,500 MBPS.

Was this reply helpful? Yes No
