HP Spectre x360 - 13-4195dx (ENERGY STAR)
Microsoft Windows 10 (64-bit)

trying to find a source for a power button board for a HP Spectre x360 - 13-4195dx (ENERGY STAR)

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

That is the one electrical part that is not listed in the PartSurfer listing or in the Maintenance & Service guide.



Initially I considered that the switch might be part of the system board and that does appear to be the case.



If you have the notebook open, you will likely find a microswitch that is activated when the power button part of the notebook lower enclosure is slid toward the power on position.

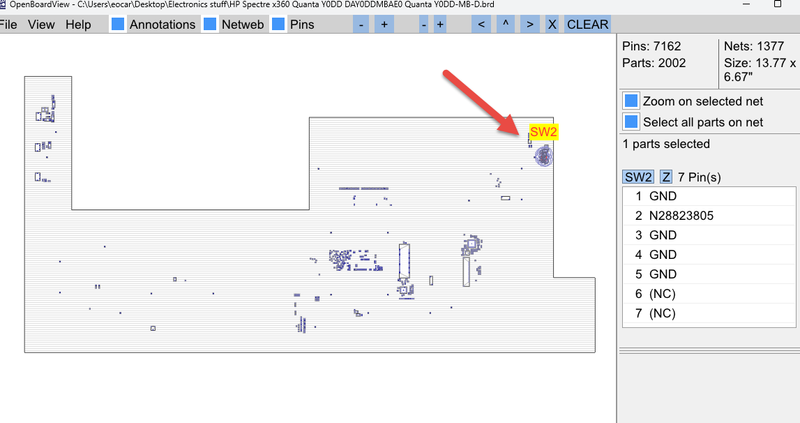

I just verified that by looking at the boardview file on OpenBoardView. The power switch is SW2 and it is on the system board.










I am a volunteer forum member. If my suggestion solved your issue, help others by marking that post as the accepted solution. Say thanks by clicking on the Yes button next to the "was this reply helpful?"



View solution in original post

3 REPLIES 3
HP Recommended

That is the one electrical part that is not listed in the PartSurfer listing or in the Maintenance & Service guide.



Initially I considered that the switch might be part of the system board and that does appear to be the case.



If you have the notebook open, you will likely find a microswitch that is activated when the power button part of the notebook lower enclosure is slid toward the power on position.



I just verified that by looking at the boardview file on OpenBoardView. The power switch is SW2 and it is on the system board.










I am a volunteer forum member. If my suggestion solved your issue, help others by marking that post as the accepted solution. Say thanks by clicking on the Yes button next to the "was this reply helpful?"



HP Recommended

Thanks for your efforts. I was not aware of the open board listings.  Also the part listing I had did show a separate power-on board but I must have gone to the wrong product page.



Thanks for the help, now I just have to find the switch itself.

Regards, Dan

HP Recommended

You're  welcome.



-Eric



I am a volunteer forum member. If my suggestion solved your issue, help others by marking that post as the accepted solution. Say thanks by clicking on the Yes button next to the "was this reply helpful?"
