HP ENVY 16 inch Laptop PC 16-h0000 (534C7AV)
Microsoft Windows 11

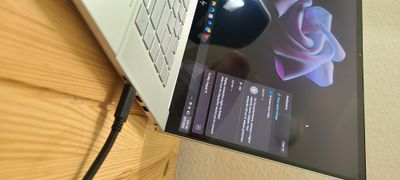

When I connect my envy 16 to the LG monitor (32QP880-B) via the thunderbolt 4 port, the monitor receives no signals. The USB-C port on the LG monitor support display, data transport, and 96 W PD delivery. There is a notification on the PC that "display connect might be limited". The PC is not charging either. It seems the LG monitor uses DP alt mode to transport data. The thunderbolt 4 on my PC does not support this mode? How can I solve this problem?

Thanks in advance.


8 REPLIES 8
HP Recommended

@Kerr58



What is the model/product of your HP ENVY 16 inch Laptop PC 16-h0000 (534C7AV) . It should have



  • 2 x USB Type-C (Thunderbolt 4 with USB4 SuperSpeed 40 Gbps signaling rate, USB Power Delivery, DisplayPort 1.4, HP Sleep and Charge),
  • 1 x USB Type-A (SuperSpeed 10 Gbps signaling rate,
  • HP Sleep and Charge)

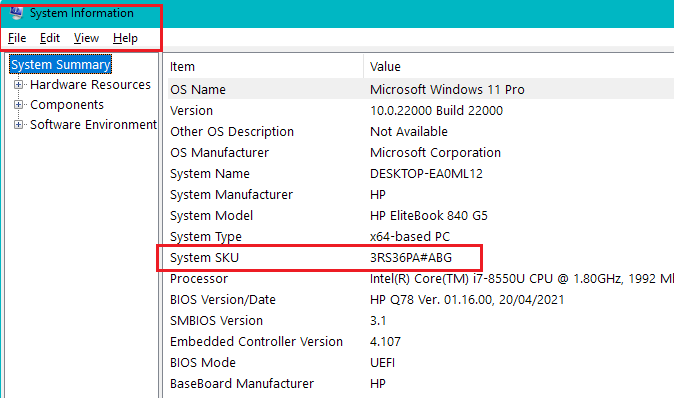

Yes, its  Thunderbolt™ 4 ports support Alt mode. You can use System info to find out what it is for example






Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.




HP Recommended

Hi Banhien,



Thanks for the confirmation. The issue is that the thunderbolt 4 cannot be connected to the monitor with the type-c port, and the laptop is not charging either (the type-c port on the monitor provides 96 W PD). do you know what is the issue and how can I solve this. is there any thunderbolt 4 driver needed?

The monitor and the type-c port work perfectly with my Mac air, which has a thunderbolt 3.



Thanks and best regards,

HP Recommended

@Kerr58



I did ask what is your machine (its system SKU) ? Without knowing what is it, sorry I can't say.



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.




HP Recommended

Hi,



the system sku is 6P6Z8UA#ABA. Please let me know if any information else is needed.



Thanks,

Kerr

HP Recommended

Hi Banhien,



I was not able to mention you. Can you see the message? Do you need any information else to inspect this problem?



Thanks,

Kerr

HP Recommended

@Kerr58



I can't find the specs of machine 6P6Z8UA. Anyway, it should have same ports with the following machine (P/N: 6D8Y7EA #ABU)



                    HP ENVY Laptop 16-h0000na



which says it has
2 Thunderbolt™ 4 with USB4™ Type-C® 40Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge) ports.



Yes, they supports Alt mode also charge using USB-C ports.



Regards.

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.




HP Recommended

Try to use 100W Adapter with 20V/5A. Or Thunderbolt dock station with 100w charging.
I hope it will be solve

HP Recommended

@AlexPokatilov



No, 100W is too weak. It needs at least 150W



Regards

BH
***
**Click the KUDOS thumb up on the left to say 'Thanks'**
Make it easier for other people to find solutions by marking a Reply 'Accept as Solution' if it solves your problem.
