HP Recommended
HP ENVY x360 - 13-ag0002ns
Microsoft Windows 10 (64-bit)

How can I connect my laptop HP ENVY x360 - 13-ag0002ns with two external display monitors?

Is there any hardware required for that?

8 REPLIES 8
HP Recommended

@tdmko



Welcome to HP Support Community


This Notebook has the USB Type- C thunderbolt port which you can use to connect external monitors. Since you wish to connect 2 external monitors, then you will need a Splitter.





You can purchase it from any computer store



Hope this helps. 😊



If the information I've provided was helpful, give us some reinforcement by clicking the "Solution Accepted" on this Post and it will also help other community members with similar issue.

KrazyToad
I Am An HP Employee

HP Recommended

Is with tha above splitter going to have a connection with two external monitors in "clone" desktop or "expanded" desktop envinronment?

HP Recommended

As far I know this laptop has a USB 3.1 Type-C™ Gen 2 which is not a thunderbold port

HP Recommended

@tdmko



The User Guide: https://support.hp.com/ca-en/product/hp-envy-13-ag0000-x360-convertible-pc/20270313/model/22425077/m... seems to be generic and if you do not see the Thunderbolt symbol on the USB type-C port, then it must be just a regular USB 3.1 Type-C™ Gen 2



If your Notebook Model does not have the USB Type-C Thunderbolt, you will not be able to connect any external display



If the information I've provided was helpful, give us some reinforcement by clicking the "Solution Accepted" on this Post and it will also help other community members with similar issue.

KrazyToad
I Am An HP Employee

HP Recommended

Actually the user guide is very specific as you can read from the below link:

https://support.hp.com/ca-en/product/hp-envy-13-ag0000-x360-convertible-pc/20270313/model/22425077/d...

showing the extrnal ports as follows:

1 USB 3.1 Type-C™ Gen 2 (Data Transfer up to 5 Gb/s, Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge); 2 USB 3.1 Gen 1 (1 HP Sleep and Charge); 1 headphone/microphone combo.

Anyway,  does this mean that i cannot connect any external monitor even if I connect it with other devices such as a docking station?

HP Recommended

@tdmko



If you do not have the Thunderbolt port you cannot connect any external monitors even if you use a docking station





KrazyToad
I Am An HP Employee

HP Recommended

So, in order to get things clear, you are saying that this particular  port USB 3.1 Type-C™ Gen 2 (Data Transfer up to 5 Gb/s, Power Delivery, DisplayPort™ 1.4) of the laptop cannot tranfer display signal to extenar monitors?

HP Recommended

@tdmko



My apologies for the confusion

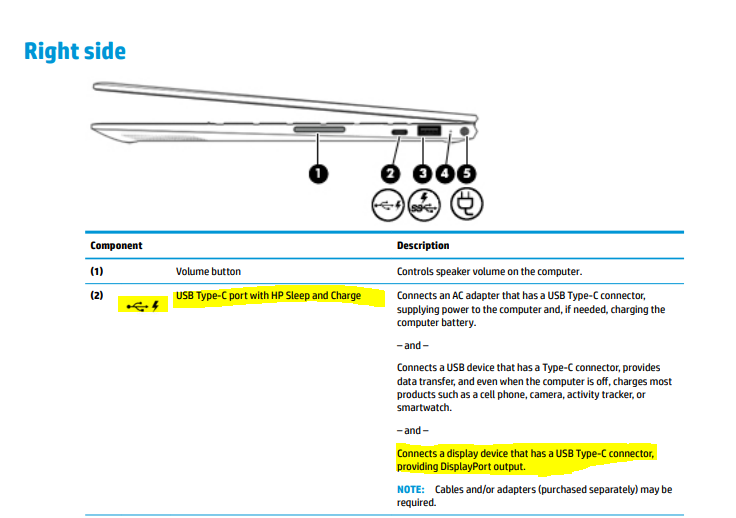

As mentioned earlier, the User Guide: https://support.hp.com/ca-en/product/hp-envy-13-ag0000-x360-convertible-pc/20270313/model/22425077/m... on page 5 shows that this Notebook should be having the USB Type-C Thunderbolt





If you have the same port, then you should be able to connect external displays using the splitter or docking stations



You can also refer to this Link: https://support.hp.com/in-en/document/c04723006



Thank you

KrazyToad
I Am An HP Employee
