Dear all,

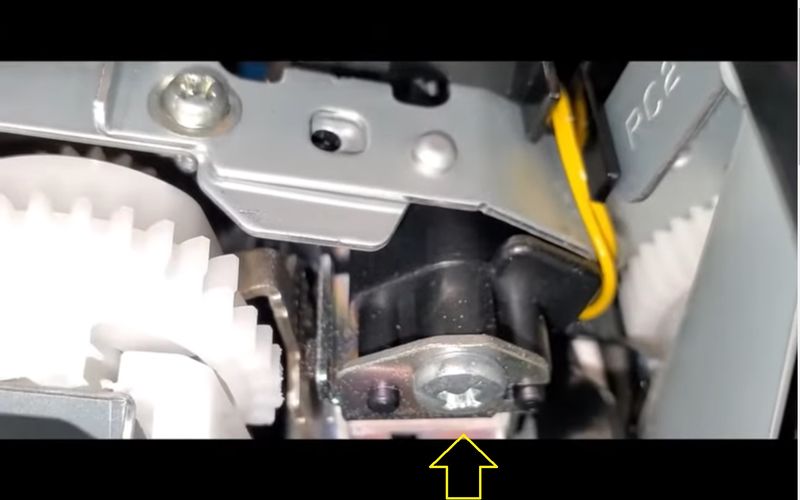

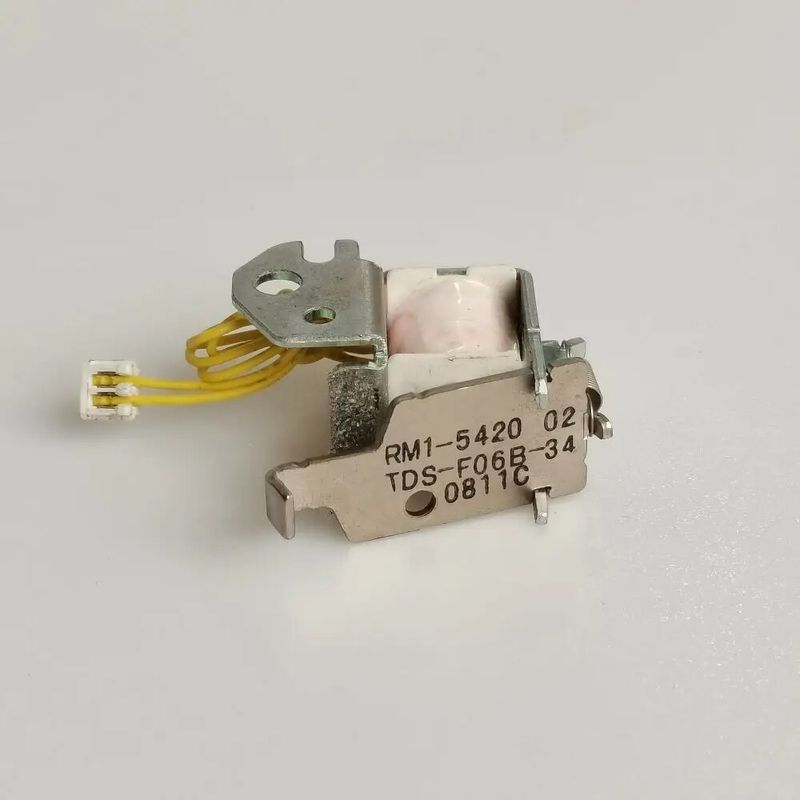

In order to replace the flapper solenoid which is located in the upper body of M451dn., I would like to find its part number. (It may be RM1-5420-000, RM1-5423-000, and the like.)
Thank you very much in advance for your kind attention.
1 ACCEPTED SOLUTION
Accepted Solutions
HP Recommended
Solenoids are often not listed as an available part, especially on lower end products like this. Most of the solenoids are interchangeable anyway as long as the arm is the right length. The only solenoid listed in the service manual is the MP tray solenoid.
If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
HP Recommended
You need to add a CN to the end of the part numbers. The first number you list looks valid but is not available to the general public from HP, only to service centers. The second number does not show at the HP Parts Store.
If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
4
0
0
HP Recommended
4
0
0
HP Recommended
P.S.

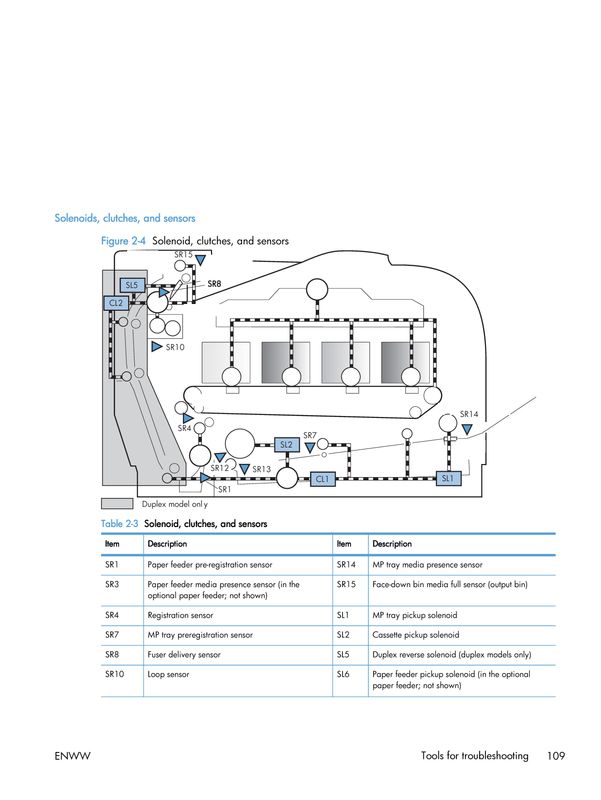

The solenoid in question may be referred to as "Duplex Reverse Solenoid" in the service manual.
HP Recommended
Solenoids are often not listed as an available part, especially on lower end products like this. Most of the solenoids are interchangeable anyway as long as the arm is the right length. The only solenoid listed in the service manual is the MP tray solenoid.
If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
4
0
0
HP Recommended
