Spring in upper left of fusing assembly

HP Recommended
HP Color LaserJet Pro MFP M479fdw

the rear of the printer facing me there is a spring that popped off in duplex fusing assembly cannot seem to figure out where it goes.

4 REPLIES 4
Repairatrooper
Level 13
Level 13
7,767 7,678 816 2,247
Message 2 of 5
Flag Post
HP Recommended

Post a picture of the part please.

If you find the information provided useful or solves your problems, help other users find the solution easier by giving kudos and marking my post as an accepted solution.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.


0 Kudos
KGeary
Author
New member
3 2 0 0
Message 3 of 5
Flag Post
HP Recommended

Here are the pictures, any help would be greatly appreciated...



ThanksWhere the circle is was where I found the springWhere the circle is was where I found the spring20210224_163947.jpg

0 Kudos
Repairatrooper
Level 13
Level 13
7,767 7,678 816 2,247
Message 4 of 5
Flag Post
HP Recommended

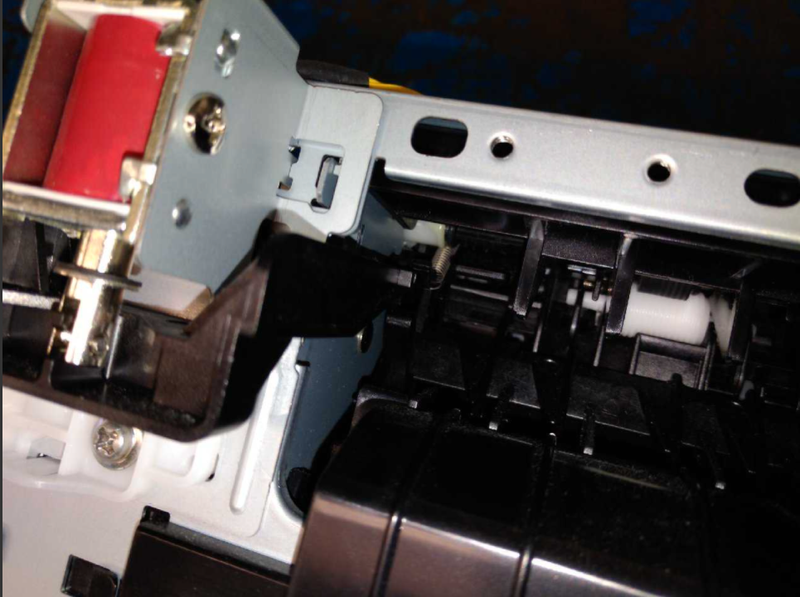

Spring connects to the black lever for the duplex solenoid






And to the plastic nib on the top guide




If you find the information provided useful or solves your problems, help other users find the solution easier by giving kudos and marking my post as an accepted solution.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.


0 Kudos
KGeary
Author
New member
3 2 0 0
Message 5 of 5
Flag Post
HP Recommended

Is there anyway you could use a flash, I cannot tell what it is hooking to.



Thanks in advance

0 Kudos
