print is missing half of the image

[ubuibm3]

printing on glossy sticker paper and the image is not coming out properly, it's missing the top part

[Dragon-Fur]

@ubuibm3

Welcome to the HP Community --

"Glossy sticker paper" is not a supported paper type.

From your description the paper is perhaps not feeding correctly --

For example, the paper might be slipping or sticking when it passes through the printer.

There is no solution for using unsupported paper.

Possible Workaround

Try a different paper type selection and make sure the printer is clean and (therefore) ready to do its best work.

Paper Selection

IF the sticker paper you are using is heavy enough -- but not too heavy -- you might try setting the paper size and then the paper type to "Brochure / Professional - Glossy".

After alerting the printer to the change in paper type, be sure you follow up with changing the paper type in your print dialog (application / program you are using to submit the job to the printer).

Will cleaning the printer and trying a different paper type work?

Maybe.

Open > Printer Product Home

Select printer model

Open Category Manuals > Find and open User Guide

Find and read the instructions for “Load Paper” or “Load Media” (wording varies)

Check / Reload paper

Open printer drawer > Lift paper from the tray > Replace paper

Wait a few seconds > Close Tray

Next,

Immediately check the printer control panel for a message to adjust / set the paper size / type

OR

HP Smart > Printer Settings > Advanced (opens EWS)

OR

Use the Embedded Web Server (EWS) to check / adjust the paper size / type - Tray and Paper

Selecting Paper Types in EWS

Paper type selections available in EWS -- and at the printer when that printer includes a text-input capable Printer Control Panel -- are different from the paper type selections found in the application / software used to configure the print job.

Select a paper type in Tray and Paper that -- as close as possible -- matches the paper type you are using and is selected in the printer software / application you are using to open, view, configure, and submit the job to the printer.

Open your Browser > Type / enter the Printer IP address into URL / Address bar

Tab Settings > Preferences > Tray and Paper (Management)

Select / Adjust settings for Paper Size / Type

Model and EWS version Dependent:  Advanced section

Click Apply to save changes

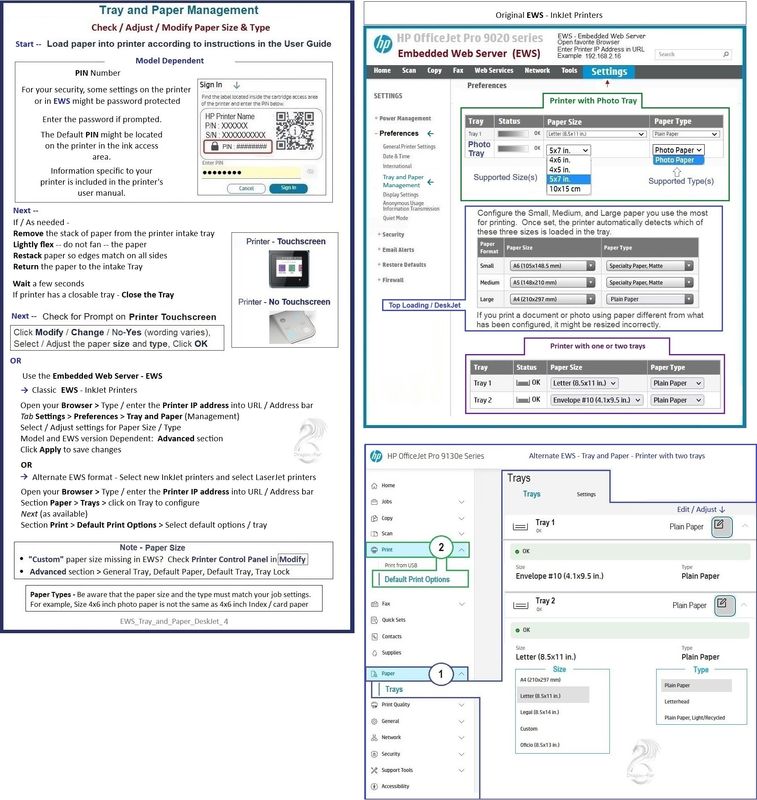

General Example - EWS - Tray and Paper

EWS_Tray_and_Paper_DeskJet_4

===================================

Message Content References

Technology Tips - Video Gallery from our HP Expert greenturtle

 Technology Tips– YouTube Video Help for Printers

-------------------------    --------------------------------

 User Guide – OfficeJet Pro 8020e Series

-------------------------    ---------------------------------

Notes – Paper Types

Photo Paper might be supported to 250 gsm, or, if specified, to 280 or 300 gsm.

Supported photo paper types vary – Photo paper types, sizes, and weights are printer model dependent.

For example, HP Advanced Photo paper is 250 gsm.

Do not select Photo paper if you are actually using a different paper type.

Do not attempt to use 300 gsm photo paper in a printer that does not support paper in that weight class.

Index card paper is an ISO paper type.

On a printer that supports “card paper”, HP Card paper -- unless otherwise specified -- is defined as Card / Index paper and is generally supported to 200 gsm.

If “card” paper is not listed in the Specifications, paper in this weight class might NOT be supported.

HP Brochure and HP Professional paper are typically the same weight.  Brochure paper comes in two print surfaces:  Matte and Glossy.  HP Brochure / Professional papers are 180 gsm in weight.

HP Presentation Paper is a lighter weight “brochure” type paper at 120 gsm.

If the “heavy” paper type is generally supported but is not listed in the job configuration Properties, select the closer alternative: For example, in Properties > select “Brochure” / “Professional”.

Plain Paper is typically defined as standard office paper at 16-24 lb in weight.

-------------------------    ---------------------------------

Printer - Media Specifications

Media Handling, Document Finishing	Sheet feed
Media Size (facet)	Letter; A4; Legal; B5
Media Sizes Custom (imperial)	Tray 1: 3 x 5 to 8.5 x 14 in
Media Sizes Custom (metric)	Tray 1: 76.2 x 127 to 215.9 x 355.6 mm
Media Types	Plain Paper, HP Photo Papers, HP Matte Brochure or Professional Paper, HP Matte Presentation Paper, HP Glossy Brochure or Professional Paper, Other Photo Inkjet Papers, Other Matte Inkjet Papers, Other Glossy Inkjet Papers, Thick Plain Paper,Light/Recycled Plain Paper,HP Tri-fold Brochure Paper, Glossy
Media Weight Recommended (imperial)	16 to 28 lb (plain paper); 60 to 75 lb (photo); 20 to 24 lb (envelope); 90 to 110 lb (card)
Media Weight Recommended (metric)	60 to 105 g/m² (plain); 220 to 280 g/m² (photo); 75 to 90 g/m² (envelope); 163 to 200 g/m² (card)
Media Weights Supported, By Paper Path (Imperial)	16 to 28 lb (plain paper); 60 to 75 lb (photo); 20 to 24 lb (envelope); 90 to 110 lb (card)
Media Weights Supported, By Paper Path (metric)	60 to 105 g/m² (plain); 220 to 280 g/m² (photo); 75 to 90 g/m² (envelope); 163 to 200 g/m² (card)

=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=

References / Resources

HP Printer Home Page - References and Resources

Learn about your Printer - Solve Problems

“Things that are your printer”

When the website support page opens, Select (as available) a Category > Topic > Subtopic

NOTE: Content depends on device type and Operating System

Categories: Warranty Check, Alerts, Troubleshooting, Ink & Paper, HP Software & Drivers / Firmware Updates, Setup & User Guides, Product Specifications, Account & Registration, Warranty & Repair

Open

 Product Home - Printers

 Enter the device type and model name of your HP product

OR

 Select a saved product from HP Account Dashboard

OR

HP OfficeJet Pro 8025e All-in-One Printer
