Locked

‎09-20-2021 02:14 AM

HP Recommended
Product: P3005X
Operating System: Linux

After installing a (brand new) EIO hard disk (J7989G) my LJ P3005X is stuck in one of the last init process steps.

Display shows "6/6", the animated HP logo and "B/F", Status and error LED flash consecutively (from left to right). No reaction via the network. Without the EIO disk installed startup is normal and the printer works as expected.



I did not find any information abot what happens on this startup stage, so I'm stuck also 🙂



HP LJ P3005X with additional paper cassette

Firmware 20141217 02.190.3 (AFAIK the latest version)

Additional Memory is 256 MB (320 MB total)

Toner cartridge is recognizes als "original HP" on "normal" startup.

User manual and service manual are available.



Thanks in advance



Stefan

Kind regards,
Stefan
Tags (2)
Category:
1 ACCEPTED SOLUTION

Accepted Solutions

‎10-02-2021 04:24 PM

HP Recommended

The final solution:  Replacing the formatter board. (The seller was very helpful and sent me a formatter board in advance.) The printer runs fine since then.









Kind regards,
Stefan

View solution in original post

Tags (2)
Was this reply helpful? Yes No
12 REPLIES 12

‎09-20-2021 03:21 AM

HP Recommended

Update: After 2 hrs waiting I restarted the printer. Now startup was stuck at "4/6".

After removing the EIO disk the printer started up normally.

Kind regards,
Stefan
Was this reply helpful? Yes No

‎09-20-2021 04:42 AM

HP Recommended

Is the HDD 100% working?

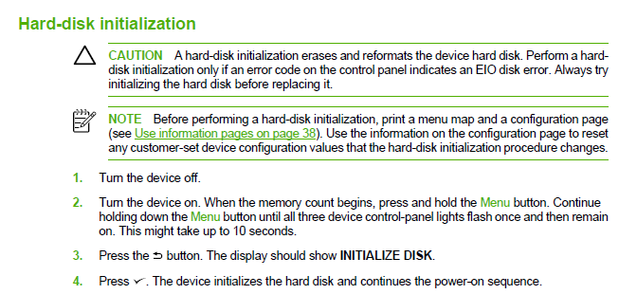

Did you tried disk initialization:









My profile on LinkedIn

Was this reply helpful? Yes No

‎09-20-2021 05:08 AM

HP Recommended

Yes, I did, as described in the service manual. No change, startup is still stuck in stage "4/6".



What time für the inital disk setup should I expect? I have done a disk init before (on a LJ 4200 with J6054B (20 GB ATA). Disk init took some minutes, but not hours, as here.

Kind regards,
Stefan
Was this reply helpful? Yes No

‎09-20-2021 05:11 AM

HP Recommended

Minute or two, you might have a defective HDD




My profile on LinkedIn

Was this reply helpful? Yes No

‎09-20-2021 05:20 AM

HP Recommended

To test that i made a disk dump (with dd). Could read the complete disk without errors.



As I'm not so deep in this topic: Could I swap the disk with any other small SATA-Disk up to 80 GB?

I presume that I need to do a disk init then, right?

Kind regards,
Stefan
Was this reply helpful? Yes No

‎09-20-2021 05:34 AM

HP Recommended

You can install a small capacity disk for testing purposes and the initialization must be run to make it work.




My profile on LinkedIn

Was this reply helpful? Yes No

‎09-20-2021 11:45 AM

HP Recommended

Swapped the disk to a Toshiba 80GB SATA (before: Fujitsu 80 GB SATA), installed the EIO module in the printer and performed a disk init.

Startup continued until stage "5/6" - "B/F". LED cycle runs, HP logo is animated.

Let it run the whole afternoon but no change.

(The new disk had been overwritten with dd before, no errors.)



I`m trying to get another EIO disk module for testing.

Kind regards,
Stefan
Was this reply helpful? Yes No

‎09-20-2021 03:27 PM

HP Recommended

Repeated disk init two more times. Startup always continued until "5/6" "D/F" and stayed at this stage.



Does anyone know what is done at this point?

Kind regards,
Stefan
Was this reply helpful? Yes No

‎09-20-2021 05:28 PM

HP Recommended

There is an old archive thread about the same problem. Would work with very old firmware but the newer ones. There was no resolution on that post.

If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



Was this reply helpful? Yes No
