‎04-27-2022 05:04 AM

HP Recommended

Hi,

How do I remove the control panel to change the backup battery that keeps the date and time?

Category:
5 people had the same question
6 REPLIES 6

‎04-27-2022 06:36 AM

HP Recommended

The screws on the bottom are holding the control panel attached to the scanner.  Not sure will you be able to access the screws while the scanner is attached, you might need to remove the complete scanner first.

Once screws are removed the plastic hooks hold the front side of the control panel to a scanner.




My profile on LinkedIn

Was this reply helpful? Yes No

‎04-28-2022 07:09 AM

HP Recommended

Thanks! I got the three screws out but then nothing moved much. Didn’t want break anything so I left it for now. Which way I should move the control panel to get it out?

Was this reply helpful? Yes No

‎04-28-2022 07:19 AM

HP Recommended







My profile on LinkedIn

1 person found this reply helpful
Was this reply helpful? Yes No

‎04-29-2022 04:42 AM

HP Recommended

Thanks again. Got it out this time but to my surprise there was no battery. The manual says that date&time will be held as long as the power cord us connected. Something must be broken or the battery is somewhere else. Any ideas?

Was this reply helpful? Yes No

‎04-29-2022 09:20 AM

HP Recommended

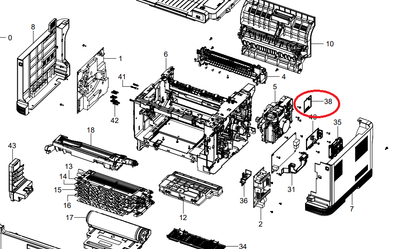

If not on the control panel then the battery is on the ADF board









My profile on LinkedIn

4 people found this reply helpful
Was this reply helpful? Yes No

‎04-30-2022 07:10 AM

HP Recommended

Found it, changed and works now! Thanks!

Was this reply helpful? Yes No
