scan to network drive does not work - HP Color Laser Jet Pro MFP 3302fdw

[Ebsekarl]

I setup the "scan to network" like shown in HP-Videos via HP embedded Web server, but it doesnt work.

If i choose the setup on the touchscreen the green "send" button is not activated, but i cant find any error message or log to view after possible errors.

The network drive which i want to send the documents from the scan to, is easy accessable via windows explorer and i can add files there manually.

There is no auth necessary to access the folder, but i tried even with the admin user it doenst work.

[Dragon-Fur]

@Ebsekarl

Welcome to the HP English Community --

What is wrong?

Not sure --

You could try restarting the printer and perhaps the computer.

Should not be an issue, though, so try or not.

On the printer side, the SMB should already be set correctly.

Example

Open your Browser > Type / enter the Printer IP address into URL / Address bar

Section Network > Network Security > Tab SMB > Select SMB 2 and 3

EWS_9135_Network_Network_Security_SMB_2

==========================================

The "Quick Sets" method is similar in many ways to the old "Profile" setup.

Quick Sets are created in EWS (Embedded Web Server).

User Guide – HP Color LaserJet Pro MFP 3301-3304/3388 Series

Page 34

Two samples -  Scan to Network Folder defaults and Quick Set (Profile)

Open your Browser > Type / enter the Printer IP address into URL / Address bar

Section Scan > Scan to Network Folder (Job Defaults)

and

Open your Browser > Type / enter the Printer IP address into URL / Address bar

Section Quick Sets > Add / Edit / Copy / Delete Quick Set Profile

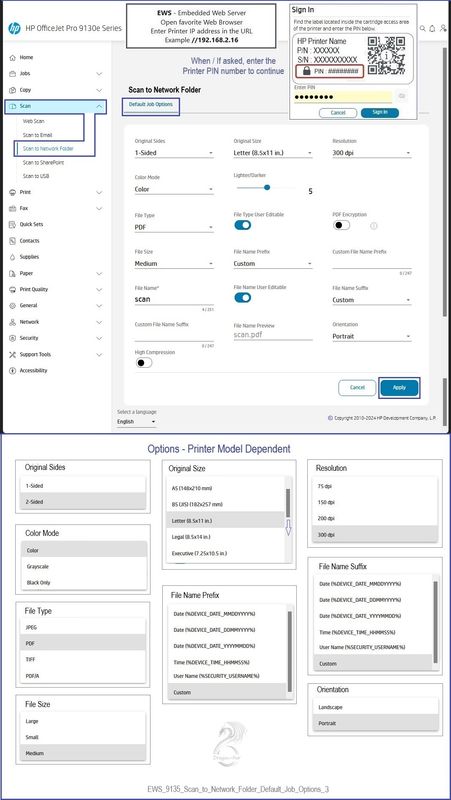

EWS_9135_Scan_to_Network_Folder_Default_Job_Options_3

and

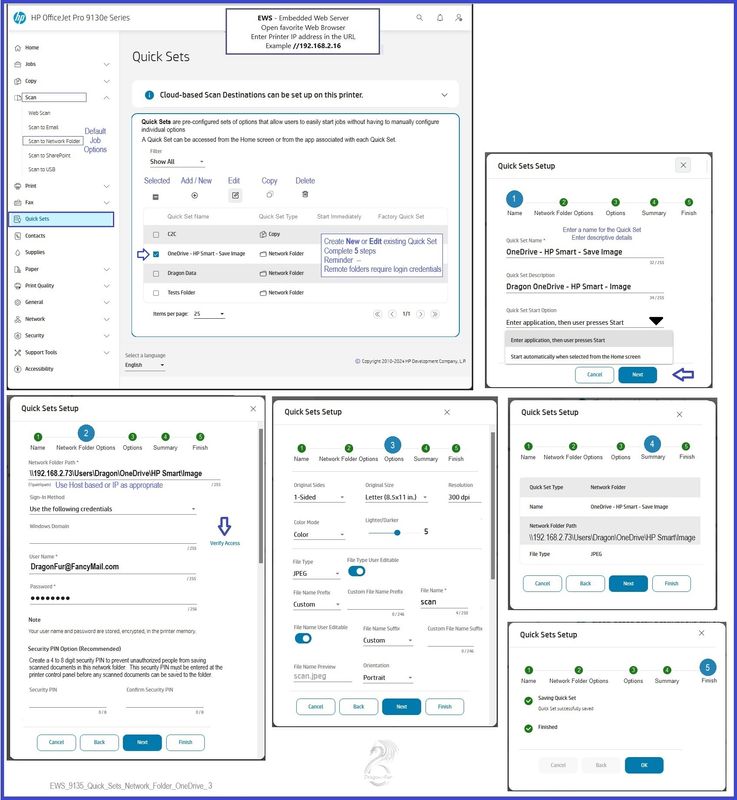

EWS_9135_Quick_Sets_Network_Folder_OneDrive_3

=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=

References / Resources

HP Printer Home Page - References and Resources

Learn about your Printer - Solve Problems

“Things that are your printer”

When the website support page opens, Select (as available) a Category > Topic > Subtopic

NOTE: Content depends on device type and Operating System

Categories: Warranty Check, Alerts, Troubleshooting, Ink & Paper, HP Software & Drivers / Firmware Updates, Setup & User Guides, Product Specifications, Account & Registration, Warranty & Repair

Open

 Product Home - Printers

 Enter the device type and model name of your HP product

OR

 Select a saved product from HP Account Dashboard

OR

HP Color LaserJet Pro MFP 3302fdw
