‎05-04-2021 12:12 PM - edited ‎05-04-2021 01:02 PM

HP Recommended
Product: HP Designjet T790ps 24 in
Operating System: Microsoft Windows 10 (64-bit)

I recently acquired a plotter for my office. I don't print much but really need to be able to every once in a while.

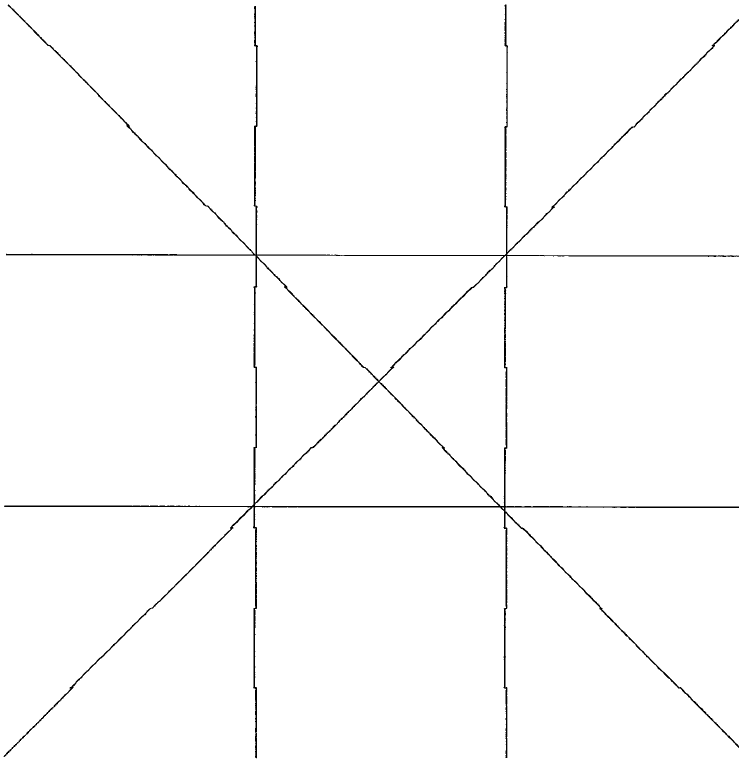

It prints horizontal lines (ones in line with the printer) straight but diagonal and vertical lines are broken. It is very consistent. I have bought new printer heads, cleaned it, and aligned printerheads. Below is a snip of what is going on. #1 from printer and #2 from autocad.



 

 Plot 2.PNGPlot 1.PNG







 



Thank you for any help.

Category:
3 REPLIES 3

‎05-04-2021 12:45 PM

HP Recommended

Have you performed the paper feed calibrations. I do not see a picture attached so I am kinda guessing. You may also need to print at a higher quality setting depending on media.

If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



Was this reply helpful? Yes No

‎05-04-2021 12:55 PM

HP Recommended

I have done the paper feed calibration and it is set on best quality.

I can't get my snips to show up on this post....standby!

Thank you for your help.

Was this reply helpful? Yes No

‎06-25-2021 10:27 AM

HP Recommended

Here's an update. If I save my Cad drawings as a PDF and use a thumb drive directly in the printer, it prints perfectly. If I print in any format from my computer, I get the hashed lines.

Was this reply helpful? Yes No
