[FAQ] Do Poly IP Phones support the SCEP Protocol?

SteffenBaierUK · ‎02-23-2024

Do any Poly Phones support SCEP?

The following Poly Phones support SCEP (based on the latest software:

VVX running UC Software
CCX Phones
Edge E Phones
Poly Trio Phones

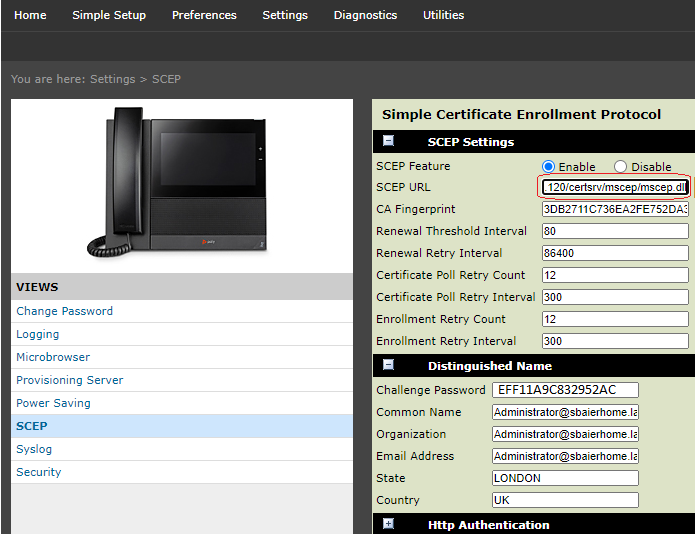

Settings > SCEP > SCEP Settings

Example List of SCEP Server Vendors

Cisco ISE
Microsoft (NDES) Network Device Enrollment Service
OpenCA OpenSCEP
Meraki Ascertia
Nexus Certificate Manager cryptlib
jcep EJBCA
OpenTrust PKI Dogtag
wolfSSL CyaSSL
Miktrotik Sscep
XiPki
Open source CA
OCSP responder
OSGI-based

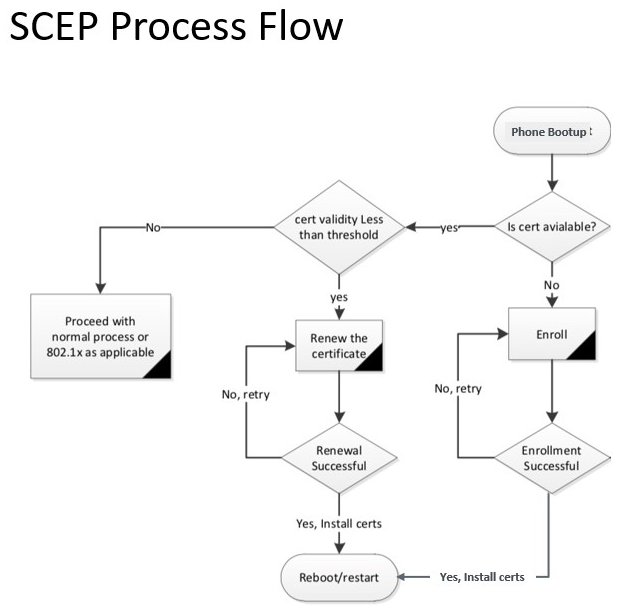

SCEP Process Flow

Settings > Network > TLS > Certificate Configuration > CA Certificates:

Settings > Network > TLS > Certificate Configuration > Device Certificates:

Another good source can be found >here<

Configuration Enhancement:

Since UC Software 7.2.1 and later when using the SCEP.csr.commonName parameter with the default null setting,

<change SCEP.csr.commonName=""

The phone now automatically uses its Product Name and MAC address for the common name (CN) when it generates a CSR. Before this, it was a manual field that needed to be set on a per-device setting.

1016111919|scep |3|00|  Subject: /C=UK/ST=Greater VoiceWorld/L=MyTown/O=MyOrganisation/OU=MyOrganisationUnit/CN=CCX70064167FDFD123

Since PVOS 9.0.0 the phone now only uses its MAC address for the common name (CN) when it generates a CSR. Example a CCX will show in the logs:

1016111919|scep |3|00|  Subject: /C=UK/ST=Greater VoiceWorld/L=MyTown/O=MyOrganisation/OU=MyOrganisationUnit/CN=64167FDFD123

Another Field was added via:

SCEP.csr.organizationUnit

Troubleshooting:

SCEP Logging Example

<web log.render.level="0" log.level.change.scep="0"/>

Logs:

1024070742|so   |*|00|SCEP Feature is enabled
024070837|scep |*|00|Initial log entry. Current logging level 0
1024070837|scep |4|00|scepHandler started
1024070837|scep |4|00|StateTransistion NewState 1
1024070837|scep |5|00|displayScepWarningMsg  -1
1024070837|scep |5|00|TranslateWarnMsg NOT handled: PkiStatus -1
1024070837|scep |1|00|StateTransistion from 0 to NewState : Init
1024070837|scep |1|00|StateTransistion  to NewState : Init
1024070837|scep |0|00|ScepEventHandler Event 2
1024070837|scep |1|00|ScepEventHandler Event INITIALIZE
1024070837|scep |2|00|SCEP check  MissingCfg
1024070837|scep |4|00|ScepInit::scepMsgQId 171
1024070837|scep |0|00| ScepCurlInterface::createInstance
1024070837|scep |2|00| ScepInit::onInit scep url : http://10.221.10.102/certsrv/mscep/mscep.dll
1024070837|scep |2|00|URLwithHost = 10.221.10.102 s->scepServerUrl = http://10.221.10.102/certsrv/mscep/mscep.dll
1024070837|scep |2|00|----- URLwithHost = 10.221.10.102, scepData.scepServerUrl http://10.221.10.102/certsrv/mscep/mscep.dll
1024070837|scep |2|00|scepData.hostName = 10.221.10.102 scepData.scepURI = /certsrv/mscep/mscep.dll scepData.hostPort = 80, len = 20
1024070837|scep |4|00|ScepInit::onInit Device certificate not installed
1024070837|scep |5|00|scepCertValidity  read_cert failed with ret 93
1024070837|scep |5|00|scepExpiryDuration  read_cert failed with ret 93
1024070837|scep |5|00|scepCertValidFor validFor 0
1024070837|scep |5|00|scepTime2Renewal validFor 0 RenewalThreshold 80
1024070837|scep |5|00|ScepInit::onInit cert RenewalDuration 0 seconds RenewalTrigger 0 seconds isDevCertNotAvailable 1
1024070837|scep |0|00|ScepEventHandler Event 3
1024070837|scep |1|00|ScepEventHandler Event GETCA_RA
1024070837|scep |1|00|scepLIB: scep msg: /certsrv/mscep/mscep.dll?operation=GetCACaps&message=CACapsIdentifier
1024070837|scep |2|00|scepLIB: Use CURL for HTTP(s) ? 0x56c820
1024070837|scep |0|00|ScepCurlInterface::CurlRequest
1024070837|scep |0|00|ScepCurlInterface::CurlRequest m_bIsSecure: 0
1024070837|scep |0|00|[CurlRequest]configured values SCEPUsername:
1024070837|scep |0|00|[CurlRequest] concatURL url:http://10.221.10.102/certsrv/mscep/mscep.dll?operation=GetCACaps&message=CACapsIdentifier
1024070837|scep |1|00|[connectToProxy] WPAD feature is disabled for mode '3'
1024070837|scep |3|00|[connectToProxy] Using DIRECT proxy for mode '3'
1024070837|scep |4|00|[CurlRequest] Proxy connect result '0'
1024070837|scep |0|00|[CurlRequest] hostPort:80
1024070837|scep |0|00|[CurlRequest]scephttpusername and scephttpuserpassword NOT configured
1024070837|scep |0|00|[CurlRequest]scephttpusername and scephttpuserpassword NOT configured
1024070837|scep |*|00|ScepCurlInterface::CurlRequest  Hostname  = 10.221.10.102 => dns addr = 10.221.10.102,
1024070837|scep |1|00|CURLINFO   : About to connect() to 10.221.10.102 port 80 (#0)
1024070837|scep |1|00|CURLINFO   :   Trying 10.221.10.102...
1024070837|scep |1|00|CURLINFO   : Connected to 10.221.10.102 (10.221.10.102) port 80 (#0)
1024070837|scep |1|00|HEADER_OUT : GET /certsrv/mscep/mscep.dll?operation=GetCACaps&message=CACapsIdentifier  HTTP/1.1
1024070837|ssps |4|00|sspsPktChanTxAddMRHubData: actual time newer than estimated time by 20822192ns (limit 20000000ns). Assuming discontinuity and correcting MessagesMissed:1
1024070837|scep |1|00|HEADER_IN  : HTTP/1.1 200 OK
1024070837|scep |1|00|HEADER_IN  : Content-Type: text/plain
1024070837|scep |1|00|HEADER_IN  : Server: Microsoft-IIS/8.5
1024070837|scep |1|00|HEADER_IN  : X-Powered-By: ASP.NET
1024070837|scep |1|00|HEADER_IN  : Date: Wed, 24 Oct 2018 14:08:31 GMT
1024070837|scep |1|00|HEADER_IN  : Content-Length: 34
1024070837|scep |1|00|HEADER_IN  :
1024070837|scep |1|00|CURLINFO   : Connection #0 to host 10.221.10.102 left intact
1024070837|scep |4|00|ScepCurlInterface:: connection successful with scep server : 10.221.10.102
1024070837|scep |0|00|ScepCurlInterface::CurlRequest result 0 httpResCode 200
1024070837|scep |1|00|CURLINFO   : Closing connection #0
1024070837|scep |4|00|ScepCurlInterface::CurlRequest success  result 0 httpResCode 200
1024070837|scep |1|00|scepLIB: valid response from server
1024070837|scep |5|00| ScepState::onGetCACaps complete PkiStatus0
1024070837|scep |1|00|scepCACertData.caCertFile /data/polycom/ffs0/scepcafile
1024070837|scep |0|00|scepLIB: SCEP_OPERATION_GETCA dflag 0
1024070837|scep |0|00|scepLIB: scep msg: /certsrv/mscep/mscep.dll?operation=GetCACert&message=CAIdentifier
1024070837|scep |2|00|scepLIB: Use CURL for HTTP(s) ? 0x56c820
1024070837|scep |0|00|ScepCurlInterface::CurlRequest
1024070837|scep |0|00|ScepCurlInterface::CurlRequest m_bIsSecure: 0
1024070837|scep |0|00|[CurlRequest]configured values SCEPUsername:
1024070837|scep |0|00|[CurlRequest] concatURL url:http://10.221.10.102/certsrv/mscep/mscep.dll?operation=GetCACert&message=CAIdentifier
1024070837|scep |1|00|[connectToProxy] WPAD feature is disabled for mode '3'
1024070837|scep |3|00|[connectToProxy] Using DIRECT proxy for mode '3'
1024070837|scep |4|00|[CurlRequest] Proxy connect result '0'
1024070837|scep |0|00|[CurlRequest] hostPort:80
1024070837|scep |0|00|[CurlRequest]scephttpusername and scephttpuserpassword NOT configured
1024070837|scep |0|00|[CurlRequest]scephttpusername and scephttpuserpassword NOT configured
1024070837|scep |1|00|CURLINFO   : About to connect() to 10.221.10.102 port 80 (#0)
1024070837|scep |1|00|CURLINFO   :   Trying 10.221.10.102...
1024070838|scep |1|00|CURLINFO   : connected after 1 seconds
1024070838|scep |1|00|CURLINFO   : Connected to 10.221.10.102 (10.221.10.102) port 80 (#0)
1024070838|scep |1|00|HEADER_OUT : GET /certsrv/mscep/mscep.dll?operation=GetCACert&message=CAIdentifier  HTTP/1.1
1024070838|scep |1|00|HEADER_IN  : HTTP/1.1 200 OK
1024070838|scep |1|00|HEADER_IN  : Content-Type: application/x-x509-ca-ra-cert
1024070838|scep |1|00|HEADER_IN  : Server: Microsoft-IIS/8.5
1024070838|scep |1|00|HEADER_IN  : X-Powered-By: ASP.NET
1024070838|scep |1|00|HEADER_IN  : Date: Wed, 24 Oct 2018 14:08:31 GMT
1024070838|scep |1|00|HEADER_IN  : Content-Length: 3816
1024070838|scep |1|00|HEADER_IN  :
1024070838|scep |1|00|CURLINFO   : Connection #0 to host 10.221.10.102 left intact
1024070838|scep |0|00|ScepCurlInterface::CurlRequest result 0 httpResCode 200
1024070838|scep |1|00|CURLINFO   : Closing connection #0
1024070838|scep |4|00|ScepCurlInterface::CurlRequest success  result 0 httpResCode 200
1024070838|scep |2|00|scepLIB: valid response from server
1024070838|scep |2|00|scepLIB: certificate written as /data/polycom/ffs0/scepcafile0.crt
1024070838|scep |2|00|scepLIB: certificate written as /data/polycom/ffs0/scepcafile1.crt
1024070838|scep |2|00|scepLIB: certificate written as /data/polycom/ffs0/scepcafile.crt
1024070838|scep |2|00|scepLIB: write_ca_ra scep - success
1024070838|scep |4|00| ScepInit::onGetCA complete PkiStatus0
1024070838|scep |0|00|ScepEventHandler Event 4
1024070838|scep |1|00|ScepEventHandler Event GETCA_RA_SUCCESS
1024070838|scep |4|00|ScepInit::onGetCASuccess SCEP Enrollment start
1024070838|scep |0|00|scepCertInstall CA /data/polycom/ffs0/scepcafile.crt

How can I add an 802.1x EAP-PEAPv0/MSCHAPv2 Certificate or use Dot.1x?

Do Poly phones support Windows SCEP Network Device Enrollment Service certificate provisioning?

A Poly Employee provides step-by-step instructions how to set this up > here <, > here < and > here <

Log on to http://<IP or FQDN>/certsrv/mscep_admin and get the enrolment challenge password

On a compatible Poly Phone navigate to Settings > SCEP > SCEP Settings

SCEP URL would be http://<IP or FQDN>/certsrv/mscep/mscep.dll

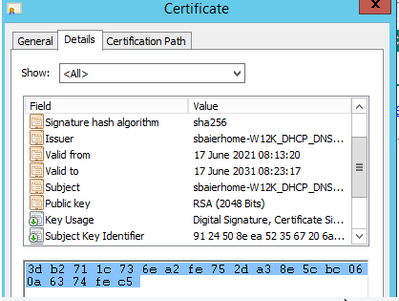

CA Fingerprint is taken from Root CA via http://<IP or FQDN>/certsrv/certcarc.asp > Download a CA certificate > Download CA certificate > Open File > Details > Thumbprint
Copy the Fingerprint and use for Example Notepad++ to remove the spaces and change to capital characters
Challenge Password is from http://<IP or FQDN>/certsrv/mscep_admin as outlined above aka EFF11A9C832952AC
Common Name, Organization, Email Address, State, and Country must be supplied or the SCEP process does not start

------------------------------------------------
