The HP Community is where owners of HP products, like you, volunteer to help each other find solutions.
HP Recommended

Poly Edge E, CCX Phones, VVX Business Media Phones, SoundStation IP, SoundPoint IP, and the Poly Trio RealPresence phone range support DHCP Option 60 Data Format.



Current software Versions utilize the ASCII String format


The => Technical Bulletin 54041 Using DHCP Vendor Identifying Options <= details the actual functionality.

In addition, we detail what happens on a network level in detail >here<


These DHCP Vendor Options can be used as an example to provision different hardware platforms with a separate provisioning server.


Poly Product  Vendor Option Name Special Note

CCX350 Poly-CCX350
CCX400 (UC Software 6.2.11 or later) Poly-CCX400
CCX500 Poly-CCX500
CCX505 Poly-CCX505
CCX600 Poly-CCX600
CCX700 Poly-CCX700

Edge E 100 Poly-EdgeE100
Edge E 220 Poly-EdgeE220
Edge E 300 Poly-EdgeE300
Edge E 320 Poly-EdgeE320
Edge E 350 Poly-EdgeE350
Edge E 400 Poly-EdgeE400
Edge E 450 Poly-EdgeE450
Edge E 500 Poly-EdgeE500
Edge E 550 Poly-EdgeE550

Edge B10 Poly Edge B10  Will ignore Sub Option 43
Edge B30 Poly Edge B20  Will ignore Sub Option 43
Edge B30 Poly Edge B30  Will ignore Sub Option 43

VVX501 Polycom-VVX501
VVX601 Polycom-VVX601
VVX101 Polycom-VVX101
VVX150 Polycom-VVX150
VVX201 Polycom-VVX201
VVX250 Polycom-VVX250
VVX301 Polycom-VVX301
VVX311 Polycom-VVX311
VVX350 Polycom-VVX350
VVX401 Polycom-VVX401
VVX411 Polycom-VVX411
VVX450 Polycom-VVX450

VVX D230 Poly-VVX-D230
Poly Rove B DECT IPDECT-V2/80.03.0009 (MAC=64167FF4C9ED; SER= 00000; HW=4) Changes depending on SW etc. Use a Wildcard

Polycom Trio 8300 Poly-Trio8300
Polycom Trio 8800 Polycom-Trio8800
Polycom Trio 8500 Polycom-Trio8500
Polycom RealPresence Trio Visual+ Polycom-TrioVisualPlus
Polycom Trio C60 Poly-TrioC60
SoundStation IP 5000 Polycom-SSIP5000
SoundStation IP Duo Polycom-SSDuo

Legacy Poly Product  Vendor Option Name Special Note

VVX1500 Polycom-VVX1500
VVX300 Polycom-VVX300
VVX310 Polycom-VVX310
VVX400 Polycom-VVX400
VVX410 Polycom-VVX410
VVX500 Polycom-VVX500
VVX600 Polycom-VVX600
VVX D60 udhcp 1.19.4
SoundPoint IP IP300 Polycom-SPIP300
SoundPoint IP IP301 Polycom-SPIP301
SoundPoint IP IP320 Polycom-SPIP320
SoundPoint IP IP321 Polycom-SPIP321
SoundPoint IP IP325 Polycom-SPIP325
SoundPoint IP IP330 Polycom-SPIP330
SoundPoint IP IP331 Polycom-SPIP331
SoundPoint IP IP335 Polycom-SPIP335
SoundPoint IP IP430 Polycom-SPIP430
SoundPoint IP IP450 Polycom-SPIP450
SoundPoint IP IP500 Polycom-SPIP500
SoundPoint IP IP501 Polycom-SPIP501
SoundPoint IP IP550 Polycom-SPIP550
SoundPoint IP IP560 Polycom-SPIP560
SoundPoint IP IP600 Polycom-SPIP600
SoundPoint IP IP601 Polycom-SPIP601
SoundPoint IP IP650 Polycom-SPIP650
SoundPoint IP IP670 Polycom-SPIP670
SoundStation IP 4000 Polycom-SSIP4000
SoundStation IP 6000 Polycom-SSIP6000
SoundStation IP 7000 Polycom-SSIP7000
CX5100 Polycom-CX5100
CX5500 Polycom-CX5500



  1. In order to add this a new DHCP Vendor Class needs to be created:

    SteffenBaierUK_7-1709206102721.pngSteffenBaierUK_8-1709206126972.pngSteffenBaierUK_9-1709206144696.pngSteffenBaierUK_10-1709206165240.png

  2. The Display Name and Description field values can be whatever you want, but the ASCII data field value is case sensitive and must be entered as shown above




NOTE: In the above example we use a simple server. If Clarity Manager or an older RPRM is being used the URL should be https://username:password@IP_or_FQDN/ucservice (or if the default PlcmSpIP username or password is used this is not required)

If the Username or Password includes an @ symbol please replace this with %40








Troubleshooting:



The Phone sends a DHCP Discover including the DHCP Vendor Option 60




The DHCP Server sends the DHCP Offer containing the Vendor Specific Option 43 including the above added Option 161 for the Provisioning Server.






Option 2 Deploying DHCP policies


Another option would be to use DHCP Policies since Windows 2012 server. More details can be found >here<



  1. Create a new Policy:




  2. Assign a Name and a description:




  3. Configure the Conditions:




  4. Add the 0004f2 Mac address Range:




  5. Additionally add the 64167f range

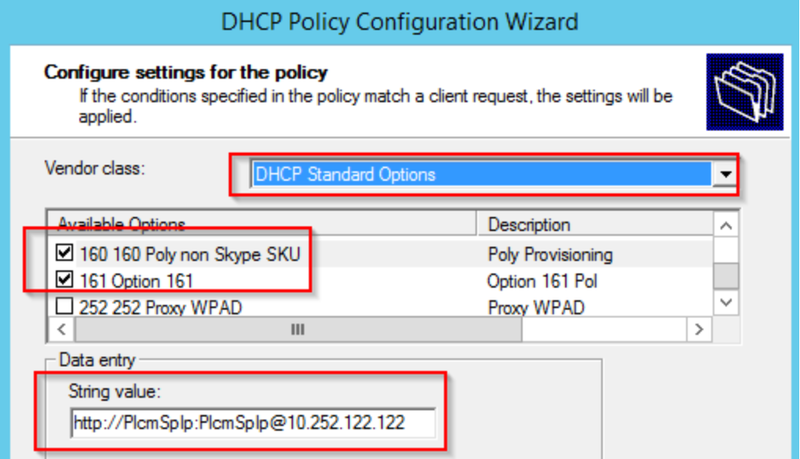

  6. Set the Option 160 and 161 to the provisioning server:




  7. And verify the settings:




NOTE: This feature will be made configurable, based on the setting for DHCP Option 60. If DHCP Option 60 is set to "String", DHCP option 43 will be requested and sub-options returned within option 43 will be read, otherwise, option 43 will not be requested or read.



When option 43 is read, any sub-options contained therein will take precedence over options received outside of option 43.

------------------------------------------------
