Hello all,



below configuration will show how to enable a "Share Call Appearance" and a Busy Lamp Filed for a BroadSoft account.



BroadSoft:

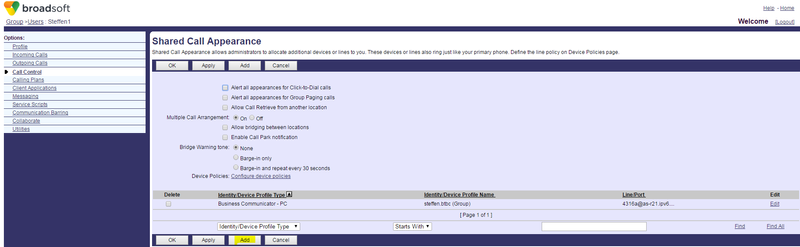

  • Call Control > Shared Call Appearance


  • The “Add” Option lets you add an additional Shared Identity. In my case it is 4316a




Phone configuration:





<test feature.dect.enabled="1"
reg.1.address="4316"
reg.2.address="4316a"
reg.1.displayName="4316"
reg.2.displayName="4316"
reg.1.auth.userId="Steffen1"
reg.2.auth.userId="Steffen1"
reg.1.auth.password="polycom"
reg.2.auth.password="polycom"
reg.1.terminationType="VVX"
reg.2.terminationType="DECT"
reg.1.type="shared"
reg.2.type="shared"
VVXD60.Handset.1.outGoingLineIndex="2"
reg.1.server.1.address="as-r21.ipv6.polycom.com"
reg.2.server.1.address="as-r21.ipv6.polycom.com"
VVXD60.Handset.1.line.1="0"
VVXD60.Handset.1.line.2="2" />



  • The reg.1.address is for the main VVX phone

  • The reg.2.address is for the Polycom D60

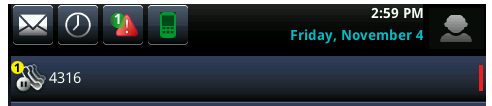

The VVX D60 will show the registration:








The VVX view when D60 is busy:






The D60 View:






The VVX view when D60 has a call on hold:






The D60 View:






The VVX with a Busy Lamp Field / BLF (attendant.uri😞






NOTE: A call placed to the VVX and D60 and answered on one of the Handsets will show a missed call on the other handset



------------------------------------------------
