Hi,

Wondering if someone can help me locate the Samsung NVMe ssd hard drive. I open this desktop, checked the manual for a guide http://h10032.www1.hp.com/ctg/Manual/c04897695.pdf



and still can't find it.



However, the drive appears when I boot up as I see both the 256GB ssd hard drive and the Sata 2tb drive.



thank you

Category:
1 ACCEPTED SOLUTION

Accepted Solutions

‎12-12-2022 09:25 PM - edited ‎12-12-2022 09:28 PM

HP Recommended

@asfasdfasf,

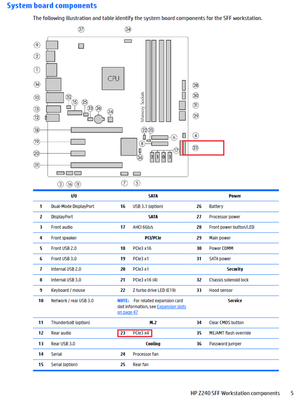

The HP Z240 SFF was one of my legacy HP desktop upgrade projects: Solved: Upgrading HP Z240 Desktop Workstation SFF - HP Support Community - 8427878, and the M.2 NVMe Gen3 x4 SSD slot is located here:






Right beneath the black M.2 NVMe SSD heatsink that came with your HP Z240 SFF:






Hope this was helpful.



Kind Regards,



NonSequitur777

View solution in original post

2 people found this reply helpful
Was this reply helpful? Yes No
4 REPLIES 4

‎12-12-2022 03:53 PM

HP Recommended

Looks like it is sitting off the edge or the board






I am a volunteer and I do not work for, nor represent, HP
If you think this reply was helpful, please mark it as so or as a solution.. Thank You!
Was this reply helpful? Yes No

‎12-12-2022 07:59 PM

HP Recommended

I have uploaded some pictures. where would the SSD be ?




Was this reply helpful? Yes No

‎12-12-2022 09:25 PM - edited ‎12-12-2022 09:28 PM

HP Recommended

@asfasdfasf,



The HP Z240 SFF was one of my legacy HP desktop upgrade projects: Solved: Upgrading HP Z240 Desktop Workstation SFF - HP Support Community - 8427878, and the M.2 NVMe Gen3 x4 SSD slot is located here:






Right beneath the black M.2 NVMe SSD heatsink that came with your HP Z240 SFF:






Hope this was helpful.



Kind Regards,



NonSequitur777

2 people found this reply helpful
Was this reply helpful? Yes No

‎12-13-2022 07:05 AM

HP Recommended

thank you very much!  I appreciate your response.
