‎03-21-2019 11:32 AM

HP Recommended
Product: HP 15 BS 658 tx
Operating System: FreeDOS

I have m.2 slot in my laptop. M2x3 is written on that slot.

Can i use Samsung 970 Evo M.2 NVMe SSD as boot drive in my laptop ?

1 person had the same question
1 ACCEPTED SOLUTION

Accepted Solutions

‎03-21-2019 01:49 PM

HP Recommended

No. SATA M.2 only and possibly not even that.



Here is the Service manual:



Manual

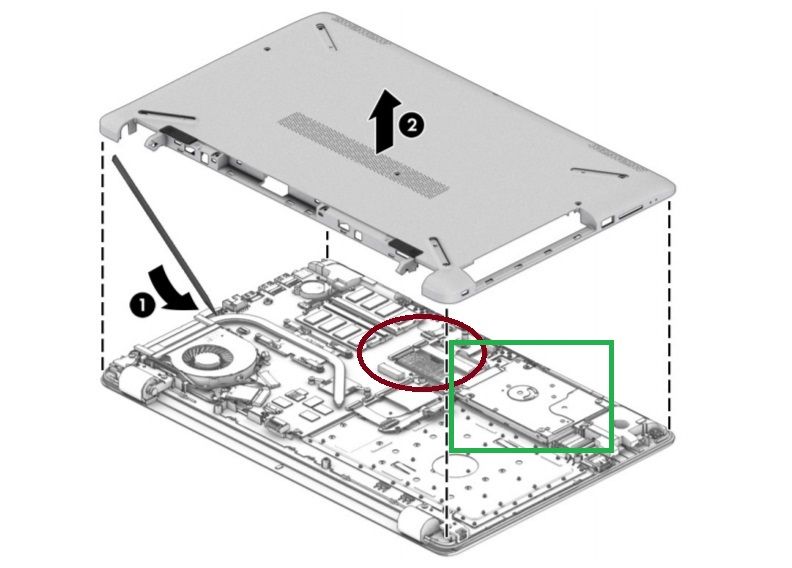

Open it up and you see this:



red circle = M.2 slotred circle = M.2 slot



Open it up before you make any purchase of upgrade parts. In some cases this slot was not actually soldered onto the motherboard at the factory.



Post back with any more questions and please accept as solution if its the info you needed.

View solution in original post

Was this reply helpful? Yes No
2 REPLIES 2

‎03-21-2019 01:49 PM

HP Recommended

No. SATA M.2 only and possibly not even that.



Here is the Service manual:



Manual



Open it up and you see this:



red circle = M.2 slotred circle = M.2 slot



Open it up before you make any purchase of upgrade parts. In some cases this slot was not actually soldered onto the motherboard at the factory.



Post back with any more questions and please accept as solution if its the info you needed.

Was this reply helpful? Yes No

‎03-22-2019 07:15 AM

HP Recommended

But Sir , SATA M.2 have 2 (M+B key) notch and slot on my motherboard is single notch type(M key).

Will SATA M.2 SSD Fit Physically in that slot ?



As per the Service Manual Max. Speed is 535MB/s,which is the Speed of SATA M.2,so if I use use M.2 NVMe drive then what happen ?

Was this reply helpful? Yes No
