Product: Zbook 15 g3
Operating System: Microsoft Windows 10 (64-bit)

I hava a hp zbook 15 g3

Can I update my graphics card?

From Amd firepro w5170m to any graphics card above

1 ACCEPTED SOLUTION

Accepted Solutions

‎11-01-2019 09:27 AM

HP Recommended

I happen to have a Zbook 15 G3 and yes the video card is removeable and theoretically upgradeable. The BIOS limits what you can install and your AMD video card has a heatsink assembly that is slightly different than an nVidia. What would you like to try to install?

View solution in original post

Was this reply helpful? Yes No
5 REPLIES 5

‎11-01-2019 09:27 AM

HP Recommended

I happen to have a Zbook 15 G3 and yes the video card is removeable and theoretically upgradeable. The BIOS limits what you can install and your AMD video card has a heatsink assembly that is slightly different than an nVidia. What would you like to try to install?

Was this reply helpful? Yes No

‎11-01-2019 10:47 AM

HP Recommended
  • I want to try amd fierpro w7170m OR It is possible to show me the higher categories of graphics card available for my zbook  15 g3

Was this reply helpful? Yes No

‎11-01-2019 12:06 PM

HP Recommended

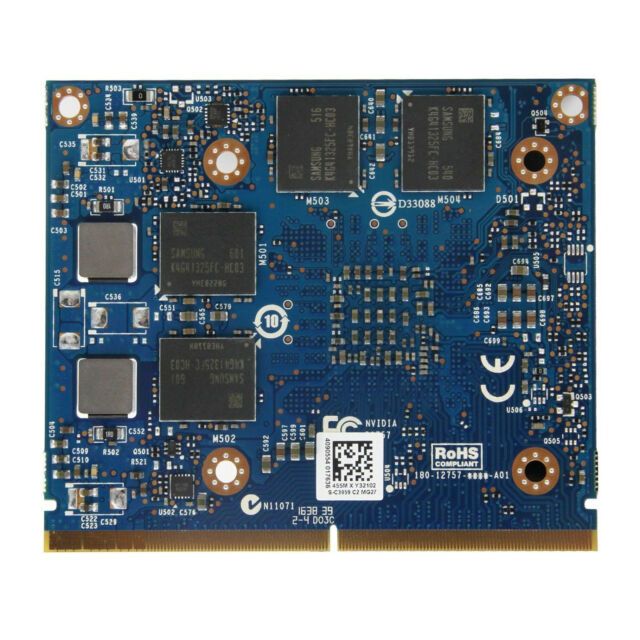

This is what I have in mine. nVidia M2000M:



M2000M MXM video cardM2000M MXM video card



Firepro W5170M you have now:



W5170MW5170M



W7170M



W7170MW7170M



The W7170M is larger and likely will not fit.

Was this reply helpful? Yes No

‎11-02-2019 08:04 AM

HP Recommended

What is the difference between the piece number 821742-001 vs 848263-001

Is it possible to switch the same as the motherboard???

Tags (1)
Was this reply helpful? Yes No

‎11-02-2019 08:13 AM

HP Recommended

The video card is removeable and replaceable. Here is the Service Manual:



Manual



If you go from an AMD card to nVidia you need a different heatsink. M2000M is a bit more powerful than the AMD card you have now:



https://technical.city/en/video/Quadro-M2000M-vs-FirePro-W5170M





Was this reply helpful? Yes No
