Maximum RAM supported by HP 15-ac005ur

[George259]

I wanted to upgrade ram on my laptop HP 15-ac005ur. But i don't know the maximum memory supported by the system.

So can anybody tell me maximum ram size and what type of ram i should buy ?

[Paul_Tikkanen]

Hi:

Your notebook must have a Pentium or Celeron processor, because according to the Crucial memory report for your notebook, it has one memory slot and supports up to 1 x 8 GB of DDR3L-1600 memory.

HP - Compaq HP 15-ac005ur | Memory RAM & SSD Upgrades | Crucial.com

That means you would have to remove the 4 GB memory chip and replace it with an 8 GB memory chip.

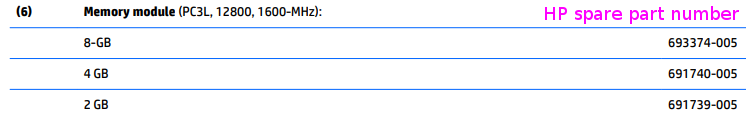

Below is the link to the service manual, where you can find the memory upgrade info in chapter 1 and the memory removal and replacement procedure in chapter 6.

HP Notebook PC (Intel)HP 250 G4 Notebook PCHP 256 G4 Notebook PC Maintenance and Service Guide

[ub6424]

Open your notebook and check if you have 1 or 2 memory slots.

Maintenance and Service Guide

Page 2 Chapter 1 Product description

Page 20 Chapter 3 Illustrated parts catalog

[ub6424]

The old hand @Paul_Tikkanen was faster again. Sorry, I have not seen that you have already answered. I was still writing... Thanks for your explanation and help 😊

At least we complemented each other...

[George259]

I removed the cover, there are 2 memory slots in the laptop, in 1 slot there is a 4 GB module. AIDA64 shows that the maximum amount of memory is 16 GB. If I take this module out and install 2 x 8gb modules will the laptop work?

[ub6424]

I checked bios revision history, nothing new about memory.

https://support.hp.com/us-en/drivers/selfservice/swdetails/hp-15-ac000-notebook-pc-series/7771404/mo...

- You should follow the HP service manual, so maximum 8 GB.

- ( You could try 2x 8GB, but there is no guarantee that it will work )

[Paul_Tikkanen]

Yes, if it has 2 memory slots, it will support 16 GB of memory.

What model processor does it have?

[George259]

Thanks!

[George259]

Pentium 3825U

[Paul_Tikkanen]

Yes, that particular Pentium processor will support 2 x 8 GB of memory.

Intel Pentium Processor 3825U 2M Cache 1.90 GHz Product Specifications

But the Pentium N3540 that some of the 15-ac0xx notebooks come with will not and there is only one memory slot for those models,

That means the Crucial memory report is incorrect for your exact model.

Intel® Pentium® Processor N3540
