HP Envy 15-ep0170ND
Microsoft Windows 10 (64-bit)

Hello, I have the HP G2 Docking station 120W and I cannot charge my Envy laptop with it while I am plugged into it.

What causes this issue? I tried already with a Phone charger to try and charge it via USB C, but sadly I don't have any other USB C charging cables to try. Can anybody give me a solution perhaps?



If I need to provide any other things please say I will provide them 🙂

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

@NormaalBart



I don't think this is going to work.

It is not the port (which is most likely working correctly else nothing would connect / work) .

It is not the docking station.



The power requirements to charge the computer exceed what the USB-C port is able to provide.

The user guide explains that the port can charge small items (watch, phone).



Service and Maintenance Guide

Support for 200 W and 150 W HP Smart AC adapters (PFC, slim, 4.5 mm)



AC Adapter:

200 W HP Smart AC adapter (PFC, slim, 4.5 mm)           L00818-850

150 W HP Smart AC adapter (PFC, slim, 4.5 mm)           L32661-001

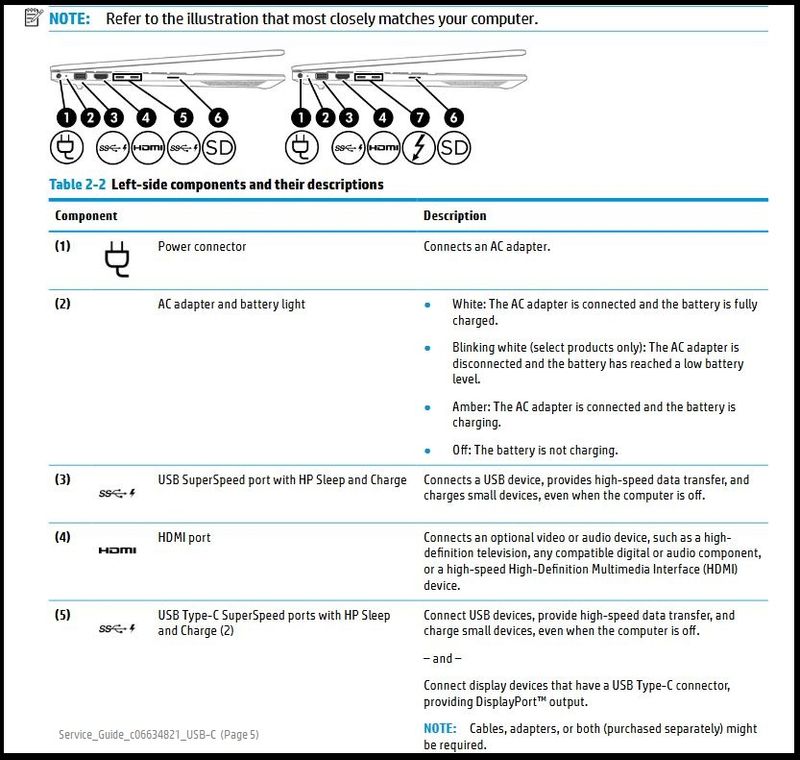

 User Guide

Page 5

Items 3 and 5



Service_Guide_c06634821_USB-CService_Guide_c06634821_USB-C





Device Home Page - References and Resources – Learn about your Device - Solve Problems

NOTE:  Content depends on device type and Operating System

Categories:  Alerts, Warranty Check, HP Drivers / Software and BIOS, How-to Videos, Bulletins/Notices, How-to Documents, Troubleshooting, User Guides / Manuals, Service and Maintenance Guide (Replacement Parts and Procedures), Product Information (Specifications), more

When the website support page opens, Select (as available) a Category > Topic > Subtopic

HP ENVY Laptop - 15-ep0170nd



Thank you for participating in our HP Community.

We are a world community of volunteers dedicated to supporting HP technology

Click Thumbs Up to say Thank You.

Answered? Click "Accept as Solution" to help others find it.





Dragon-Fur

View solution in original post
