‎06-30-2020 11:29 AM - edited ‎06-30-2020 11:30 AM

HP Recommended
Product: HP OMEN 17
Operating System: Microsoft Windows 10 (64-bit)

Hello. I want to replace screws in my laptop but I don't know what size are they .. It says on the video that they 3mm P1 but Is that M2 or M2,5 or M3 ?  Have a look on picture below .. Thank you


1 ACCEPTED SOLUTION

Accepted Solutions

‎06-30-2020 12:21 PM

HP Recommended

Hi,

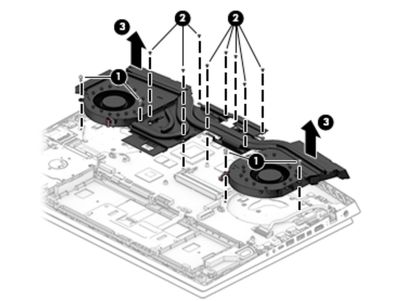

So the screws in the pictures are

2. indicates eight Phillips M2.0 × 3.0 screws

1. indicates two Phillips M2.0 × 5.0 screws

fans cb00000.JPG

You can see on pages 44-45 of service manual

http://h10032.www1.hp.com/ctg/Manual/c06367528



Hope it helps,

David

Please click on thumbs up fro thanks

Please click on accept as solution if answered your question

View solution in original post

Was this reply helpful? Yes No
3 REPLIES 3

‎06-30-2020 12:21 PM

HP Recommended

Hi,

So the screws in the pictures are

2. indicates eight Phillips M2.0 × 3.0 screws

1. indicates two Phillips M2.0 × 5.0 screws

fans cb00000.JPG

You can see on pages 44-45 of service manual

http://h10032.www1.hp.com/ctg/Manual/c06367528



Hope it helps,

David

Please click on thumbs up fro thanks

Please click on accept as solution if answered your question

Was this reply helpful? Yes No

‎06-30-2020 12:26 PM

HP Recommended

cheers mate !

Was this reply helpful? Yes No

‎06-30-2020 12:30 PM

HP Recommended

You're welcome.



Take care,

David
